Product Overview

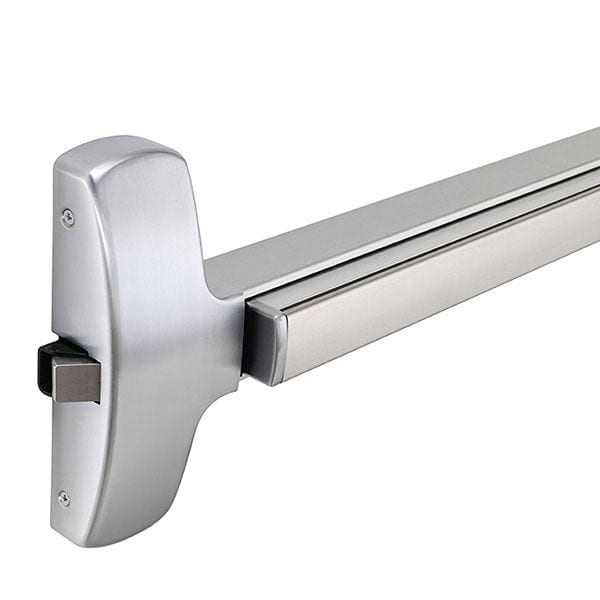

Falcon 25-R-EO Rim Exit Device, Exit Only, Panic Rated
The perfectly simple, tougher than nails, costs less than you think, fits anywhere rim exit device
Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

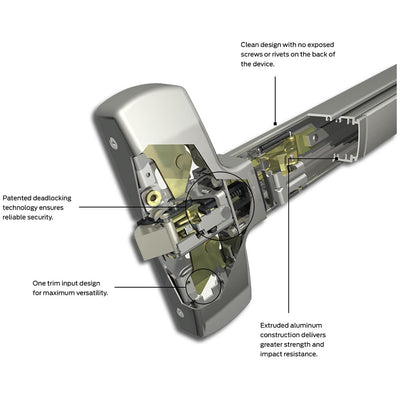

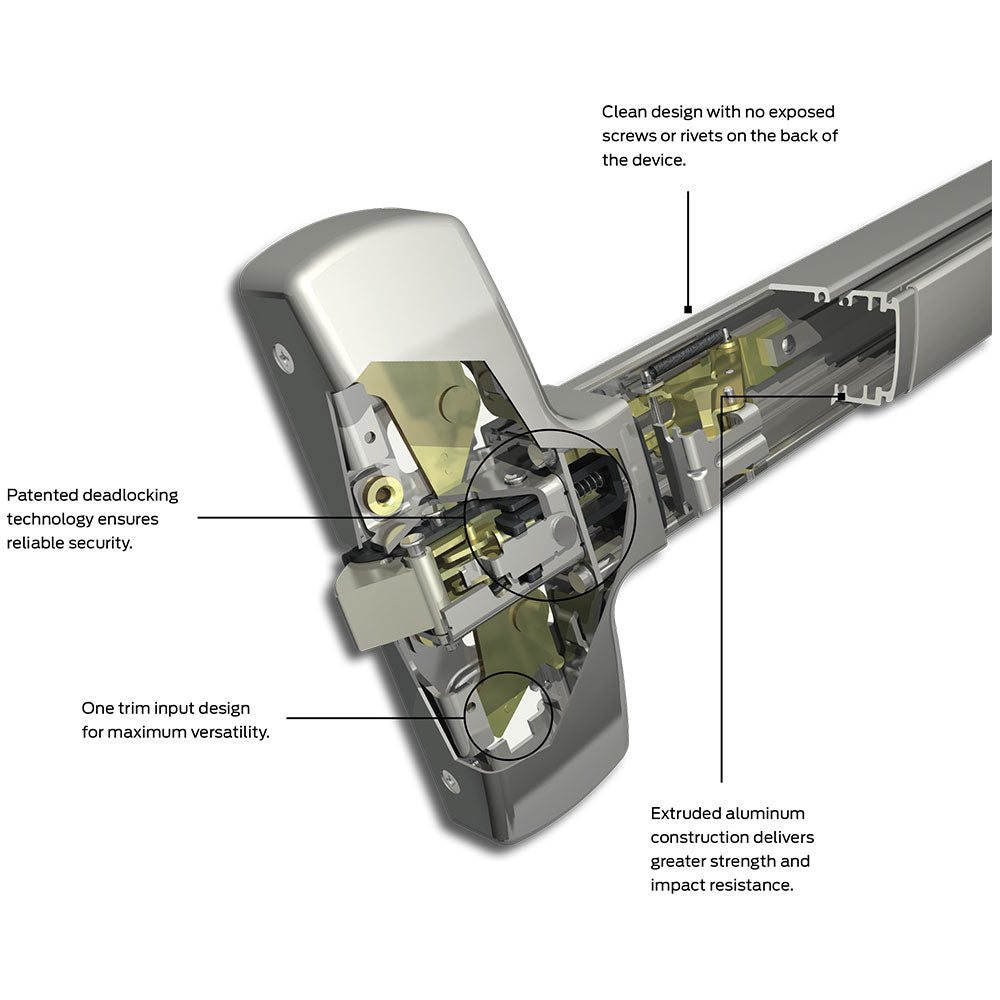

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.
- EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
- For use with single doors and double doors with a mullion
- Stock Sizes: 3' and 4' - Cut to size in the field
- Deadlocking latchbolt standard
- Formerly known as Monarch 25R
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Falcon |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4″ Thick Metal or Wood Doors |
| Fasteners |
All mounting screws are concealed sheet metal screws and machine screws standard |
| Finish |
Anodized AluminumSatin ChromeBright ChromeBlackStainless SteelSatin BronzeSatin BrassBright BrassDark BronzeSatin Nickel |
| Finishes |
US4 (606) Satin BrassUS3 (605) Bright BrassUS28 (628) Anodized Aluminum619 Satin NickelUS10 (612) Satin BronzeUS26 (625) Bright ChromeUS32D (630) Satin Stainless Steel313AN Anodized Dark BronzeUS19 Flat BlackUS26D (626) Satin Chrome |
| Fire Rating |
None |
| Hand |
Non-handed |
| Latchbolt |
Stainless steel 3/4" throw - Deadlocking |

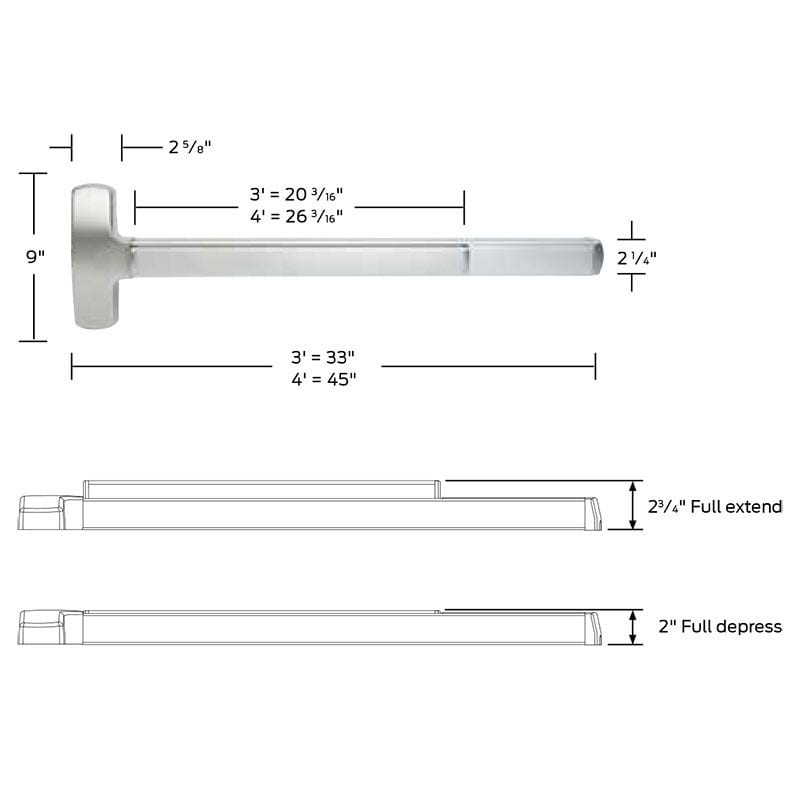

| Length |
3'0" (2'8" to 3'0" Doors)4'0" (3'4" to 4'0" Doors) |
| Minimum Stile Width |
4" w/ Standard Roller Strike |
| Projections |
2-3/4" maximum 2" dogged |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard |
| Usage |
Heavy Duty |
