Falcon

Falcon F-25-R-EO Fire-Rated Rim Exit Device

$664.22
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified, Made in USA
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • UL Listed Fire Exit Hardware, 3-Hour Rated

Available Options:

Clear

Product Overview

Falcon F-25-R-EO Rim Exit Device, Fire-Rated, Exit Only

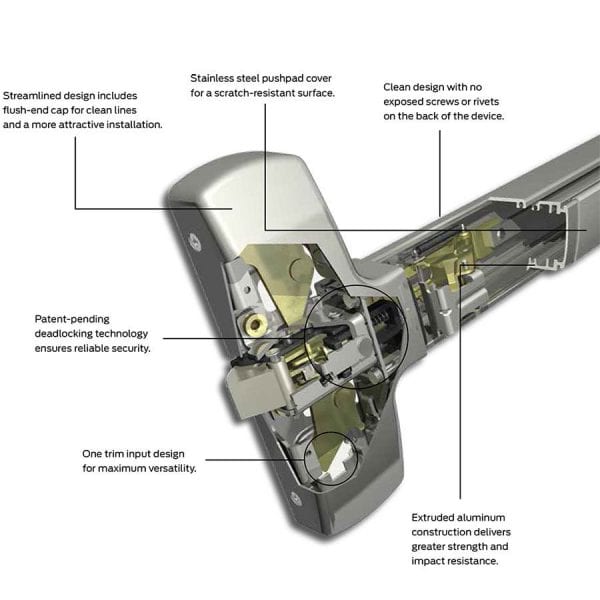

The Falcon F-25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design. The Falcon F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
  • For use with single fire doors and double fire doors with a mullion
  • Stock Sizes: 3' and 4' - Cut to size in the field
  • Deadlocking latchbolt standard
  • UL listed fire hardware, A or B label fire-rated (3 Hours)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

None
Door Applications

1-3/4″ Thick Fire-Rated Doors
Fasteners

All mounting screws are concealed sheet metal screws and machine screws standard
Finish

Bright ChromeBlackStainless SteelSatin BrassBright BrassDark BronzeSatin BronzeAnodized AluminumSatin ChromeSatin Nickel
Finishes

US4 (606) Satin BrassUS3 (605) Bright BrassUS28 (628) Anodized Aluminum619 Satin NickelUS10 (612) Satin BronzeUS26 (625) Bright ChromeUS32D (630) Satin Stainless Steel313AN Anodized Dark BronzeUS19 Flat BlackUS26D (626) Satin Chrome
Fire Rating

UL listed A or B label Fire-Rated (3 Hours)
Hand

Non-handed
Latchbolt

Stainless steel 3/4" throw - Deadlocking
Length

3'0" (2'8" to 3'0" Doors)4'0" (3'4" to 4'0" Doors)
Minimum Stile Width

4" w/ Standard Roller Strike
Projections

2-3/4"
Stile Type

Wide (Standard)
Strike

299F fire-rated roller strike
Usage

Heavy Duty
Falcon_25-R_F-25-R_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
