Command Access MLRK1-FAL25 Motorized Latch Retraction Kit for Falcon 24/25 Series Exit Devices

$359.95
This item ships FREE! Usually Ships:  2-3 Business Days
  • Motor-driven electrified latch retraction kit
  • For field installation on Falcon 24/25 Series exit devices
  • Can upgrade both 36" and 48" devices

Product Overview

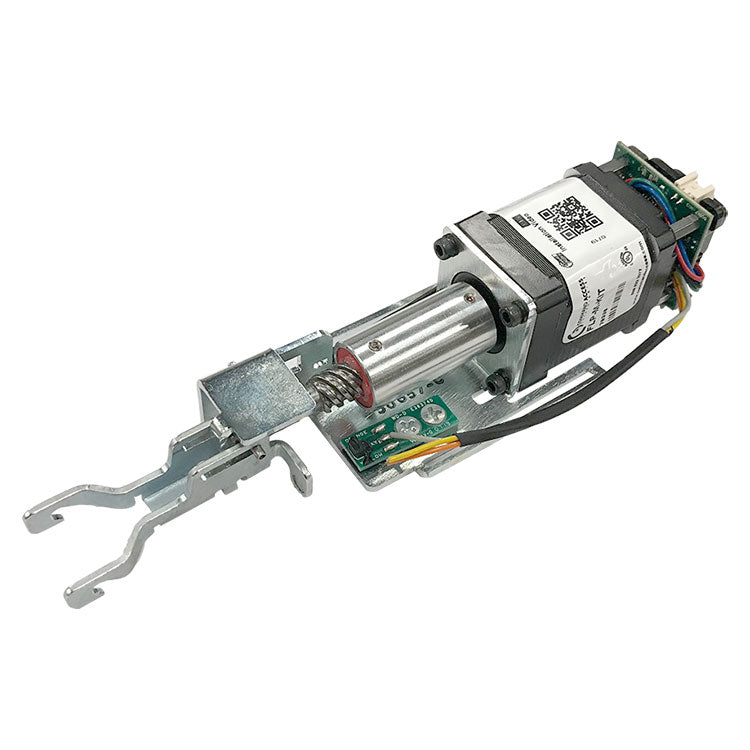

Command Access MLRK1-FAL25 Motorized Latch Retraction Kit, for Falcon 24/25 Series Exit Devices (Field Installation)

The MLRK1-FAL25 is a cost-effective and straightforward way to upgrade your Falcon 24/25 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-FAL25 is a practical and cost-effective way to convert a mechanical Falcon 24/25 series device to an electrified latch pullback device. Our easy-to-install motor -driven kit installs in a matter of seconds with no drilling or screws required, a true “drop-in” kit! PTS allows for an easy post-installation adjustment of the latch/ latches. A built-in REX switch is standard on all units! Last but not least, features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

  • Works with all Falcon 24 and 25 Series Devices
  • Fast, Quite, Smooth & Strong!
  • Includes built-in request to exit on board
  • Patent pending Push to Set (PTS) Technology
  • MM4S Smart Module: On board diagnos- tics with audible feedback for adjustment and power issues
  • Low Current Draw - Field switchable to “High Torque” mode
  • Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
  • UL Listed
  • 3-Year “No Hassle” Warranty

Specifications:

  • Voltage Range – 24 TO 28 VDC
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard - average current peak: 900MA, average current hold: 215MA
  • PTS adjustment - approx. 1/4"
  • Wire Run: 300' with 18ga wire
  • Cutdown details: 36” - 2”, 48” - 8”
  • Request to Exit (REX) Built-in to all Units

MLRK1-Codes

Brand

Command Access
Buy American Act Compliance

Meets BAA - Buy American Act
Compatible Devices

Falcon 24/25 Series
Part Type

Electric Latch Retraction Kit
