Falcon

Falcon 25-V-EO Surface Vertical Rod Exit Device

$780.29
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • Streamlined Design and Clean Lines

Available Options:

Clear

Product Overview

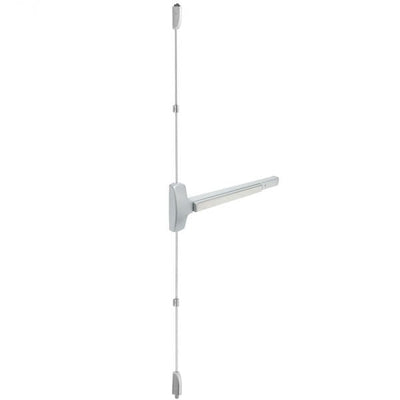

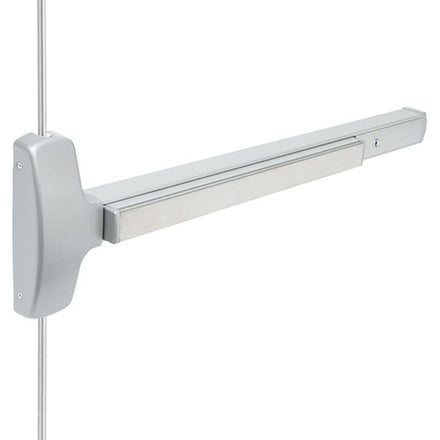

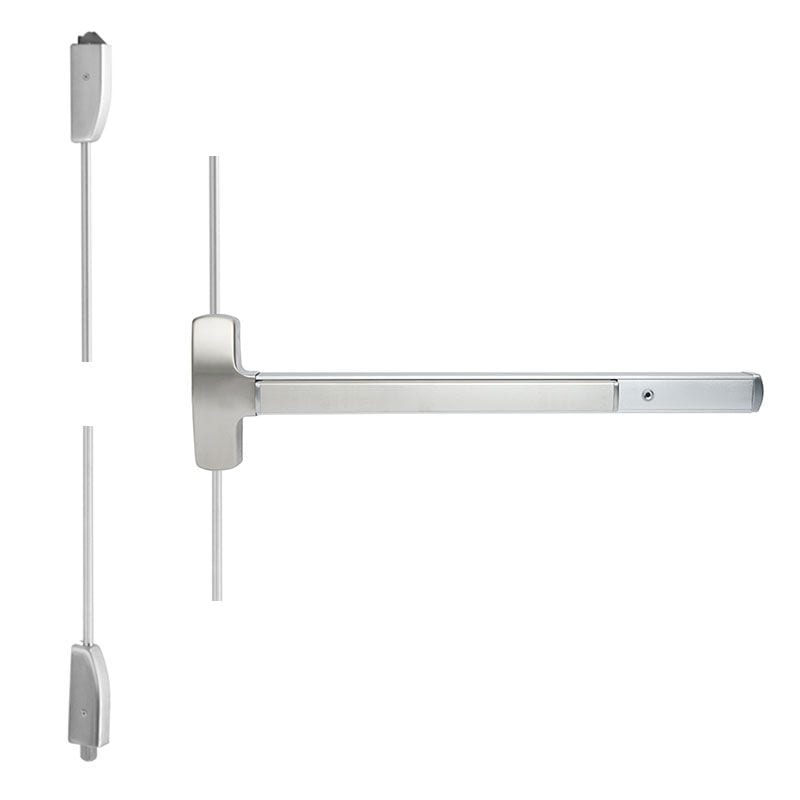

Falcon 25-V-EO, 25 Series Exit Device, Surface Vertical Rod, Exit Only

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)
  • Deadlocking top latch standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4" maximum projection, 2" dogged
  • Stock Sizes: 3' x 7' and 4' x 7' - Cut to size in field

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Applications

1-3/4″ Thick Metal or Wood Doors
Finish

Satin BrassBright BrassDark BronzeAnodized AluminumSatin ChromeSatin BronzeBright ChromeBlackStainless SteelSatin Nickel
Finishes

US15 (619) Satin Nickel313AN Anodized Dark BronzeUS19 Flat BlackUS4 (606) Satin BrassUS3 (605) Bright BrassUS32D (630) Satin Stainless SteelUS10 (612) Satin BronzeUS26 (625) Bright ChromeUS26D (626) Satin Chrome
Fire Rating

None
Handing

Easily Re-handed in the field – Shipped as RHR
Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt 1/2" Throw
Length

3'0" (2'8" to 3'0" Doors)4'0" (3'4" to 4'0" Doors)
Minimum Stile Width

3-1/2"
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strikes

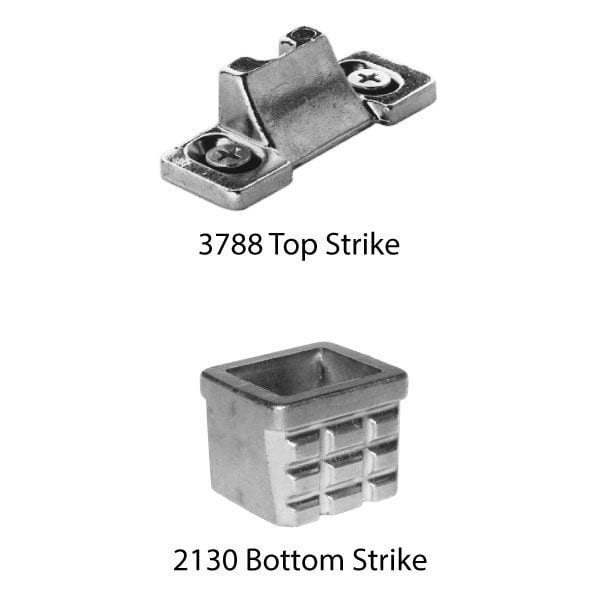

3788 Top Strike is Surface Applied - 2130 Bottom Strike is Mortised into Floor
Usage

Heavy Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0")
