Product Overview

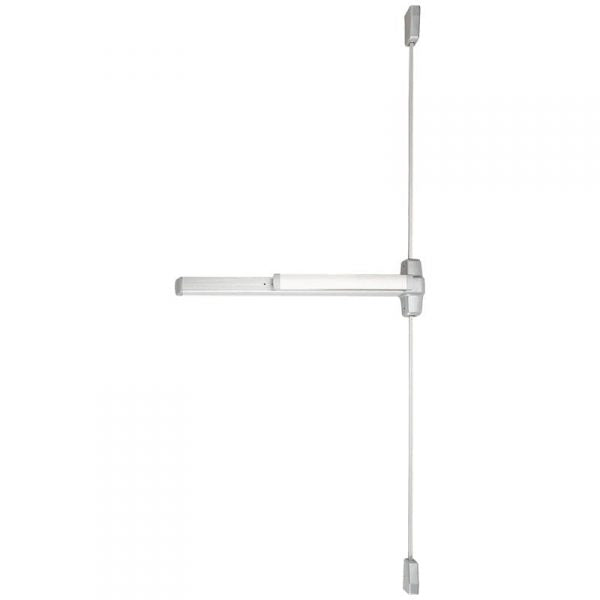

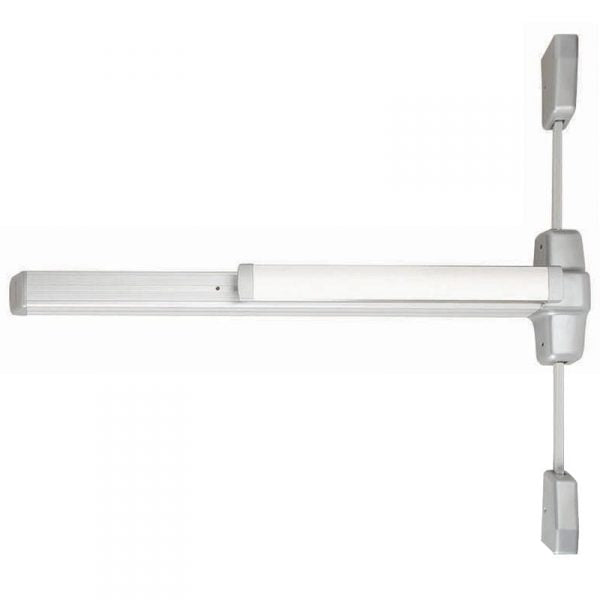

Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 84" Door Height, Exit Only, Less trim, Hex Key Dogging
High-performance, wide stile heavy-duty surface vertical rod exit device for high use and abuse applications
The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- Standard Sizes: 3' x 7', 4' x 7' (extension rod available for door up to 10'0")
- Designed for high use and abuse in institutional applications
- UL listed for panic exit hardware
- Devices are ANSI A156.3 – 2014 Grade 1
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4″ Thick Doors |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Satin BrassBright BrassAnodized AluminumSatin ChromeSatin BronzeBright ChromeBlackDark BronzeSatin Chrome AM (Antimicrobial) |
| Finishes |
313 Duranodic Dark BronzeUS4 (606) Satin BrassUS26 (625) Bright ChromeUS26D (626) Satin ChromeUS26D-AM (626AM) Satin Chrome AntimicrobialUS10 (612) Satin BronzeUS28 (628) Anodized AluminumUS19 (315) Flat BlackUS3 (605) Bright Brass |
| Fire Rating |
None |
| Hand |
Non-handed |
| Latchbolt |
Deadlocking anti-friction top & bottom bolt 5/8" throw |
| Length |
3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strikes |
299 Top Strike 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold |
| Usage |
Heavy Duty |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available) |
