Von Duprin

Von Duprin 9827EO/9827EO-F Surface Vertical Rod Exit Device

$2,001.78
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Designed for high use and abuse applications
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Product Overview

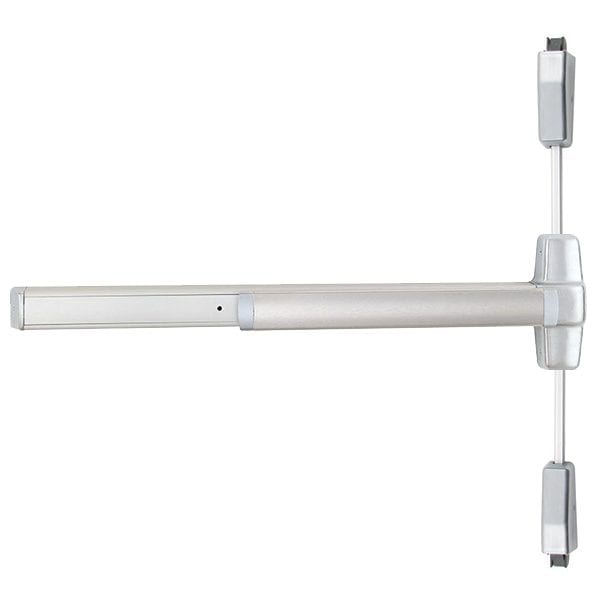

Von Duprin 9827EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 84" Door Height, Exit Only

The 9827 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827-F model is fire-rated for pairs of doors up to 8' x 10' - UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Standard Sizes: 3' x 7', 4' x 7' (extension rod available for door up to 10'0")
  • Designed for high use and abuse in institutional applications
  • 9827F Model UL listed for fire exit hardware

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Device Type

Surface Rod Device

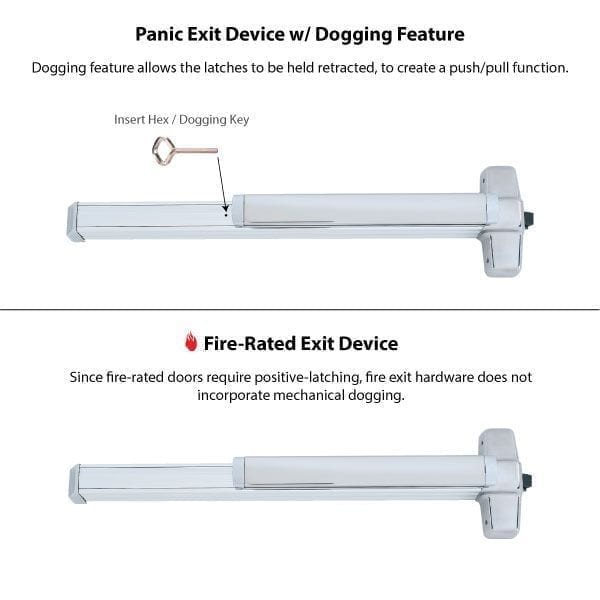

Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

Bright ChromeBlackStainless SteelSatin BrassBright BrassDark BronzeSatin BronzeAnodized AluminumSatin Chrome
Finishes

US19 (315) Flat BlackUS3 (605) Bright BrassUS32D (630) Satin Stainless SteelUS4 (606) Satin BrassUS26 (625) Bright ChromeUS26D (626) Satin Chrome313 Duranodic Dark BronzeUS10 (612) Satin BronzeUS28 (628) Anodized Aluminum
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Non-handed
Latchbolt

Deadlocking anti-friction top & bottom bolt 5/8" throw
Length

4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)

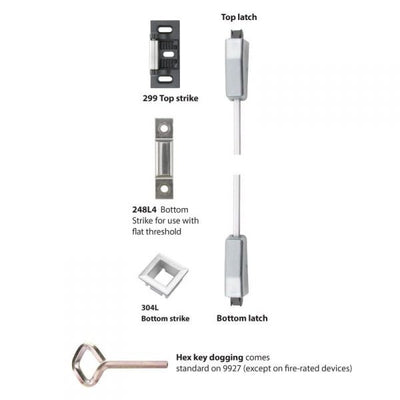

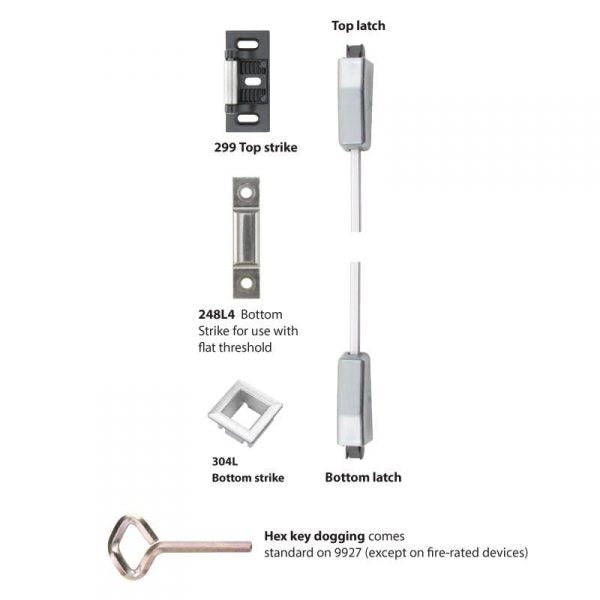

Strikes

299F Top Strike 304L Bottom Strike
Usage

Heavy Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)
Von_Duprin_98_9927_Surface_Vertical_Rod_Exit_Device_Installation_Instructions_107602_4b9b183d-17be-4033-a032-60dd5afa1c25 How to Install Von Duprin 98/99 Rim Exit Device
