Product Overview

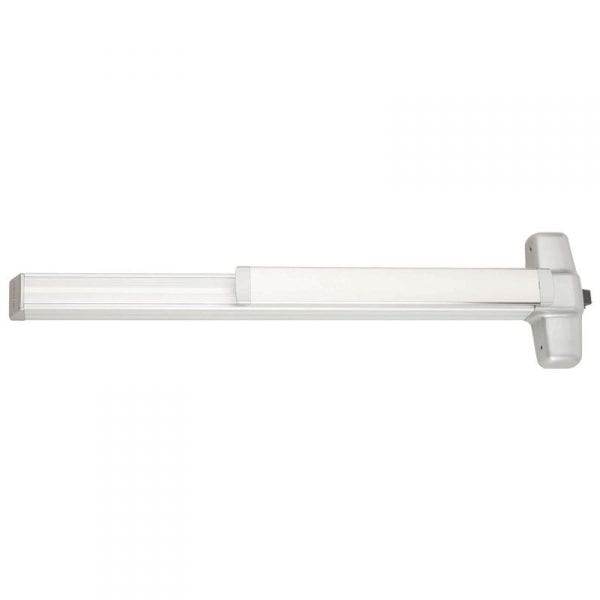

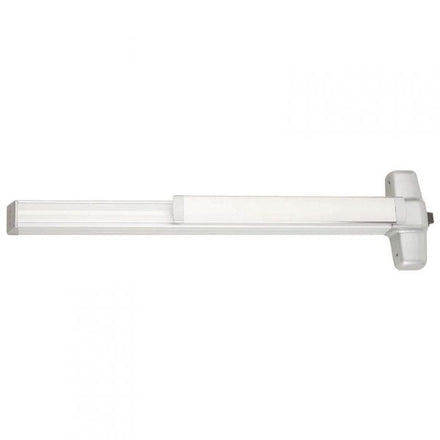

Von Duprin 99EO-F Grade-1 Rim Exit Device, Wide Stile Pushpad, Fire-Rated, Exit Only, Less Dogging
High-performance, wide stile heavy-duty rim exit device for high use and abuse applications
The 99EO-F device is for use with single fire doors or double doors with mullions. The 99 Series has been certified to the highest industry standards and is used in schools, hospitals, government buildings, and other commercial and institutional applications.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- Deadlocking latchbolt standard
- UL Listed fire exit hardware (3 Hour Fire-rated)
- Stock Sizes: 3' and 4' - Cut to size in the field
- F299 Roller Strike (99F Strike Required (sold separately) with use of 9854/9954 mullions)
- ANSI/BHMA Certified, Grade-1
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Dogging Feature |
None |
| Door Applications |
1-3/4″ Thick Doors |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Anodized AluminumSatin ChromeBright ChromeBlackDark BronzeSatin Chrome AM (Antimicrobial)Aged BronzeSatin BrassBright BrassSatin Bronze |
| Finishes |
US26D-AM (626AM) Satin Chrome AntimicrobialUS10 (612) Satin BronzeUS28 (628) Anodized Aluminum643e Aged BronzeUS19 (315) Flat BlackUS3 (605) Bright Brass313 Duranodic Dark BronzeUS4 (606) Satin BrassUS26 (625) Bright ChromeUS26D (626) Satin Chrome |
| Fire Rating |
UL listed A or B label Fire-Rated (3 Hours) |
| Hand |
Non-handed |
| Includes Trim |
No |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |
299F fire-rated roller strike |
| Usage |
Heavy Duty |
