Air Louvers

Air Louvers VLFEZ Vision Lite Frame for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$43.88
Usually Ships:  10-20 Business Days
  • 20-Gauge cold rolled steel frame
  • For 3/16" to 1/4" Glass (sold separately)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

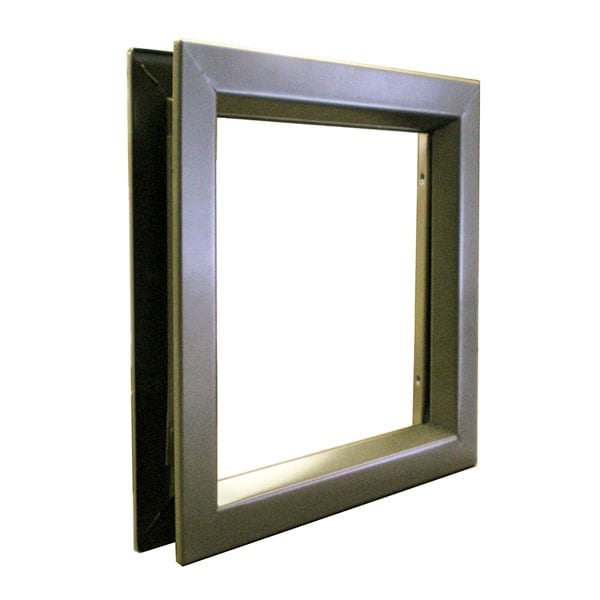

Steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors

  • Mitered and welded corners with countersunk mounting holes

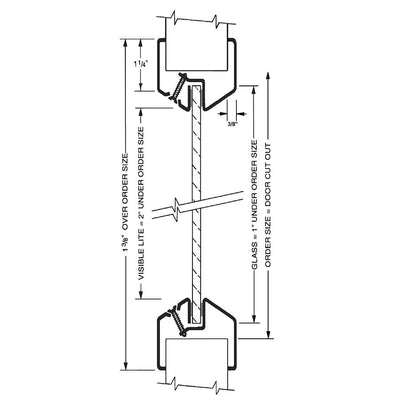

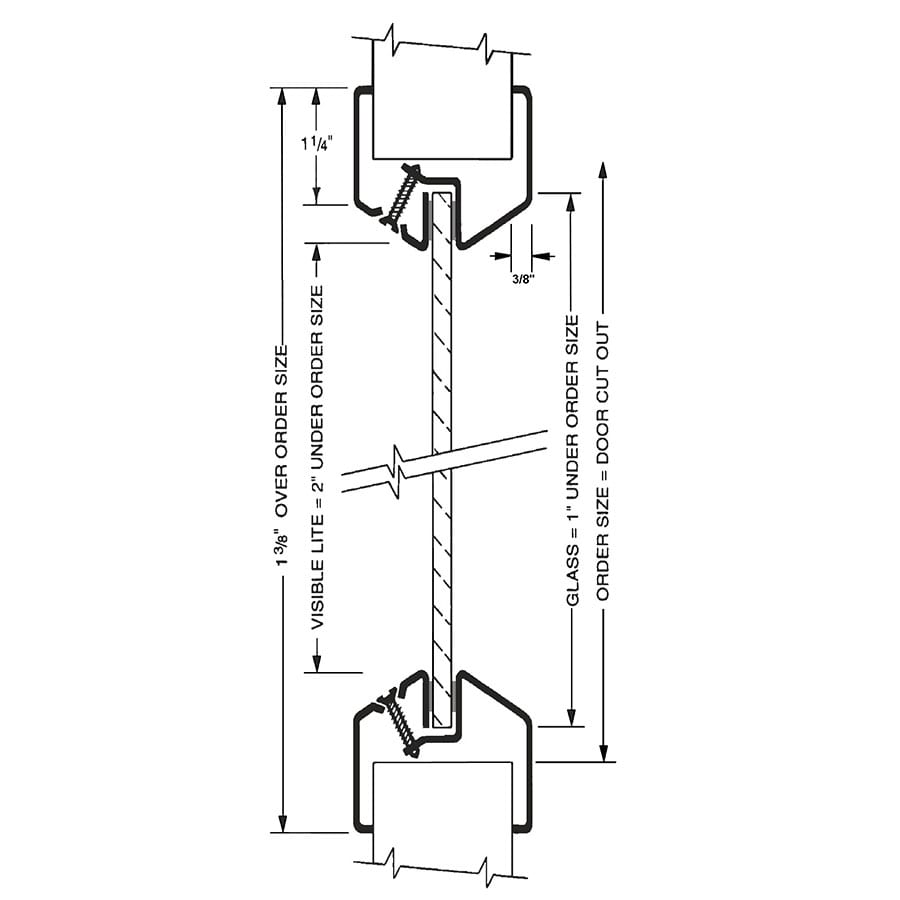

  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Mineral Bronze Finish

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Applications

1-3/4" Metal and Wood Doors
Door Thickness

1-3/4"
Finish

Mineral Bronze
Finishes

Mineral Bronze (B)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Glass Thickness

3/16" to 1/4"
Order Size

8" x 32"24" x 30"7" x 22"12" x 12"24" x 24"6" x 27"24" x 32"
