Air Louvers Slimline Vision Lite Frame for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$43.88
Usually Ships:  2-3 Business Days
  • 20-gauge cold-rolled steel frame
  • Glass sold separately
  • For use with 1-3/4″ thick doors

Available Options:

Clear

Product Overview

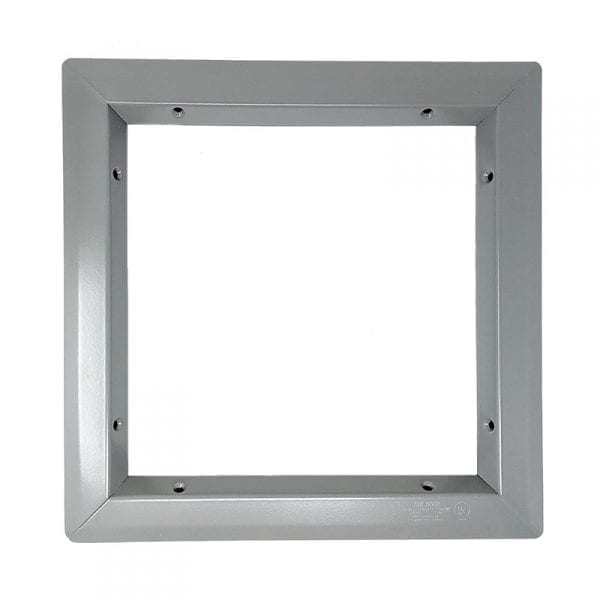

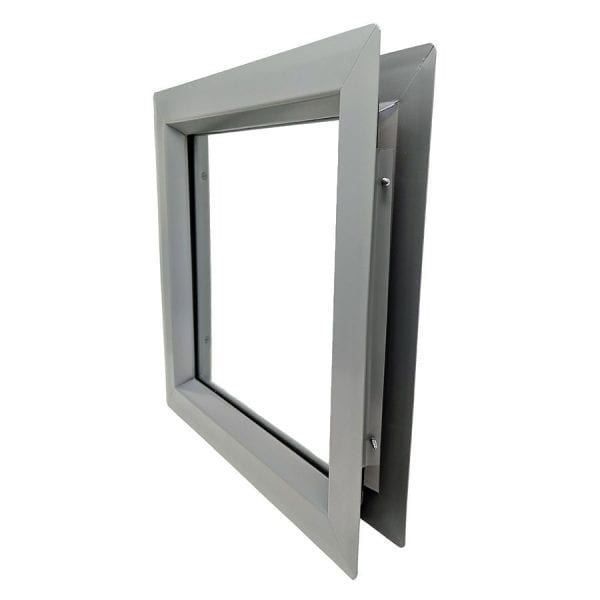

Low profile steel vision lite frame for 3/16″ to 1/4″ thick glass, for 1-3/4″ thick doors

The VSL model is our top selling vision lite frame and is ideal for use with all commercial metal and wood doors.

  • Mitered and welded corners with countersunk mounting holes

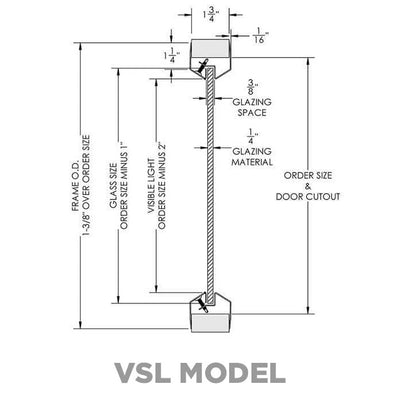

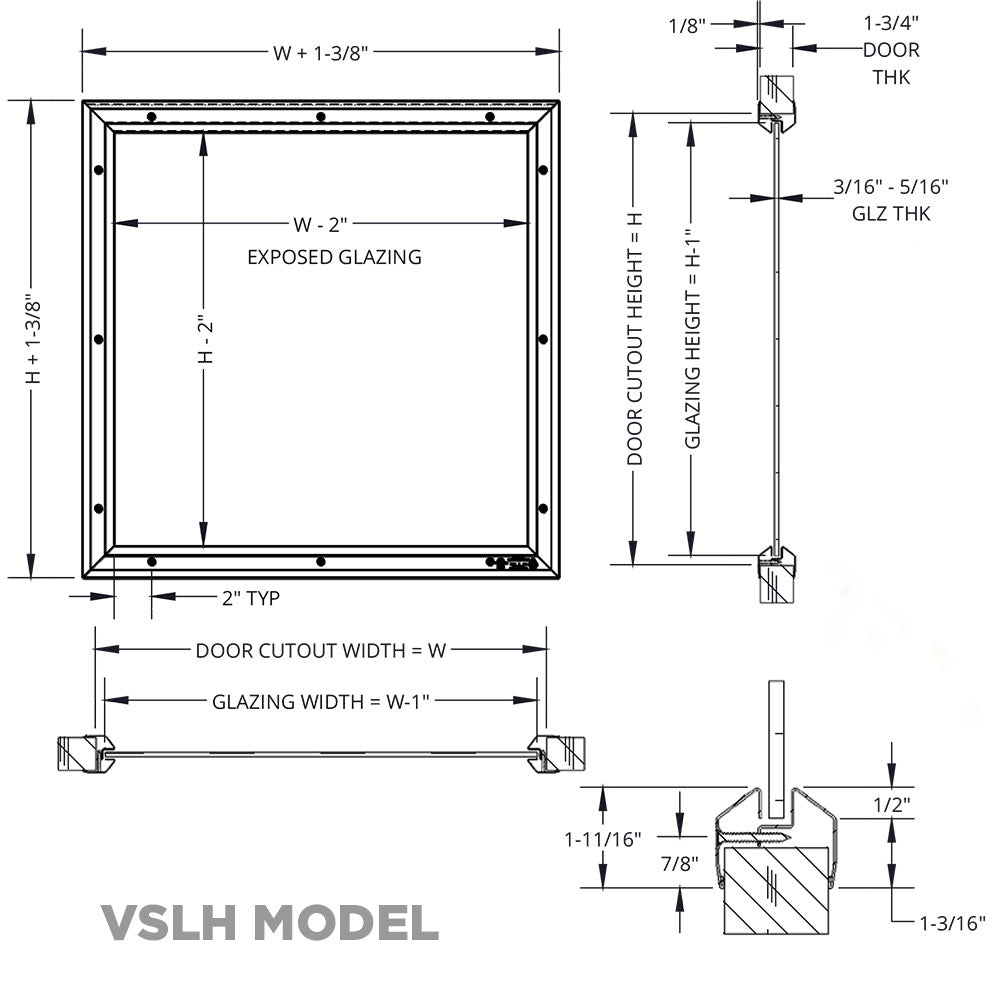

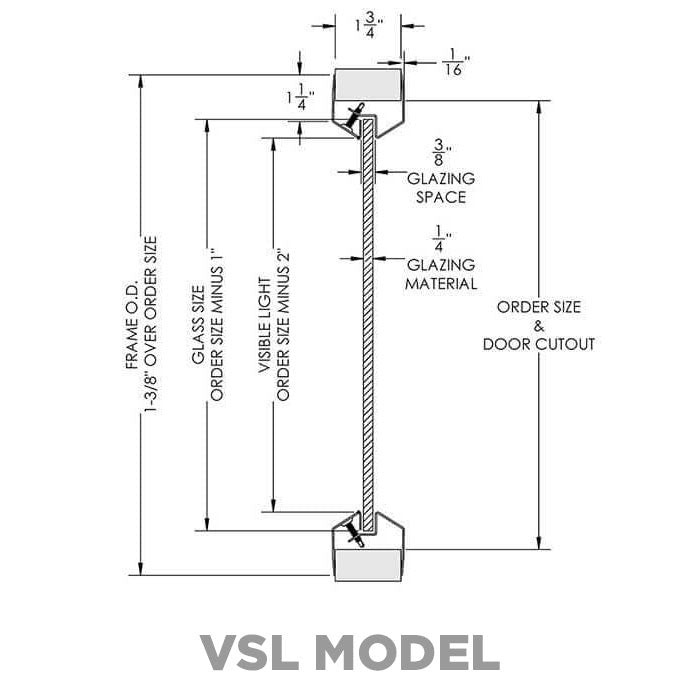

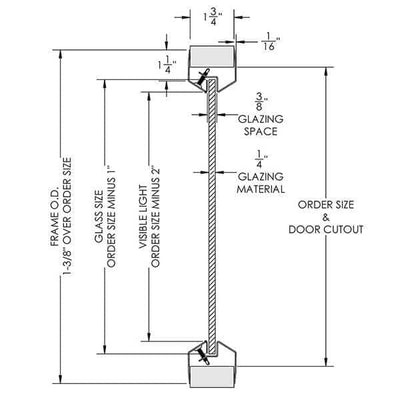

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under

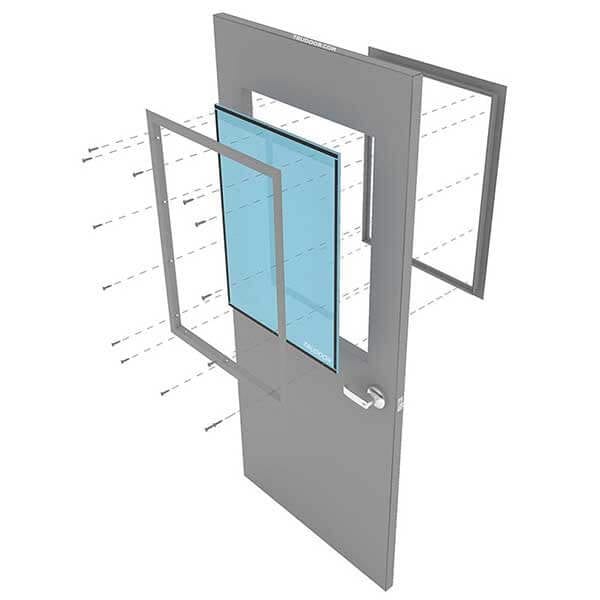

  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Fire-rated up to 3 hours
  • 1-1/4" trim with radius corners, mitered and welded
  • Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side





VSL vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

GrayMineral BronzeWhiteSilverBlack
Finishes

White (W)Black (BK)Silver (SI)Gray (G)Mineral Bronze (B)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Frame Profile

Low
Glass Thickness

3/16" to 1/4"
Order Size

6" x 30"30" x 36"10" x 10"18" x 60"18" x 32"8" x 18"8" x 36"24" x 36"24" x 24"12" x 24"6" x 27"24" x 66"18" x 30"18" x 24"6" x 60"24" x 64"24" x 32"12" x 32"8" x 32"6" x 36"5" x 35"12" x 12"9" x 9"24" x 56"24" x 72"18" x 18"6" x 56"24" x 60"24" x 30"12" x 30"7" x 22"
