Air Louvers

Air Louvers Slimline Vision Lite Kit PAK with 1/4" Clear Tempered Safety Glass

$104.16
Usually Ships:  3-5 Business Days

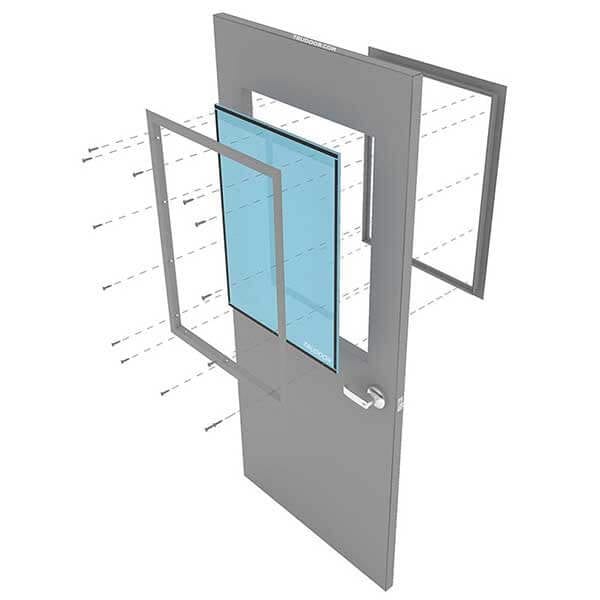

  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes clear impact-rated safety glass
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

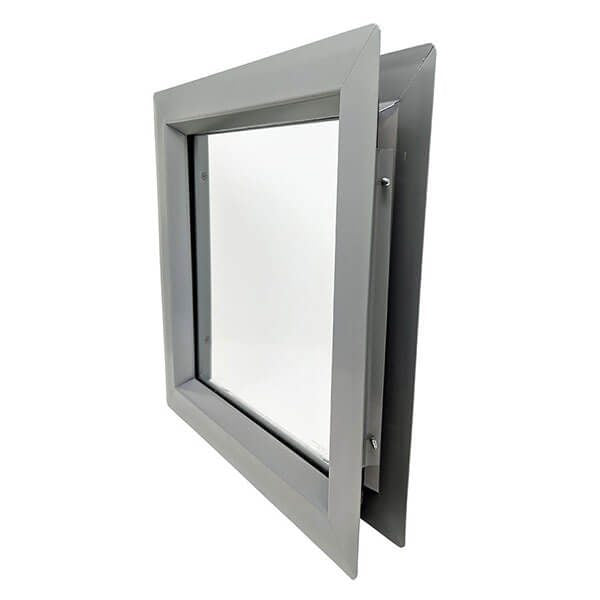

Activar Air Louvers VSL TEMP PAK Complete Lite Kit Pack - Steel Vision Lite Frame, Clear Tempered Safety Glass, and Glazing Tape - for 1-3/4" thick metal and wood doors

Fully tempered glass is four times stronger than annealed glass and is considered a safety glazing material. The strength imparted in the tempering process dramatically increases the ability of fully tempered glass to resist bending forces.

Tempered glass is recommended for all non-fire-rated doors

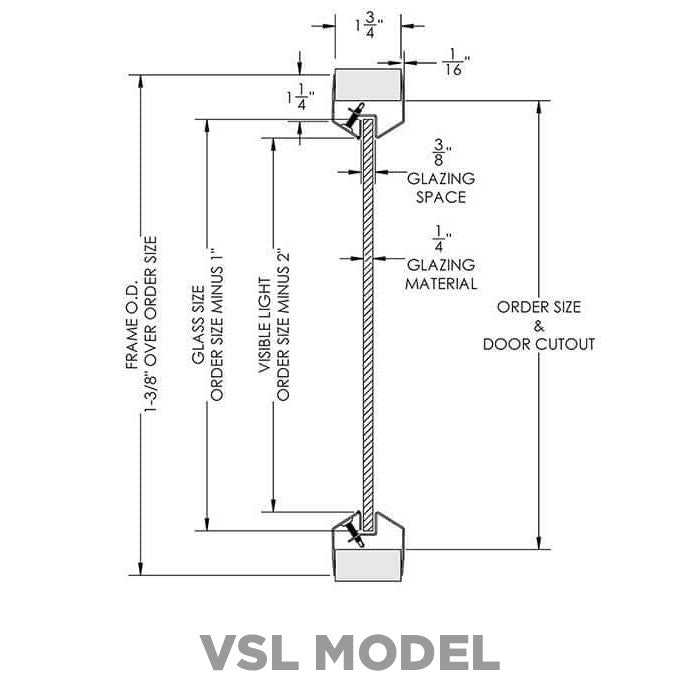

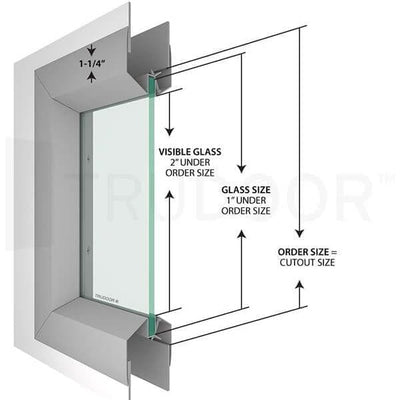

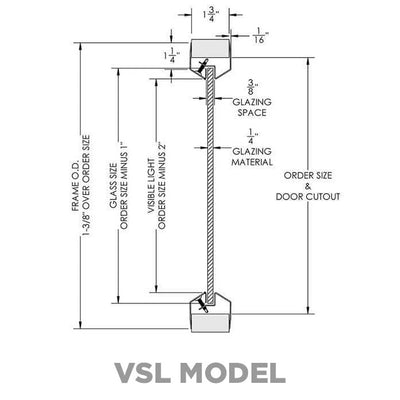

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under

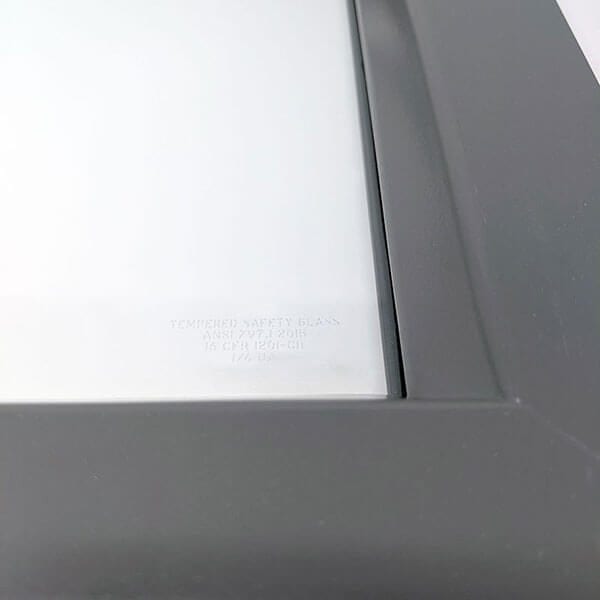

  • Includes 1/4" thick clear tempered CAT II impact-rated glass (heat-treated safety glass that breaks into small particles)
  • 1-1/4" trim with radius corners, mitered and welded
  • Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side
  • Includes glazing tape

VSL vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and colors and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

GrayMineral BronzeWhiteBlackSilver
Finishes

Black (BK)Silver (SI)Gray (G)Mineral Bronze (B)White (W)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Material

Cold Rolled Steel
Frame Profile

Low
Glass Appearance

Clear
Glass Approvals

ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II
Glass Fire-Rating

None
Glass Light Transmission

Approx. 86%
Glass Thickness

1/4"
Glass Type

Clear Tempered Glass
Order Size

18" x 30"18" x 24"6" x 60"24" x 64"24" x 32"8" x 32"6" x 30"5" x 35"12" x 12"24" x 56"24" x 72"18" x 18"6" x 56"24" x 60"24" x 30"7" x 22"18" x 64"18" x 56"18" x 60"18" x 32"8" x 18"8" x 36"24" x 36"24" x 24"6" x 27"
Classification (Fire-Rating)

None
