Air Louvers

Air Louvers VLFEZIG Vision Lite Kit PAK with 1" Clear Insulated Safety Glass

$213.55
Usually Ships:  3-5 Business Days

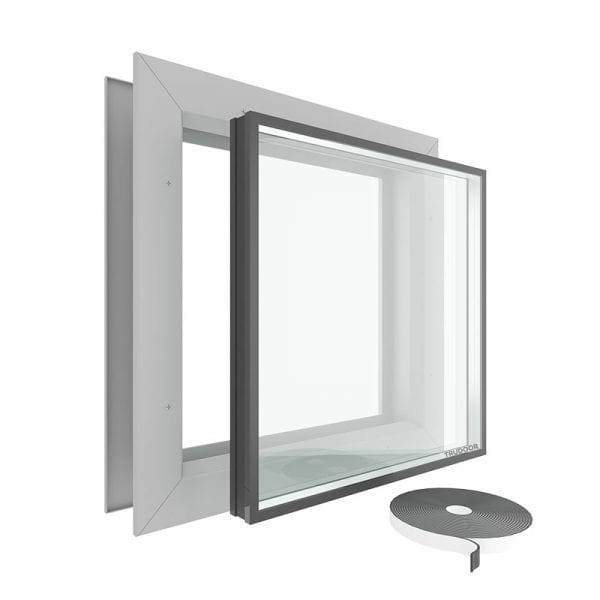

  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes 1" Clear Insulated Glass (each pane 3/16″ thick)
  • For use with 1-3/4″ thick doors

Available Options:

Clear

Product Overview

Activar Air Louvers VLFEZIG INSU PAK Complete Lite Kit Pack - VLFEZIG Vision Lite Frame, 1" Thick Insulated Glass, and Glazing Tape

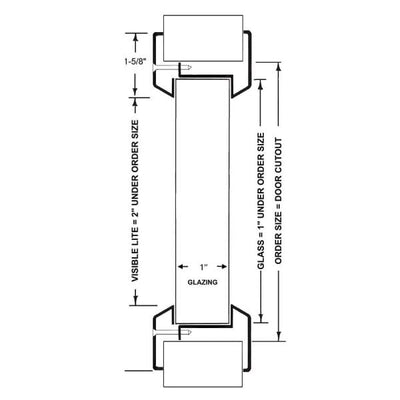

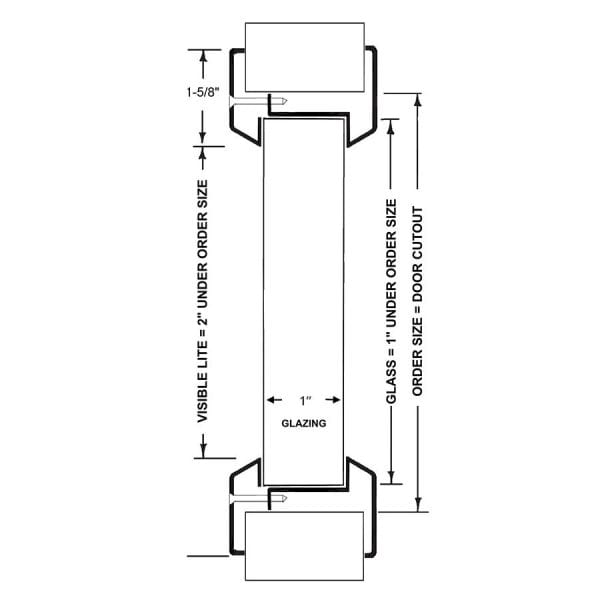

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under

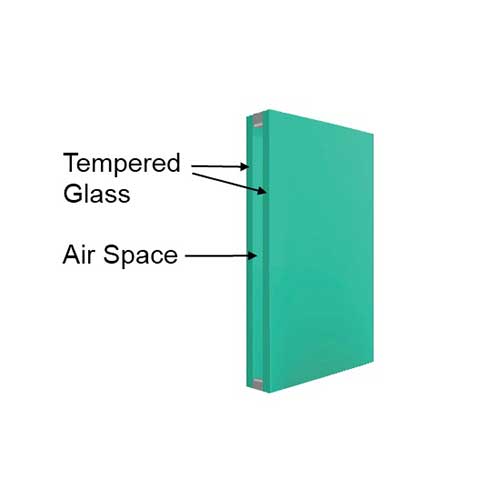

  • Includes 1" Insulated Glass - Two Panes of tempered glass with a metal spacer in a sealed insulated glass unit - Each Pane: 3/16″ - Clear, colorless, intumescent inter-layer
  • Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
  • Includes glazing tape
  • Mitered and welded corners with countersunk mounting holes
  • 1-1/4" trim with radius corners, mitered and welded.
  • Continuous glass retainer, countersunk mounting holes on the face of the non-corridor side.
  • Frame projects 3/8”

Glass is made to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Mineral BronzeGray
Finishes

Gray (G)Mineral Bronze (B)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Material

Cold Rolled Steel
Frame Profile

Standard
Glass Appearance

Clear
Glass Fire-Rating

None
Glass Impact Safety Rating

ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II
Glass Light Transmission

Approx. 84%
Glass Thickness

1"
Glass Type

Clear Insulated Glass

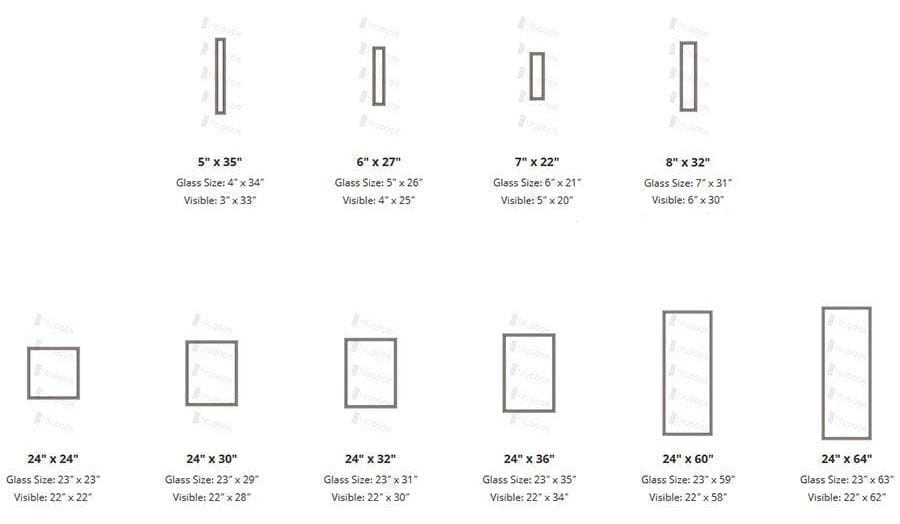

Order Size

5" x 35"18" x 64"18" x 60"18" x 32"24" x 60"24" x 30"7" x 22"18" x 30"18" x 24"24" x 36"24" x 24"6" x 27"24" x 56"24" x 72"24" x 64"24" x 32"8" x 32"
Classification (Fire-Rating)

None
