Product Overview

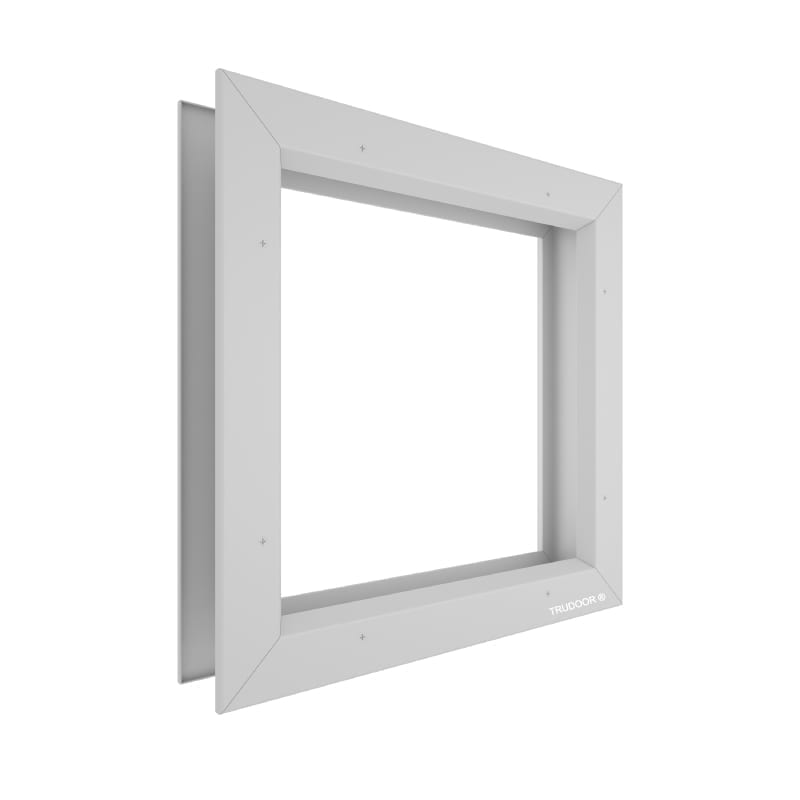

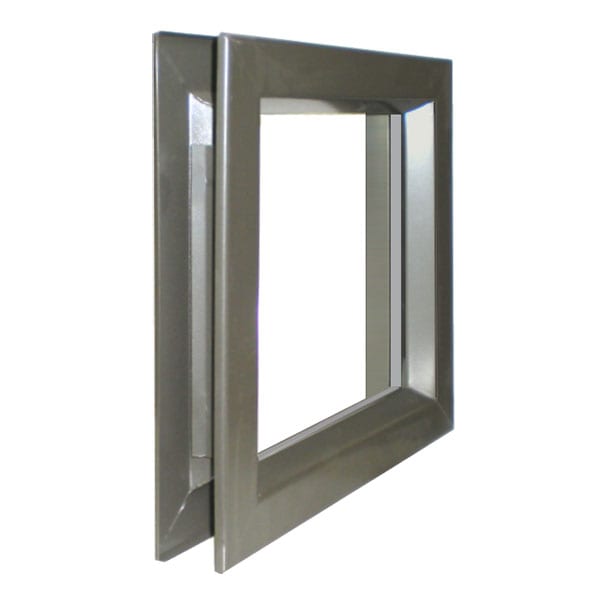

Self-Attaching, Beveled Vision Lite with Single Side Fasteners for steel and wood Doors. 1-1/4" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes on the face of the non-corridor side. Frame projects 3/8”.
- Mitered and welded corners with counter sunk mounting holes

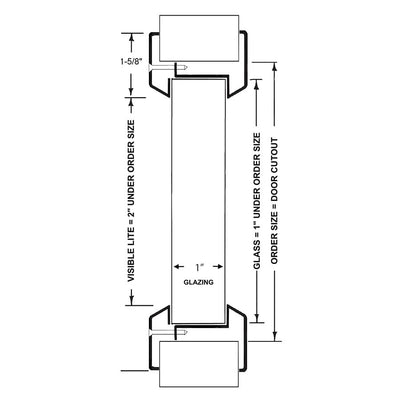

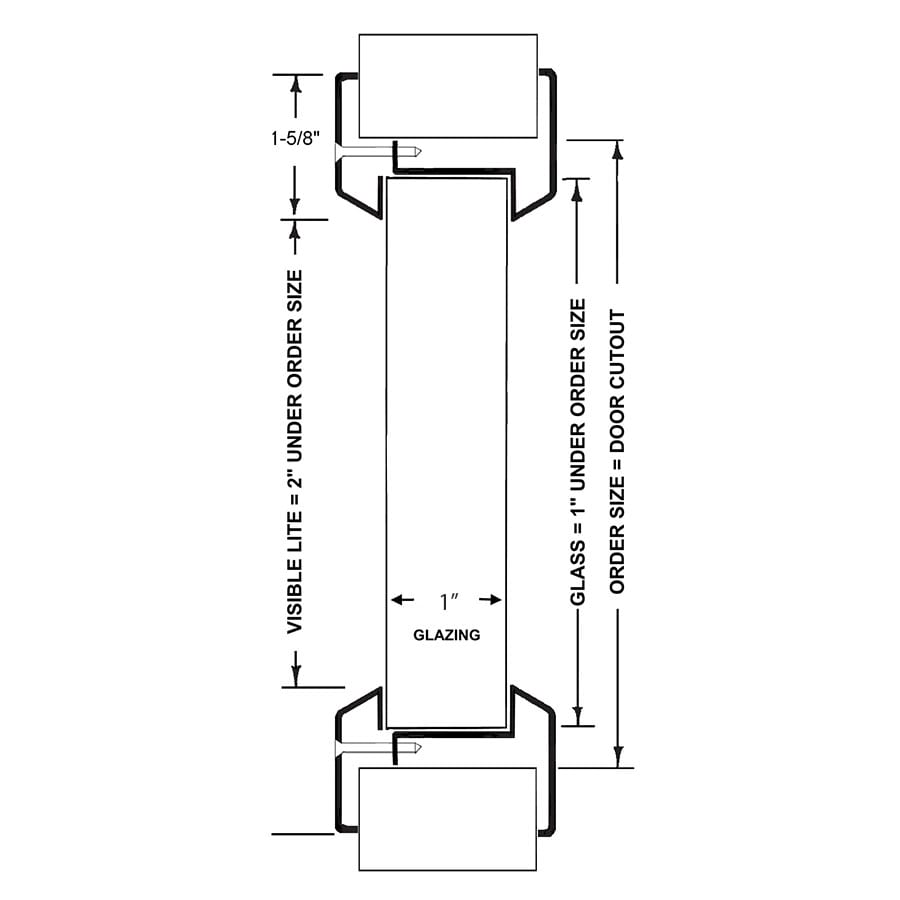

- Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
- Glass / Glazing Tape Not Included - 1" thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
- Fire-rated up to 3 hours
| Brand |
Air Louvers |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Door Thickness |
1-3/4" |
| Finish |
Mineral BronzeGray |
| Finishes |
Gray (G)Mineral Bronze (B) |
| Frame Construction |
20 Gauge Cold Rolled Steel |
| Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
| Frame Fire-Rating |
3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed |
| Frame Profile |
Standard |
| Glass Thickness |
1" |
| Order Size |
7" x 22"24" x 36"24" x 24"6" x 27"24" x 64"24" x 32"8" x 32"5" x 35"12" x 12"24" x 60"24" x 30" |
