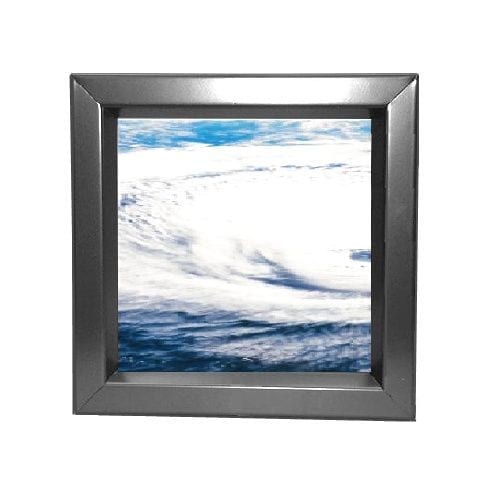

Air Louvers VLFEZ-HRC 12" x 12" Hurricane-Rated Vision Lite PAK with 1/4" Lexan Glazing

$371.36
Usually Ships:  5-10 Business Days
  • Complete Kit = Frame, Glazing and Caulking
  • 12" x 12" order size - includes 1/4" clear polycarbonate glazing
  • Severe windstorm approved / Hurricane-rated

Product Overview

This complete PAK assembly is for applications requiring safety from wind-borne debris.

Includes tested and approved Lexan glazing and caulking. Ideal for hurricane rated steel doors.

  • 20-Gauge galvanneal steel frame (mineral bronze finish)
  • Mitered and welded corners with countersunk mounting holes

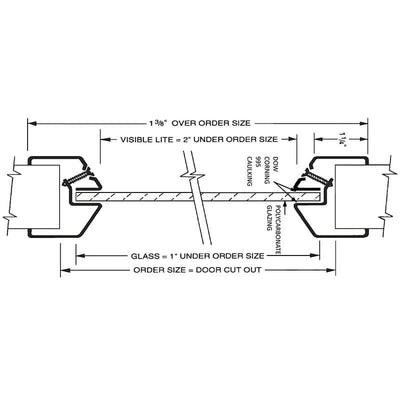

  • 12" x 12" Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Glazing: 1/4” Lexan® polycarbonate glazing Included - Complies with ASTME-1300-04 & -09
  • Caulking: Dow Corning 995® for caulking on both sides of glazing
  • Air Infiltration, Water Resistance, Structural Loading, Uniform Static Air Pressure, Forced Entry: TAS 202, ASTM E283, ASTM E330, ASTM E331, ASTM E1300, FBC 2411 3.2.1
  • Windstorm Resistance, Door Components: ANSI A250.13
  • Certified by Warnock-Hersey
  • Florida Building Code Approval File #FL13187-R2
  • Miami-Dade County Florida Component NOA 17-0404.01

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Mineral Bronze
Finishes

Mineral Bronze (B)
Frame Construction

20 Gauge Galvennealed Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Material

Galvannealed Steel
Frame Profile

Standard
Glass Thickness

1/4"
Glass Type

Polycarbonate
Order Size

12" x 12"
Classification (Fire-Rating)

None
