Alarm Lock

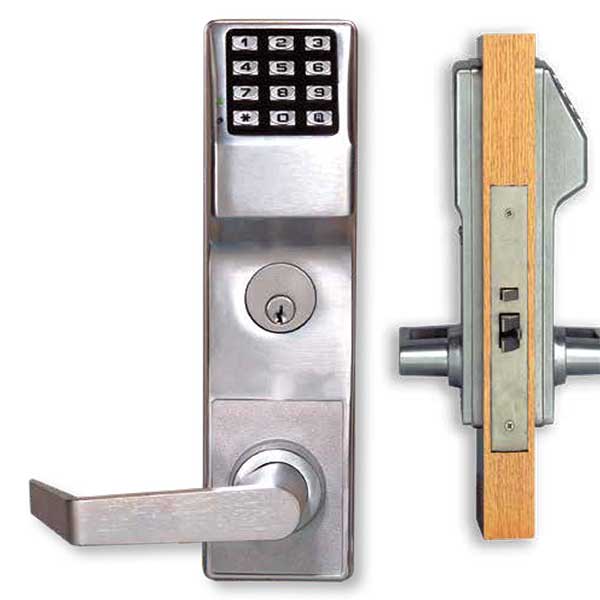

Alarm Lock DL2700CR/DB Trilogy T2 Series Digital Keypad Mortise Lock

$666.04
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty Grade-1 Standalone access control mortise lock
  • Water-sealed for interior or exterior use, temp range +151°F to -20°F
  • Includes mortise cylinder (Schlage C keyway)

Available Options:

Clear

Product Overview

Alarm Lock DL2700CR/DB Pushbutton Classroom Lock, 100 Users, Straight Lever, Satin Chrome

Trilogy® high security mortise locks

  • Trilogy T2 Keyless Access Lock for mortise door prep
  • High security mortise locking
  • Fingertip access and programming flexibility
  • Weatherproof for use inside or out
  • 1-3/8” mortise cylinder included
  • Choice of classroom or deadbolt functions
  • Long battery life

Models: DL2700CRL-US26D, DL2700CRR-US26D, DL2700DBL-US26D, DL2700DBR-US26D

ANSI Grade

ANSI Grade 1
Backset

2-3/4"
Brand

Alarm Lock
Cylinder Format

Conventional
Cylinder & Keys

1-3/8" Mortise cylinder with 2 keys
Door Applications

Interior or Exterior Doors
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Hand

LH (Left Hand)RH (Right Hand)
Handing

Handed - Field Reversible
Keyway

Schlage C Keyway
Latch

Stainless steel latchbolt with 3/4” projection and deadlocking latch
Lock Function

Entry w/ DeadboltClassroom
Lock Type

Mortise Lock
Power

5 AA alkaline batteries are now rated at 200000 cycles supplied
Reader Type

Keypad
Strikes

1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included
Usage

Heavy Duty
