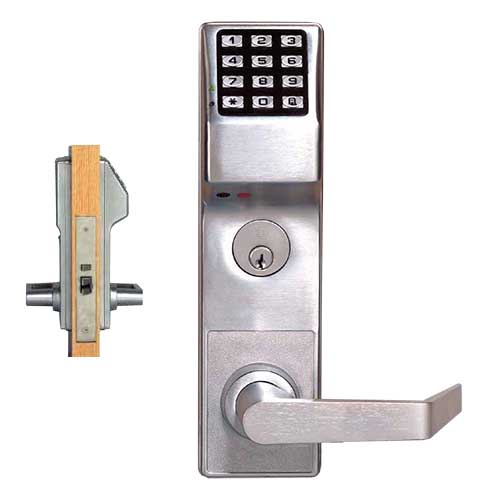

Alarm Lock DL3500CR Weatherproof Trilogy Digital Keypad Classroom Mortise Lock with High Capacity Audit Trail

$926.02

This item ships FREE! Usually Ships: 1-2 Business Days

Available Options:

Finish

Quantity:

Added to Cart

Alarm Lock DL3500CR US26D Pushbutton Classroom Mortise Lock, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Field Reverisble, Satin Chrome

T3 advanced digital lock with audit trail; high capacity audit trail lock

Rugged clutch mechanism and Grade 1 durability ensure long life
Mechanical key override - Schlage C keyway, 1-3/8" mortise cylinder supplied
2000 user codes
Up to 40,000 event audit trail with time/date stamp
150 scheduled lock/unlock events
Multilevel security - Master; manager; supervisor; basic users
200 user codes including: Master, manager, supervisor and basic user. Also one-time entry service code.
Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -20°F (+66°C to -29°C)
Entry allowance from 5-15 seconds
Program at keypad or with PC-and/or data-transfer module
Battery operated; uses 5 AA batteries
Standard ANSI 115.1 Mortise prep modified with added through-bolt holes

alarm-lock-applications

ANSI Grade	ANSI Grade 1
Backset	2-3/4"
Brand	Alarm Lock
Cylinder Format	Conventional
Cylinder & Keys	1-3/8" Mortise cylinder with 2 keys
Door Applications	Interior or Exterior Doors
Door Thickness	1-3/4"
Finish	Satin Chrome
Finishes	US26D (626) Satin Chrome
Handing	Easily Re-handed in the field – Shipped as RHR
Keyway	Schlage C Keyway
Latch	Stainless steel latchbolt with 3/4” projection and deadlocking latch
Lock Function	Pushbutton KeypadClassroom
Lock Type	Mortise Lock
Power	5 AA alkaline batteries are now rated at 200000 cycles supplied
Reader Type	Keypad
Strikes	1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included
Usage	Heavy Duty

DL3500
