Product Overview

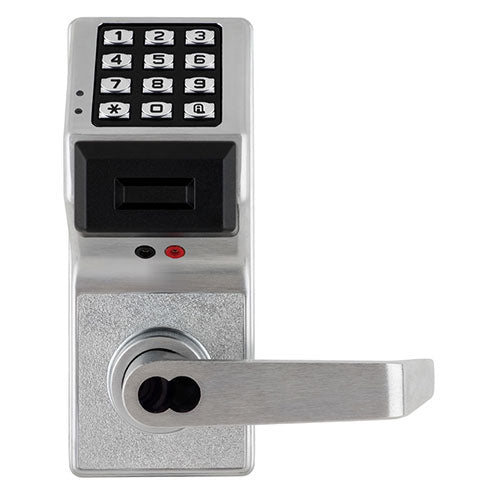

Alarm Lock PDL3000IC US26D Pushbutton Cylindrical Door Lock, Prepped for Small Format Interchangeable Core, Prox Reader, 300 Users, 1600 Event Audit Trail, Straight Lever, Satin Chrome
Trilogy prox locks with audit trail capabilities - Standalone access control systems with audit trail feature for indoor and outdoor applications
- Use the same ID cards as hardwired access systems & install in an hour
- Save all the downtime and 1/2 the cost of hardwired systems
- Rugged clutch mechanism and Grade 1 durability ensure long life
- Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
- 500 scheduled events, including 4 quick schedules for programming the 4 most common time schedules in one step
- 2000 user codes including: Master, manager, supervisor, and basic user. Users are individually programmed to use a card only, code only, or for the highest security, both card, and code. (3-6 digits) and/or accepts HID prox cards and keyfobs.
- Weatherproof performance, operational temperature range of -31°F to +151°F (-35°C to +66°C)
- Entry allowance from 3-15 seconds
- Greater security with temporary keypad lockout after 6 unsuccessful code-entry attempts
- Up to 40,000 event audit trail with time/date stamp for a printable record of door access activity by user
- Real-time clock allows logging of events to within 1 second of accuracy
- Programmable relays energize when one or more selected events occur
- Easy to install in about an hour retrofits most cylindrical locksets and digital locks
- Battery operated; uses 5 AA batteries; 60,000 cycles, typical.
| ANSI Grade |
ANSI Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Alarm Lock |
| Cylinder |
Less Interchangeable Core |
| Cylinder Format |
Small Format Interchangeable Core (SFIC) |
| Door Applications |
Interior or Exterior Doors |
| Door Thickness |
1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Handing |
Non Handed – Completely Reversible |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lock Function |
Pushbutton Keypad |
| Lock Type |
Cylindrical Lock |
| Power |
5 AA alkaline batteries are now rated at 200000 cycles supplied |
| Reader Type |
ProximityKeypad |
| Strikes |
1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included |
| Usage |
Heavy Duty |
