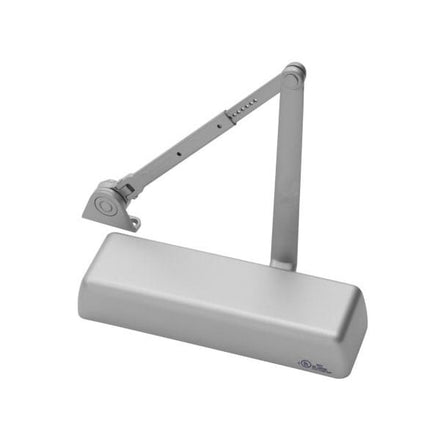

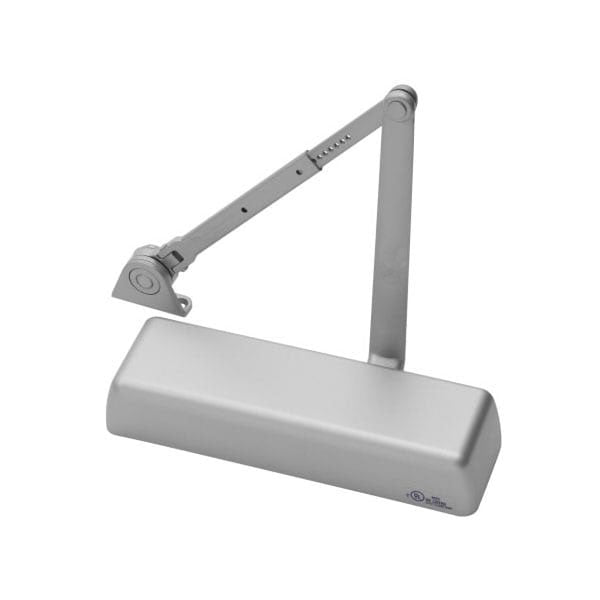

Arrow DCN516-1 Door Closer with Hold Open Arm

$166.93
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Includes friction hold open arm
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear

Product Overview

Arrow DCN516-1 Grade 1 Surface Closer, Tri Mount Push or Pull Side Mounting, Double Lever Arm with PA Bracket, Friction Hold Open, Plastic Cover, Size 1 to 6

The Arrow DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

  • ANSI/BHMA A156.4, Grade 1 certified
  • Includes Friction Hold Open arm
  • Adjustable for spring sizes 1 through 6
  • Heavy duty cast iron body
  • Hardened steel rack and pinion
  • High tensile steel springs.
  • Staked valves
  • Two non-critical adjusting valves (sweep and latch) control closing speed
  • Backcheck intensity valve
  • All temperature fluid
  • Full plastic cover standard
ANSI/BHMA Standard

ANSI/BHMA A156.4 Grade 1 certified

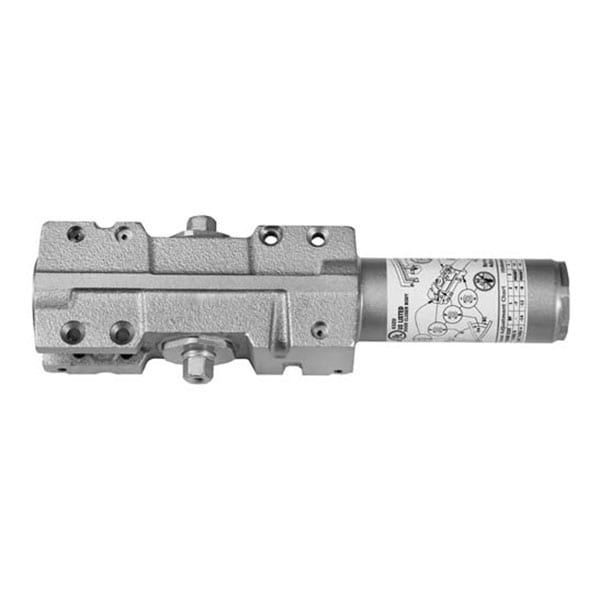

Body Construction

Cast Iron Body
Brand

Arrow
Cover

Full Cover
Door Applications

Hollow Metal Wood or Aluminum
Finish

BlackAluminumDark Bronze
Finishes

693 Black689 Aluminum690 Dark Bronze
Fire Rating

Non-Rated with Hold Open Arm
Handing

Non-Handed
Mounting Options

Regular (Pull Side)Parallel Arm (Push Side)Top Jamb (Push Side)
Spring Size

Adjustable Spring Size 1-6

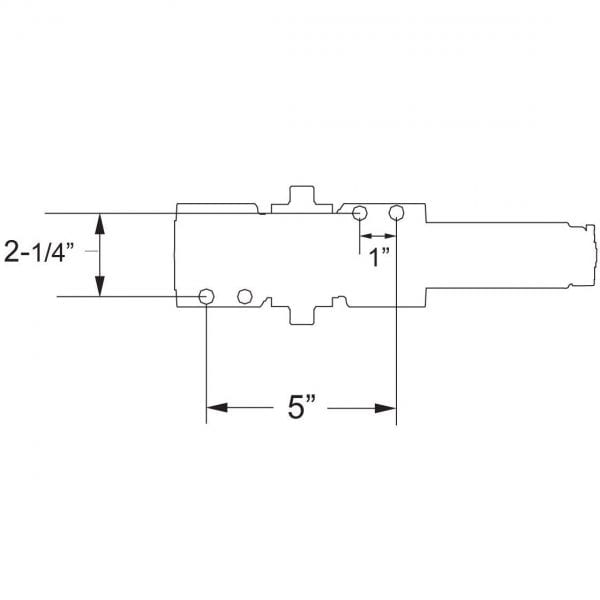

Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Warranty

10 Years
