Trudoor

Trudoor TDC-400-H Door Closer with Hold Open Arm

$186.53
Usually Ships:  Same Day
  • Heavy to Extra-Heavy-Duty, ANSI Grade 1
  • Cast iron body, for high use and abuse doors
  • Includes hold open arm – regular, top jamb, or parallel arm mount

Product Overview

Trudoor TDC-400-H Heavy-Duty Grade-1 Commercial Door Closer, Cast Iron Body, Friction Hold Open Arm, Full Cover

Trudoor® TDC-400 surface mount hydraulic door closers are built to withstand high frequency, highly abusive traffic areas. An ideal choice for demanding interior or exterior commercial, industrial, and institutional applications where grade-1 strength, durability, and reliability are required at a great value.

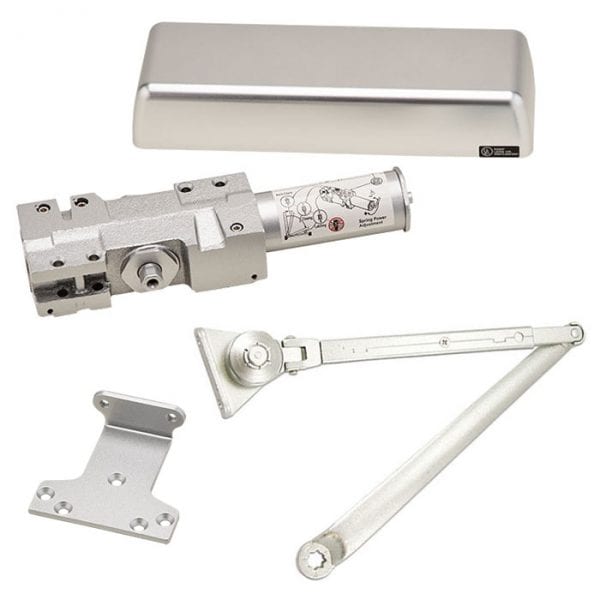

  • Includes regular arm and friction hold open arm (hold open arm packed in a separate box)
  • Quality heavy-duty construction and grade-1 reliability at an unbeatable value
  • Heavy-duty cast iron body and spring for doors up to 250lbs
  • Adjustable spring power from Size 1 to 6 – Preset at size 3

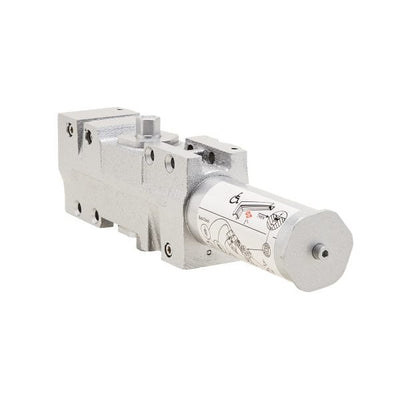

  • Heavy-duty cast iron closer body with precision rack & pinion construction
  • 2-1/4“ projection with the cover installed
  • AL/689 Aluminum Finish

Hold Open Arm

Used to hold door open in non-fire-rated applications. Hold Open Function using friction type fitting under nut which also allows for multiple hold open positions.

  • Mounting: Regular, Top Jamb & Parallel Arm (includes PA bracket)
  • Adjustability: Two arm length positions allow for different jamb depths
  • Non-handed design

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • Meets ADA and ANSI A117.1 Accessibility Codes
ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards
Body Construction

Cast Iron Body
Brand

Trudoor
Cover

Full Cover
Fasteners

Thru bolts with machine screws wood screws & Self tapping machine screws
Finish

Aluminum
Finishes

689 Aluminum
Fire Rating

Non-Rated with Hold Open Arm
Handing

Non Handed – Completely Reversible
Mounting Options

Top Jamb (Push Side)Parallel Arm (Push Side)Regular (Pull Side)
Spring Size

Adjustable Spring Size 1-6
Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
