Cal-Royal

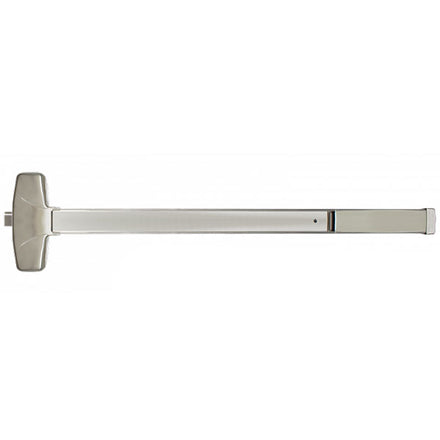

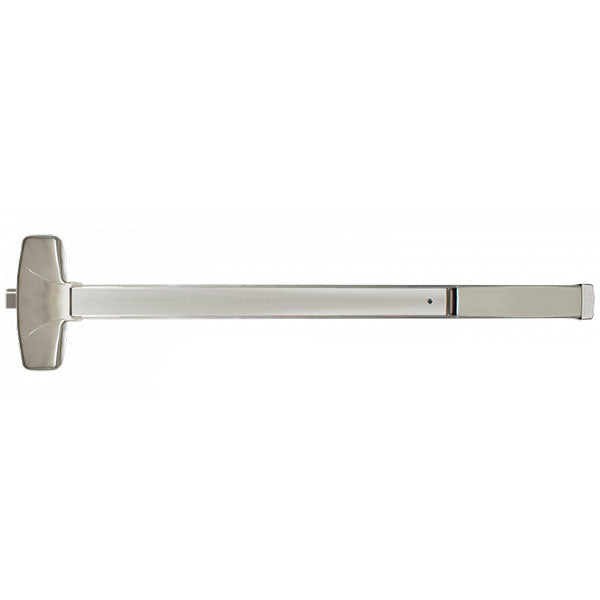

Cal-Royal A6600EO/AF6600 Panic Rim Exit Device

$158.71
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Non-handed and easily reversible
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

Cal-Royal 6600 & F6600 Grade-1 Rim Exit Device, Exit Only

For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

  • Exit Only - (Outside Trim Sold Separately)
  • Non-handed and easily reversible
  • UL and ULC Listed: 6600 Series for panic. F6600 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes

Models: 6600EO-36-ALUM, 6620EO-48-ALUM, F6600EO-36-ALUM, F6620EO-48-ALUM, 6600EO-36-US32D, 6620EO-48-US32D, F6600EO-36-US32D, F6620EO-48-US32D, 6600EO-36-DURO, 6620EO-48-DURO, F6600EO-36-DURO, F6620EO-48-DURO

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Cal-Royal
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Thickness

1-3/4"
Finish

Stainless SteelDark BronzeAluminum
Finishes

US32D (630) Satin Stainless SteelALUM AluminumDURO (Dark Bronze)
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed 3 Hour Rated
Handing

Non Handed – Completely Reversible
Latchbolt

Stainless steel 3/4” throw with anti-pick feature
Length

36" (For 30” to 36” doors)48" (For 37” to 48” doors)
Projections

2-5/8" active 1-7/8" depressed
Stile Type

Wide (Standard)
Strike

938 packed standard
Usage

Medium Duty
Warranty

Limited Lifetime Warranty
