Cal-Royal

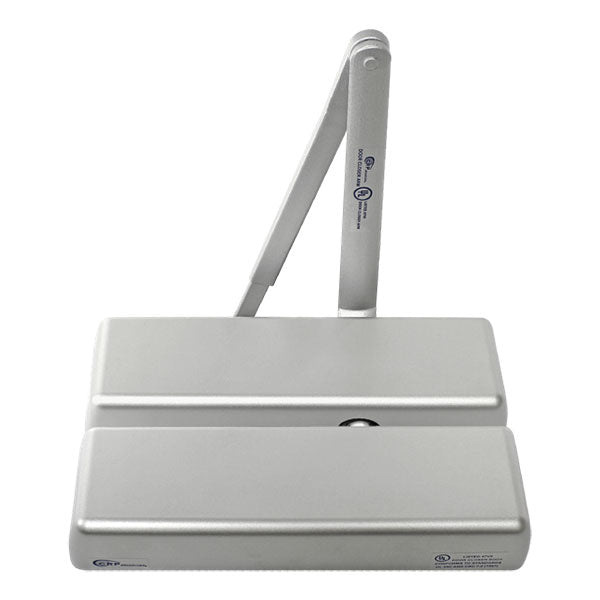

Cal-Royal CR441/TNDM Door Closers, Includes 2 Door Closers and CONCR441 Kit

$441.43
This item ships FREE! Usually Ships:  2-3 Business Days
  • Extra Heavy Duty, ANSI Grade-1
  • Includes 2 door closers and CONCR441KIT
  • Allows 2 closers to work as one, for doors up to 520 lbs.
Added to Cart

Product Overview

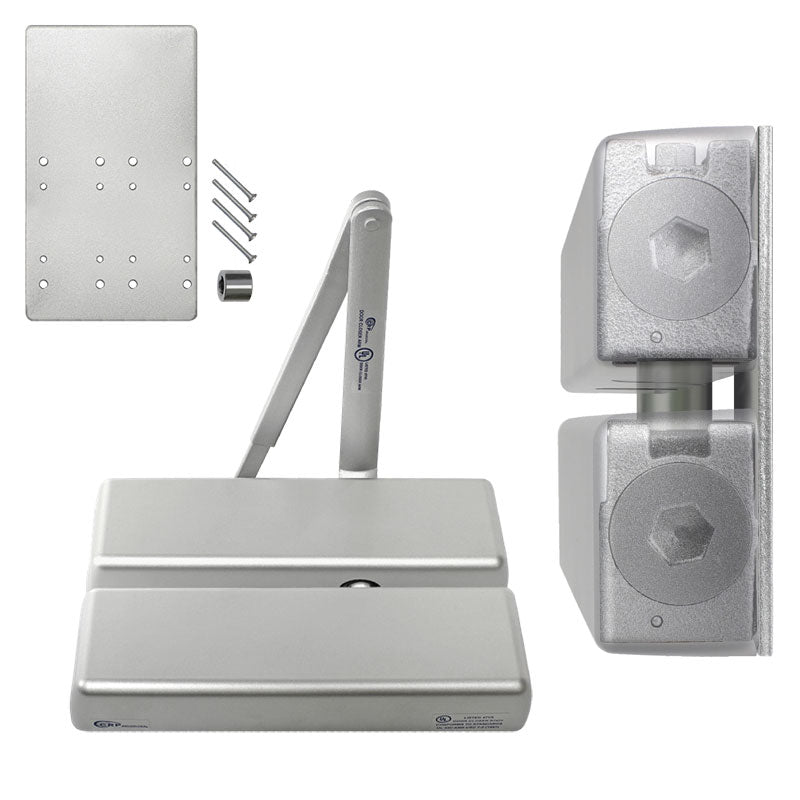

When a single door closer is not strong enough to close a door weighing 260 to 520 lbs. the CONCR441KIT allows two CR441 Series Grade 1 Door Closers to work as one, by connecting them together with the high-tensile strength steel connector sleeve nut on a steel mounting plate, doubling the strength and the door weight capacity while maintaining the opening force.

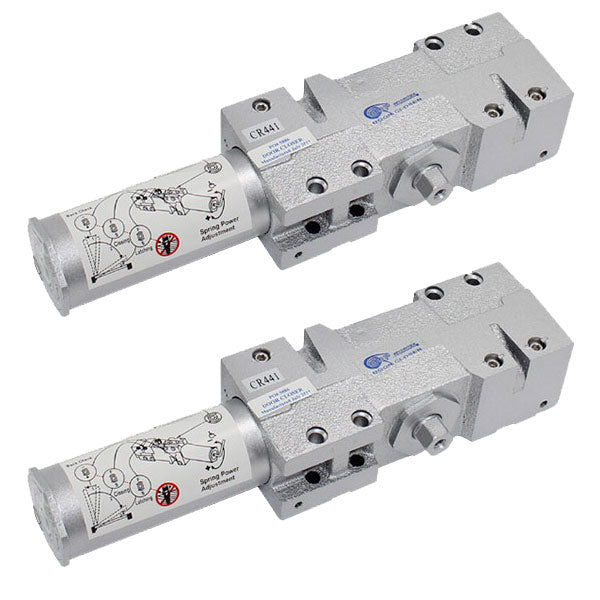

  • Includes Two CR441 Series Door Closers and the CONCR441KIT
  • Aluminum Finish
  • For Doors 260 to 520 lbs.
  • Can be Used for Regular Arm, Top Jamb or Parallel Arm Mounting
  • Easy Mounting
  • High Tensile Strength Steel Connector Sleeve Nut
  • 12-1/8" x 7" x 3/16" Steel Mounting Plate
  • 4" x ¼ - 20" x 2-1/8" Mounting Screws
ANSI/BHMA Standard

ANSI 156.4 Grade 1
Body Construction

Cast Iron Body
Brand

Cal-Royal
Cover

Full Cover
Door Application

Hollow Metal Wood or Aluminum
Finish

Aluminum
Finishes

689 Aluminum
Fire Rating

UL Listed
Handing

Non-Handed
Mounting Options

Top Jamb (Push Side)Parallel Arm (Push Side)Regular (Pull Side)
Spring Size

Adjustable Spring Size 1-6
Usage

Heavy Duty
