Cal-Royal T5000EO/TF5000 Panic Rim Exit Device

$165.64
Usually Ships:  2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Non-handed and easily reversible
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

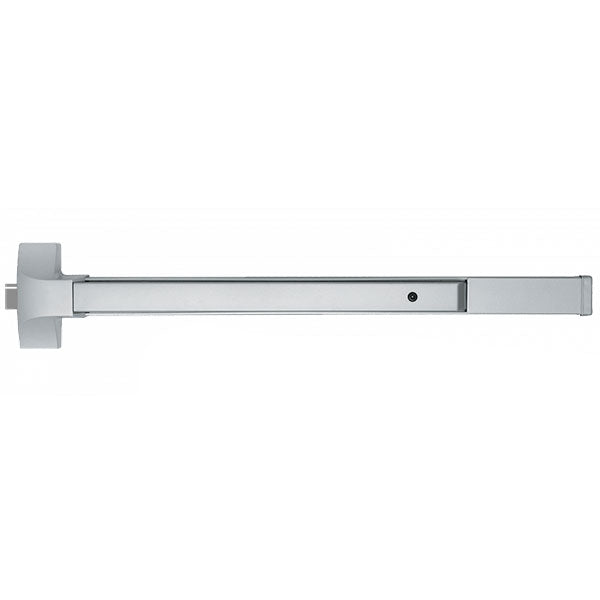

Cal-Royal T5000 & TF5000 Grade-1 Rim Exit Device, Exit Only

MADE IN TAIWAN, RIM TYPE EXIT DEVICES. Uncompromising security and safety in single and double fire exit doors.

  • Exit Only - (Outside Trim Sold Separately)
  • Non-handed and easily reversible
  • UL and ULC Listed: T5000 Series for panic. TF5000 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes

Models: T5000EO-36-ALUM, T5500EO-48-ALUM, TF5000EO-36-ALUM, TF5500EO-48-ALUM, T5000EO-36-US32D, T5500EO-48-US32D, TF5000EO-36-US32D, TF5500EO-48-US32D

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Cal-Royal
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Thickness

1-3/4"
Finish

AluminumStainless Steel
Finishes

US32D (630) Satin Stainless SteelALUM Aluminum
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed 3 Hour Fire Rated
Handing

Non Handed – Completely Reversible
Latchbolt

Stainless steel 3/4” throw with anti-pick feature
Length

36" (For 30” to 36” doors)48" (For 37” to 48” doors)
Projections

2-1/2" active 1-3/4" depressed
Stile Type

Wide (Standard)
Strike

938 packed standard
Usage

Light Duty
