Product Overview

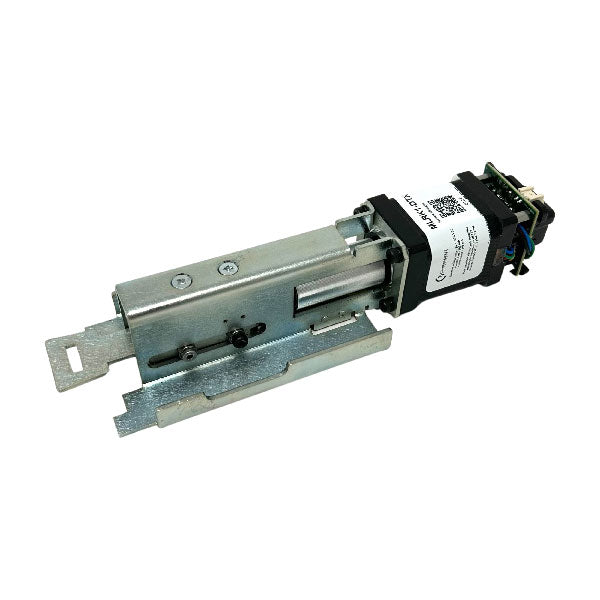

Command Access MLRK1-DTX Motorized Latch Retraction Kit, for Detex Advantex & Value Series Exit Devices (Field Installation)
The MLRK1-DTX is a cost-effective and straightforward way to upgrade your Detex Advantex and Value series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.
The MLRK1-DTX is a robust, straightforward field-installable motorized latch retraction kit for Detex Advantex & Value series exit devices series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units
- New Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- 1 Touch “PTS”: Quick & Easy Post-installation adjustment
- Electric Dogging rated for continuous
- Auto-re-engage if push pad is pulled from dogged position
- Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
- Up to 300’ wire run with 2-18ga wire - Loing wire runs provides installer with convenience of placing the Command Locking Hardware PS in a centralized location, i.e. the same closet as access control panel
- 8” cable with robust quick Molex connector for MM5 module to connect to incoming power
- 3 Year “ No Hassle” Warranty
- Voltage range – 24VDC +/- 10%
- Average Latch Retraction Current: 900 MA
- Average Holding Current: 215 MA
- Wire Gauge: Minimum 18 Gauge
- Direct Wire Run - No Relays or Acess Control Units In-Between Power Supply & Module
- Wire Run: 300’ with 2-18ga wire
- Cutdown details: 36”- 0” - 48”- 7”
| Brand |
Command Access |
|---|---|
| Model |
MLRK1-DTX, MLRK1-DTX-REX (w/ Request to Exit) |
| Part Type |
Electric Latch Retraction Kit |
| Compatible Devices |
Detex Advantex & Value Series Exit Devices |
| Buy American Act Compliance |
Meets BAA - Buy American Act |
| Warranty |
3 Year |
