Product Overview

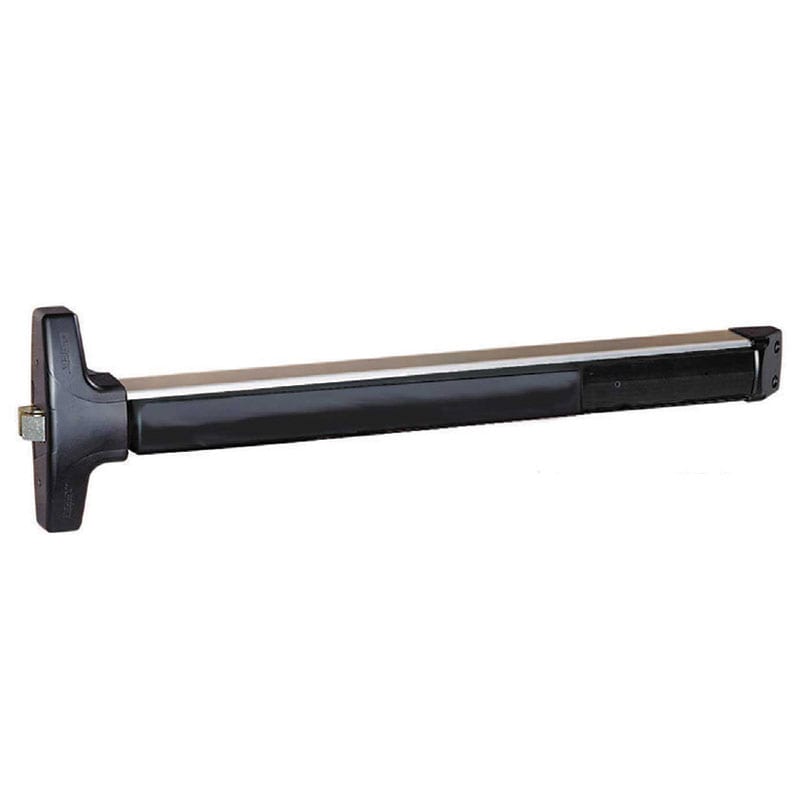

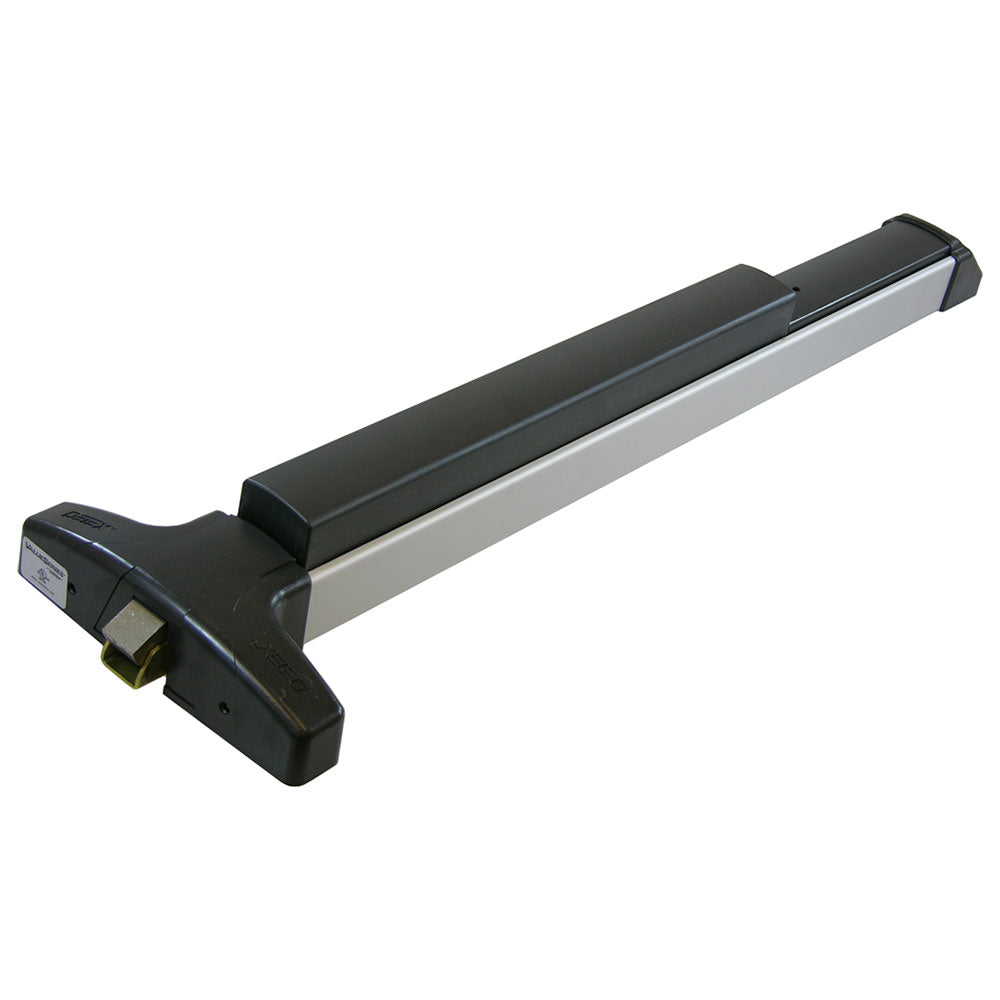

Detex V40 Value Series Rim Exit Device, 99 Surface Strike, Hex Dogging, Exit Only
The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with 90 Series mullions. The patented mounting plate and strike locator system ensure the easiest and most accurate installation of panic hardware available.
- Exit Only (trim sold separately)
- High-impact ABS and anodized surfaces
- Heavy-duty ribbed aluminum rail extrusion
- Fast and easy installation saves time and money
- Covers a 161 door prep
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Angled end cap deflects damage away from device
- Withstands over 1400 pounds of static pull force for greater security
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
|---|---|
| Brand |
Detex |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
HD - Hex Dogging |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
BlackAluminum |
| Finishes |
711 Black Anodized Aluminum628 Anodized Aluminum |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non-Handed |
| Length |
36"48" |
| Minimum Stile Width |
3-1/2” with 99 surface strike (Std.) for single door 4” for pairs - 2” narrow stile doors with NSK Narrow Stile Door Kit (sold separately) |
| Stile Type |
Wide (Standard) |
| Usage |
Medium Duty |
| Warranty |
10 Years |
