Command Access

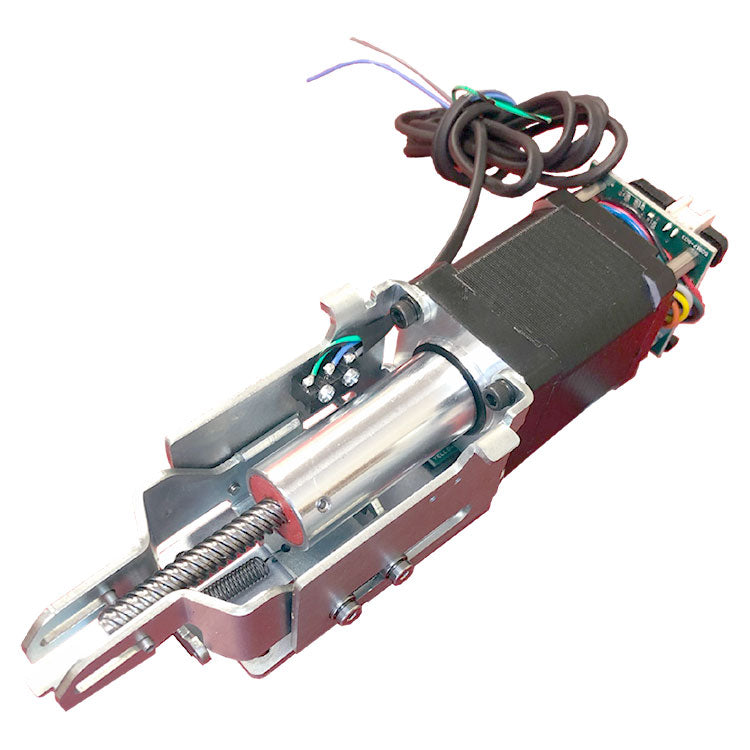

Command Access MLRK1-VD Motorized Latch Retraction Kit for Von Durpin 33/35 and 98/99 Series Exit Devices

$359.95
This item ships FREE! Usually Ships:  1-2 Business Days
  • Motor-driven electrified latch retraction kit (equal to Von Duprin QEL kit)
  • For field installation on 99/98 & 35/33 Series exit devices
  • Can upgrade both 36" and 48" devices

Product Overview

Command Access MLRK1-VD Motorized Latch Retraction Kit, for Von Durpin 33/35 and 98/99 Series Exit Devices (Field Installation)

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field.

The MLRK1-VD is a practical and cost-effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device, while maintaining the listing. The easy-to-install motor-driven kit installs in moments & includes a built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the VD features an updated MM5 module, energy conscious while still being capable of getting tough jobs

  • Equal to Von Duprin QEL kit
  • Works with all Von Duprin 99/98 & 35/33 Series Devices
  • Fast, Quite, Smooth & Strong!
  • Includes built-in request to exit on board
  • Patent pending Push to Set (PTS) Technology
  • Next Generation MM5 Smart Module: Onboard diagnostics
  • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
  • Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
  • UL Listed
  • 3-Year “No Hassle” Warranty

Specifications:

  • Voltage Range – 24 TO 28 VDC
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard - average current peak: 900MA, average current hold: 215MA
  • PTS adjustment - approx. 1/4"
  • Wire Run: 300' with 18ga wire
  • Cutdown details: 36"/48" - 6.5 filler plate needed
  • Request to Exit (VDREXKIT-ED) Built-in to all Units

MLRK1-Codes

Brand

Command Access
Buy American Act Compliance

Meets BAA - Buy American Act
Compatible Devices

98/99 and 33A/35A Series rim mortise and vertical rod exit devices
Part Type

Electric Latch Retraction Kit
MLRK1-VD-Insert-Instructions VLP-Solenoid-Removal-Instructions How to Install Von Duprin 98/99 Rim Exit Device How to Install Von Duprin 98/99 Rim Exit Device
