Command Access MLRK1-YAL6 Motorized Latch Retraction Kit for Accentra/Yale 6000 Series Exit Devices

$359.95
This item ships FREE! Usually Ships:  2-3 Business Days
  • Motor-driven electrified latch retraction kit
  • For field installation on Accentra/Yale 6000 Series exit devices
  • Can upgrade both 36" and 48" devices

Available Options:

Clear

Product Overview

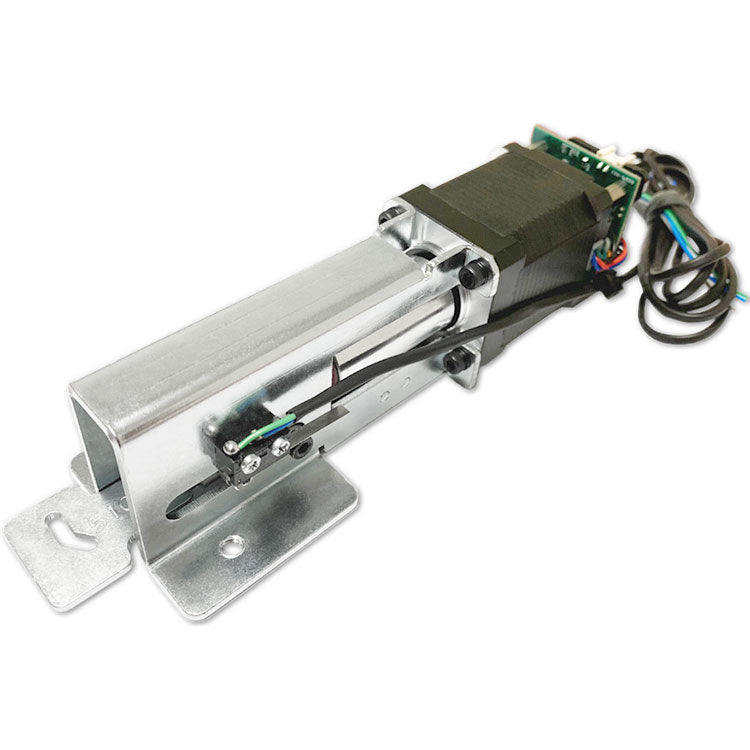

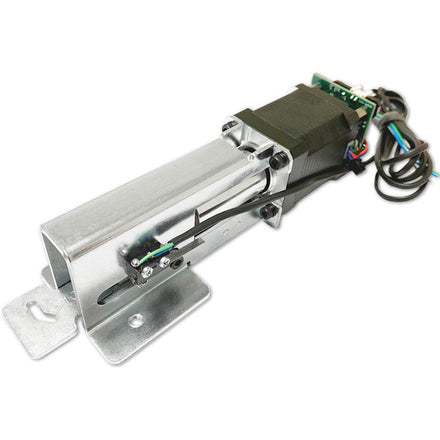

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit, for Accentra (Formerly Yale) 6000 Series Exit Devices (Field Installation)

The MLRK1-YAL6 is a cost-effective and straightforward way to upgrade your Yale 6000 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

  • Works with all Accentra (formerly Yale) 6000 Series devices
  • Fast, Quite, Smooth & Strong!
  • Patent pending Push to Set (PTS) Technology
  • Next Generation MM4S Smart Module: Onboard diagnostics
  • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
  • Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
  • UL Listed
  • 3-Year “No Hassle” Warranty

Specifications:

  • Voltage Range – 24 TO 28 VDC
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard - average current peak: 900MA, average current hold: 215MA
  • PTS adjustment - approx. 1/4"
  • Wire Run: 300' with 18ga wire
  • Cutdown details: 36”/ 48” - 6.5” filler plate Needed
  • Built-in (REX) Request-to-Exit kit optional

MLRK1-Codes

Brand

Command Access
Buy American Act Compliance

Meets BAA - Buy American Act
Compatible Devices

Accentra (Formerly Yale) 6000 Series Exit Devices
Model

MLRK1-YAL6-REX (w/ Request to Exit)MLRK1-YAL6
Part Type

Electric Latch Retraction Kit
Warranty

3 Year
