Accentra (Formerly Yale)

Accentra (Formerly Yale) 6100F Fire-Rated Rim Exit Device

$540.21
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • UL Listed Fire Exit Hardware, 3 Hour Rated

Available Options:

Clear

Product Overview

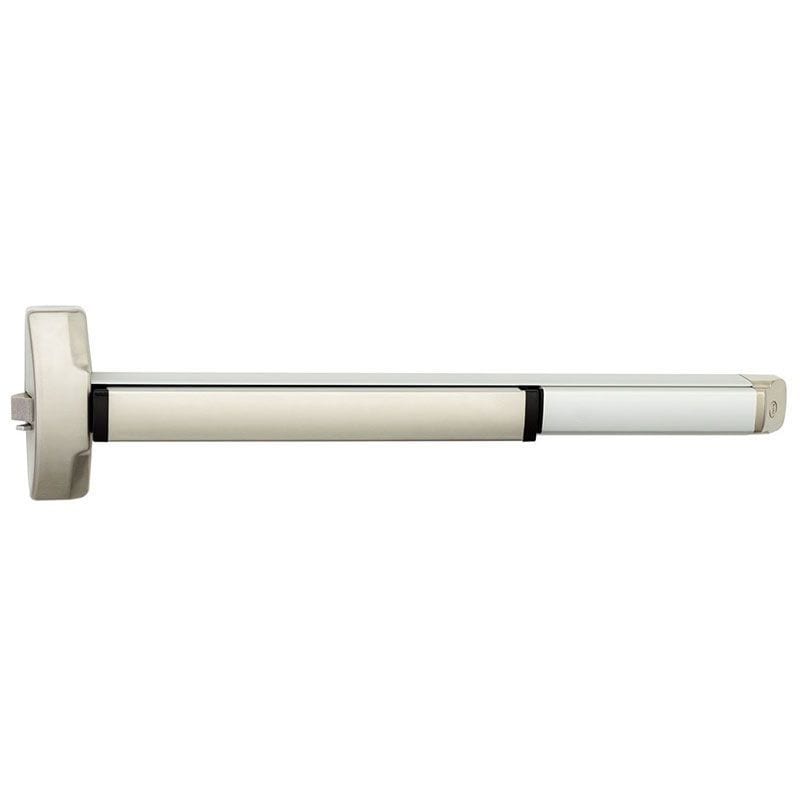

Accentra (formerly Yale) 6100F Series Commercial Fire-Rated Rim Exit Device, Exit Only

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6100ED(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas, the 6100ED(F) can be combined with a variety of trims to match any desired style.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Dogging Feature

None
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

WhiteStainless SteelBright Stainless SteelBlackDark Bronze
Finishes

WSP White Suede Powder Coat630 Satin Stainless SteelBSP Black Suede Powder Coat629 Bright Stainless Steel613e Dark Oxidized Satin Bronze equivalent
Fire Rating

UL/cUL listed up to 3 Hours
Handing

Non Handed – Completely Reversible
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

24" (for 24" Doors)48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-1/2" depressed
Stile Type

Wide (Standard)
Strike

757F
Usage

Heavy Duty
Warranty

10 Years
ACCENTRA-6000-Series-6100F-6150F-6200-6250-Narrow-and-Wide-Stile-Rim-SquareBolt-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
