Product Overview

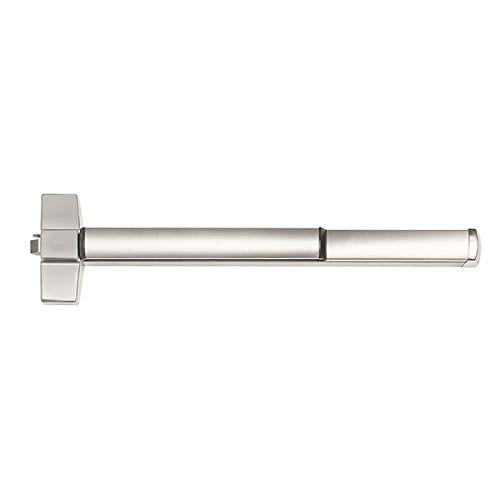

Corbin Russwin ED5200A Grade-1 Fire-Rated Rim Exit Device, 3-Hour UL Fire-Listed
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 series, and backed by a 5-year warranty.
- Exit Only (Corbin Russwin outside trim sold separately)
- Designed for standard width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- ED5200A - Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors
- UL symbol on active case cover indicates listing
Applications
- Schools
- Hospitals
- Office Buildings
- Theaters
| ANSI/BHMA Standard |
Meets A156.3 Type 1 Grade 1 |
|---|---|
| Brand |
Corbin Russwin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
None |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Finish |
Satin BrassBright BrassOil Rubbed BronzeBlackStainless SteelSatin BronzeWhiteDark BronzeBright Bronze |
| Finishes |
BSP Black Suede Powder Coat613 Oil Rubbed Bronze605 Bright Brass611 Bright Bronze612 Satin BronzeWSP White Suede Powder Coat613e Dark Oxidized Satin Bronze equivalent630 Satin Stainless Steel606 Satin Brass |
| Fire Rating |
UL and cUL Listed – up to 3 Hours |
| Handing |
Non Handed – Completely Reversible |
| Latchbolt |
3/4" (19mm) throw stainless steel pullmantype with stainless steel deadlocking latch |
| Length |
36" (for 30" to 36" Doors)48" (W048 for 36" to 48' Doors) |
| Stile Type |
Wide (Standard) |
| Strike |
Surface-mounted 3/8" (10mm) diameter roller strike |
| Usage |
Heavy Duty |
| Warranty |
5 Year |
