Design Hardware X-82-F Entry/Office Lever Lock

$82.65
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F82, entry/office
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

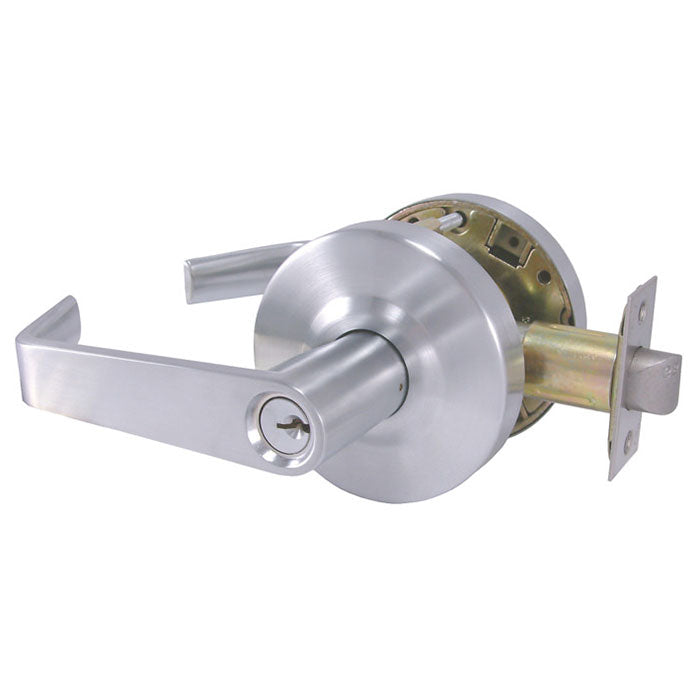

Design Hardware X-82-F Lever Lockset, Entry/Office Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-82 Entry/Office - ANSI Function F82 - Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

  • Clutching levers standard for Vandal resistance on locking functions
  • Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
ANSI Grade

Meets ANSI - A156.2 Series 4000 Grade 1 Standards
Backset

2-3/4"
Brand

Design Hardware
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Fasteners

Combination screws for wood or metal doors & frames
Finish

Satin ChromeDark Bronze
Finishes

US10B (613) Oil Rubbed BronzeUS26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Handing

Non Handed – Completely Reversible
Keyway

Schlage C Keyway
Latch

1/2" throw - 1" x 2-1/4" face
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
