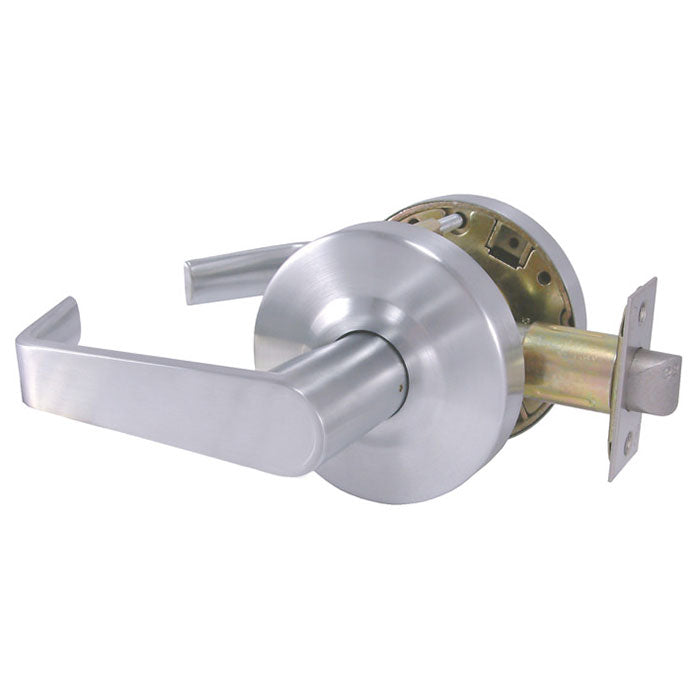

Design Hardware X-75-F Passage Lever Set

$77.41
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Series 4000, Grade 1 Standards
  • ANSI function: F75, both levers always open
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Design Hardware X-75-F Lever Lockset, Passage Function, Heavy-Duty Grade-1, (F) Flat Lever Design

X-75 Passage - ANSI Function F75 - Latchbolt operated by lever from either side at all times.

  • Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
  • Best for medium to high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
ANSI Grade

Meets ANSI - A156.2 Series 4000 Grade 1 Standards
Backset

2-3/4"
Brand

Design Hardware
Fasteners

Combination screws for wood or metal doors & frames
Finish

Satin ChromeDark Bronze
Finishes

US10B (613) Oil Rubbed BronzeUS26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Handing

Non Handed – Completely Reversible
Latch

1/2" throw - 1" x 2-1/4" face
Lock Function

Passage
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
