Schlage

Schlage ALX10 SAT (Saturn) Passage Lever

$133.22
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

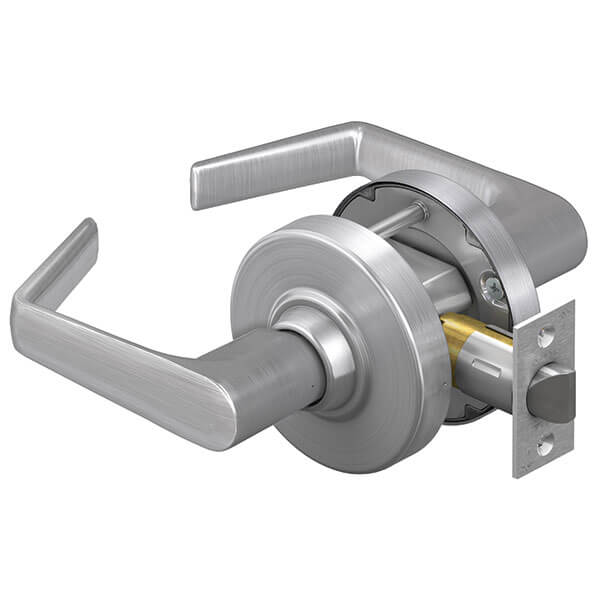

Schlage ALX10 SAT Grade-2 Cylindrical Lever Lock, Passage Function, Saturn Lever

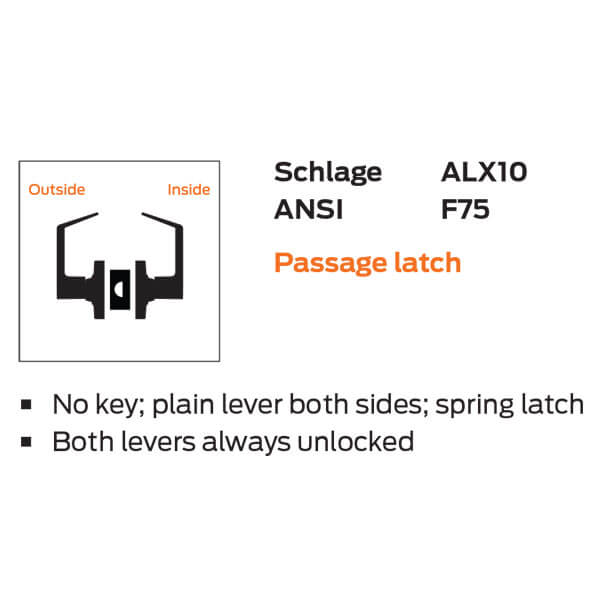

ANSI Function F75 – No key; plain lever on both sides; spring latch. Both levers always unlocked.

  • For medium to heavy-duty commercial door applications
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/8"2-3/4"
Brand

Schlage
Door Thickness

1-3/8" to 1-3/4"
Finish

Bright ChromeBright BrassSatin NickelSatin BrassSatin ChromeAged BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin Bronze
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw – 1-1/8" x 2-1/4" face standard. 2-3/8" latch is 1" x 2-1/4"

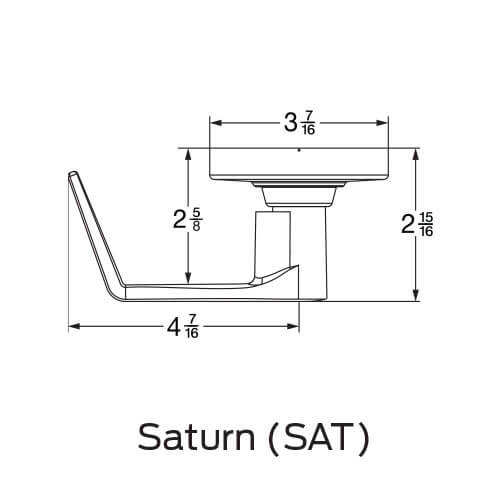

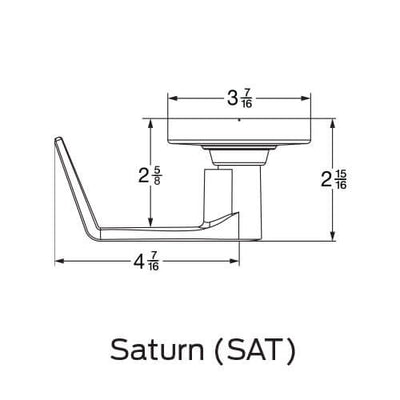

Lever Design

SAT (Saturn)
Lock Function

Passage
Strike

4-7/8" ASA Strike2-3/4" T-Strike
Usage

Medium Duty
Warranty

10 Year Limited
