Schlage

Schlage ALX10 RHO (Rhodes) Passage Lever

$150.23
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

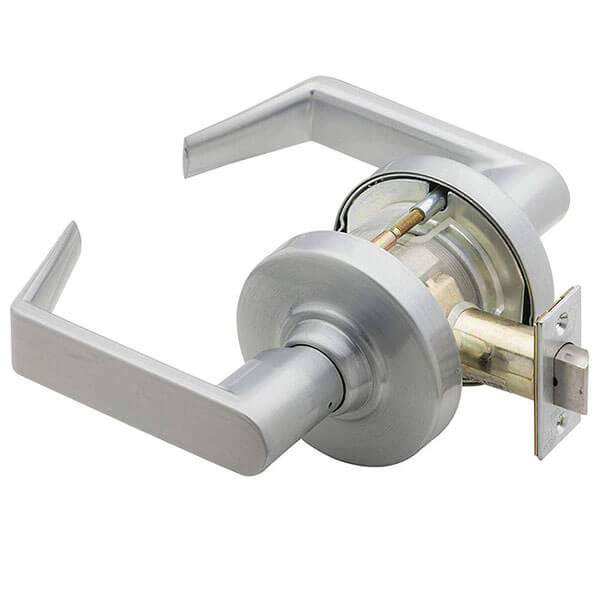

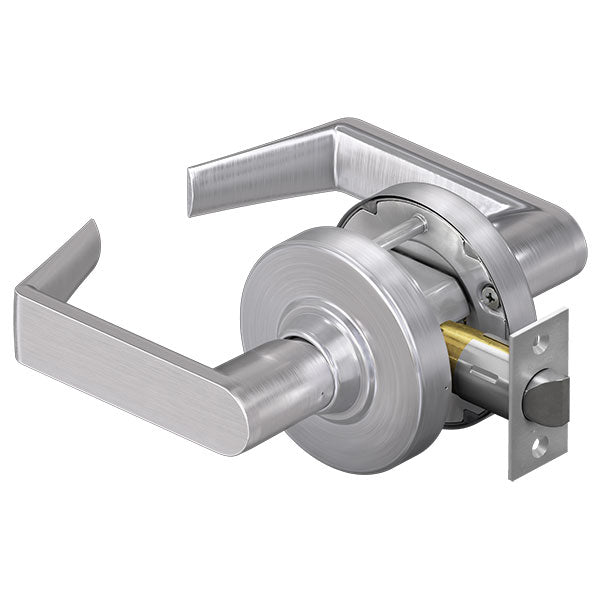

Schlage ALX10 RHO Grade-2 Cylindrical Lever Lock, Passage Function, Rhodes Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

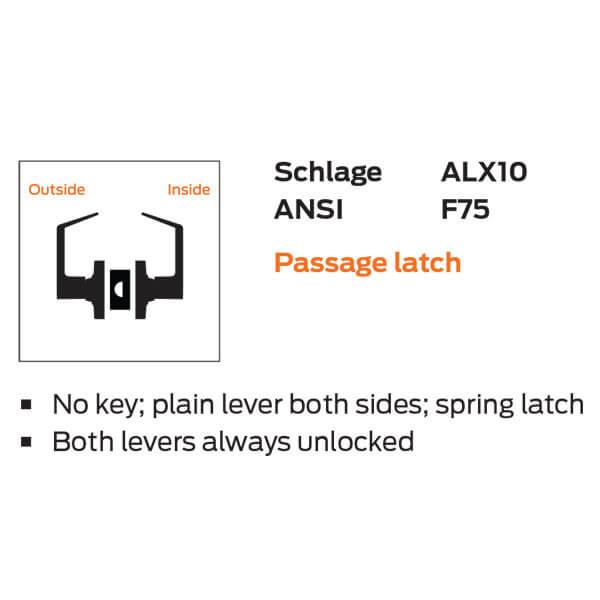

ANSI Function F75 – No key; plain lever on both sides; spring latch. Both levers always unlocked.

  • For medium to heavy-duty commercial door applications
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/8" to 1-3/4"
Finish

Bright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin BronzeBlackDark BronzeSatin Nickel
Finishes

626AM Satin Chrome Antimicrobial619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face

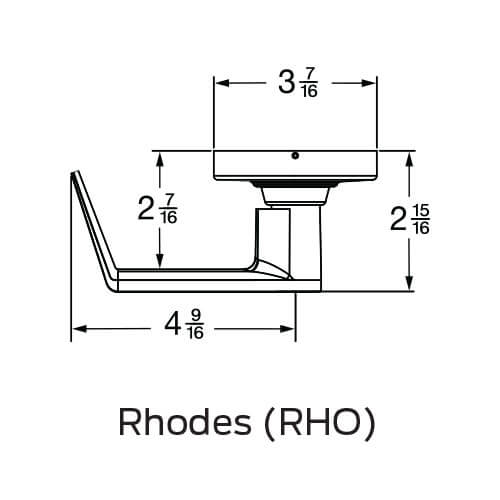

Lever Design

RHO (Rhodes)
Lock Function

Passage
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
