Schlage

Schlage ALX70P SAT (Saturn) Classroom Lever Lock

$207.08
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Lock/Unlock by key – inside always unlocked
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

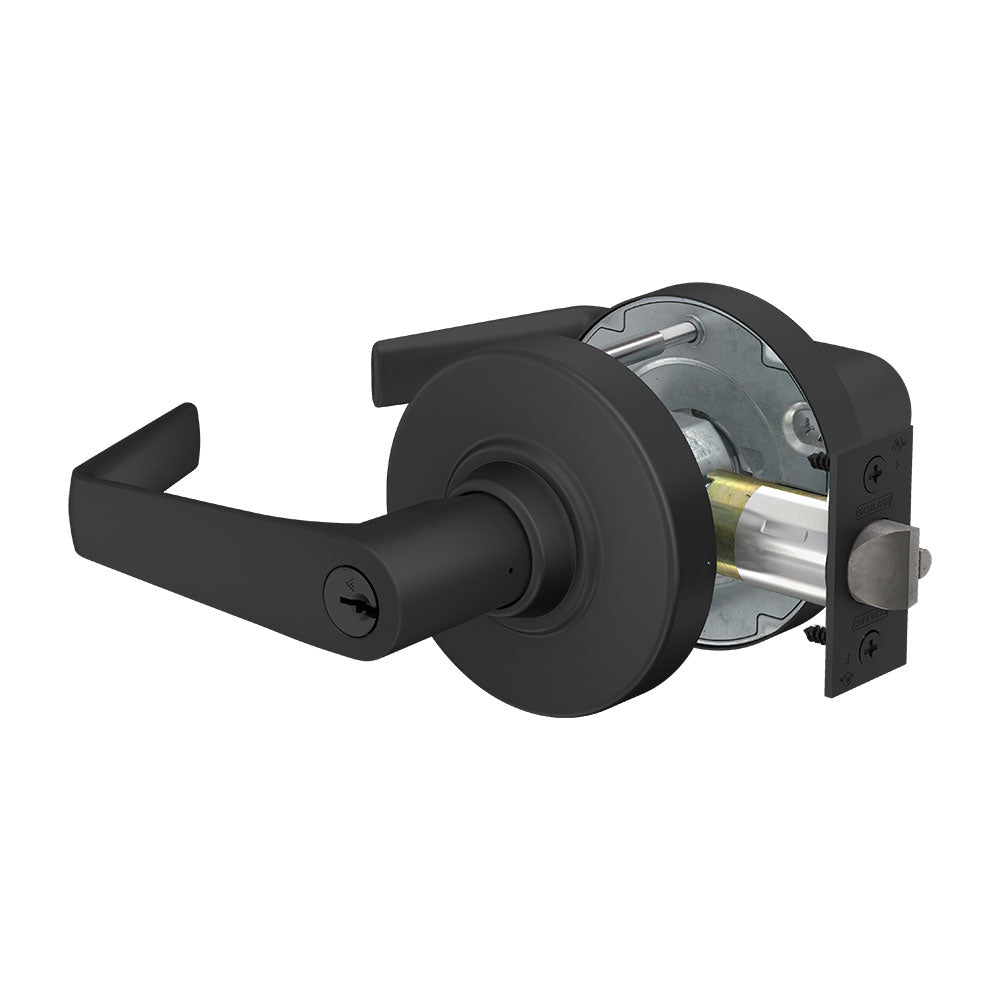

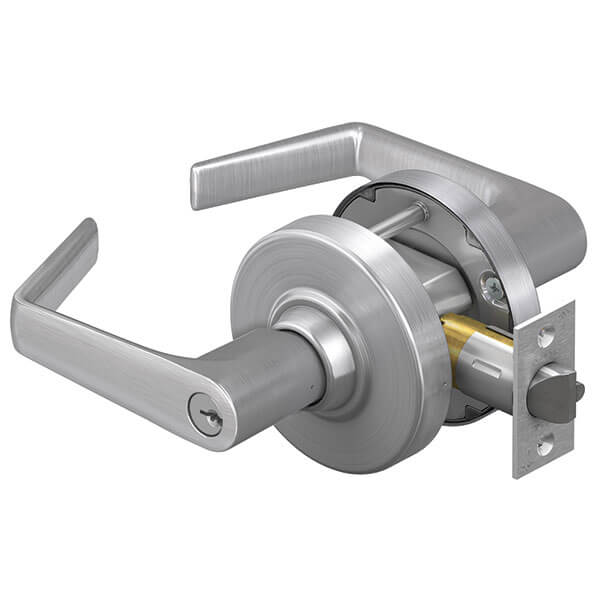

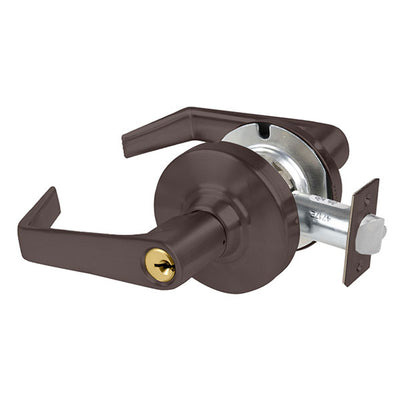

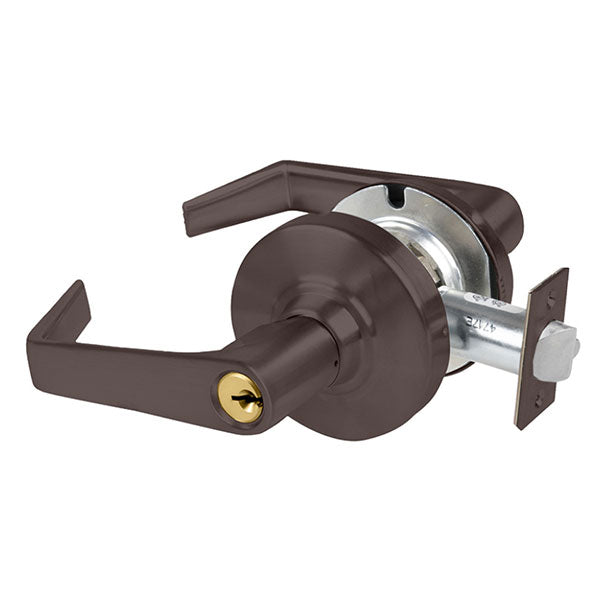

Schlage ALX70P SAT Grade-2 Cylindrical Lever Lock, Classroom Function, Saturn Lever

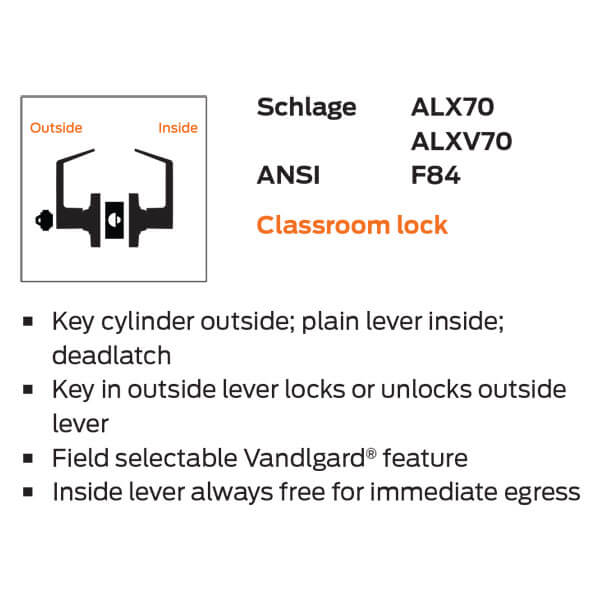

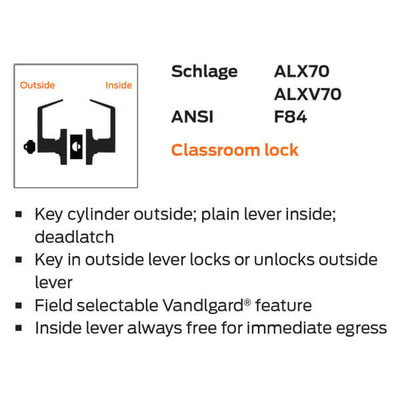

ANSI Function F84 – Key cylinder outside; plain lever inside; deadlatch. Key in outside lever locks or unlocks outside lever. Inside lever always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV70
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"2-3/8"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin Bronze
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywaySchlage S123 Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design

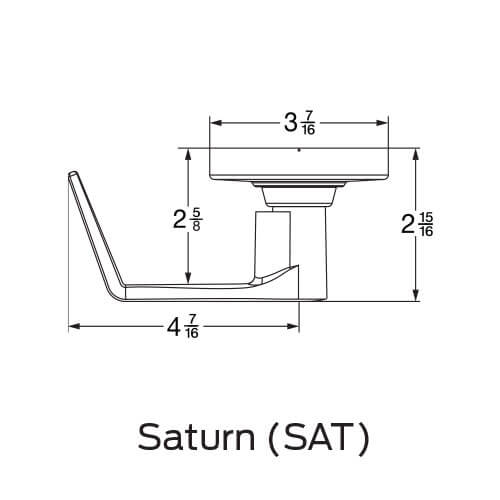

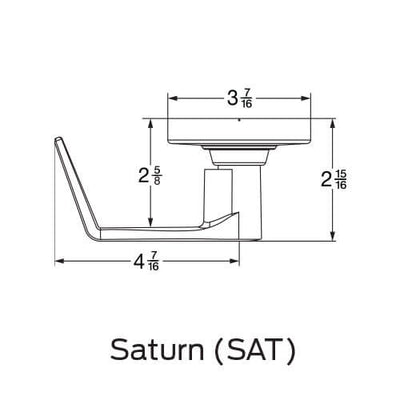

SAT (Saturn)
Lock Function

Classroom
Strike

4-7/8" ASA Strike2-3/4" T-Strike
Usage

Medium Duty
Warranty

10 Year Limited
