Product Overview

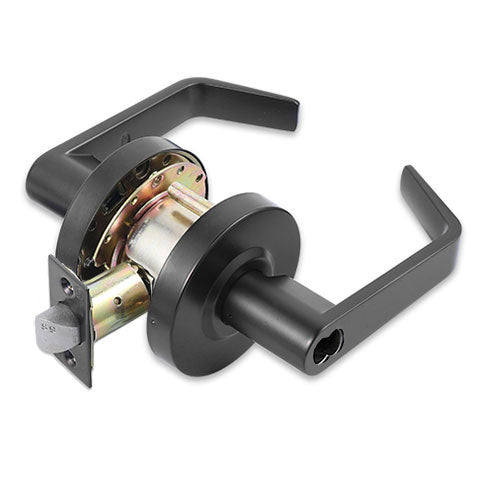

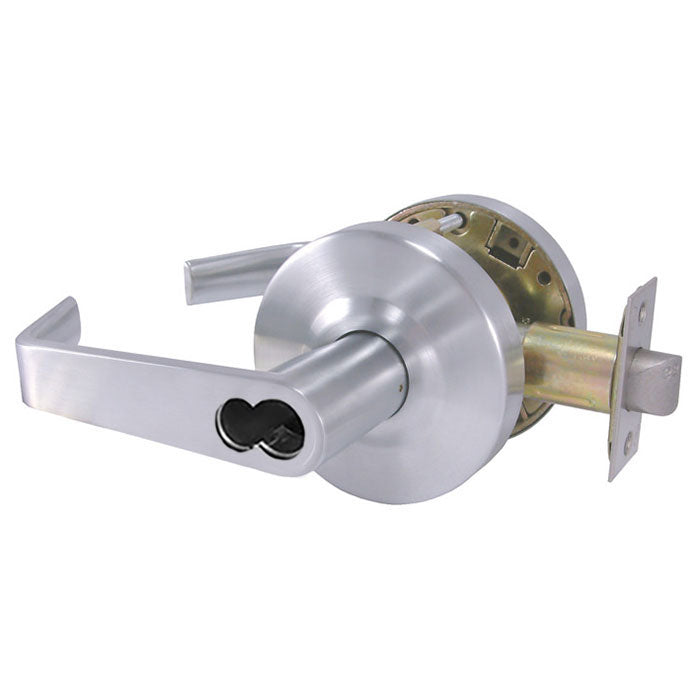

Design Hardware X-86IC-F Lever Lockset, Storeroom Function, Heavy-Duty Grade-1, (F) Flat Lever Design, Small Format Interchangeable Core Prep
X-86 Storeroom – ANSI Function F86 – Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.
- SFIC = Small Format Interchangeable Core (Core Sold Separately)
- Clutching levers standard for Vandal resistance on locking functions
- Factory Set for 1-3/4" thick doors – can be adjusted to fit 1-3/8" to 2" thick doors
- Best for medium to high traffic
- Designed for fast and easy installation
Specifications
- Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
- Trim: 5″ Solid zinc diecast levers, 3-3/8″ wrought brass roses
- Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
- 2-3/4″ backset std. with 1-1/8″ x 2-1/4″ latchface
- Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
| Brand |
Design Hardware |
|---|---|
| Finishes |
US10B (613) Oil Rubbed Bronze, US19 Matte Black, US26D (626) Satin Chrome |
| Usage |
Heavy Duty |
| Lock Function |
Storeroom |
| ANSI Grade |
Meets ANSI - A156.2, Series 4000, Grade 1 Standards |
| Fire Rating |
UL Listed for “A” Label 3 Hour Fire Doors |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Backset |
2-3/4" |
| Latch |
1/2" throw - 1" x 2-1/4" face |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing |
Non Handed – Completely Reversible |
| Lever Design |
F - Flat |
| Fasteners |
Combination screws for wood or metal doors & frames |
