Product Overview

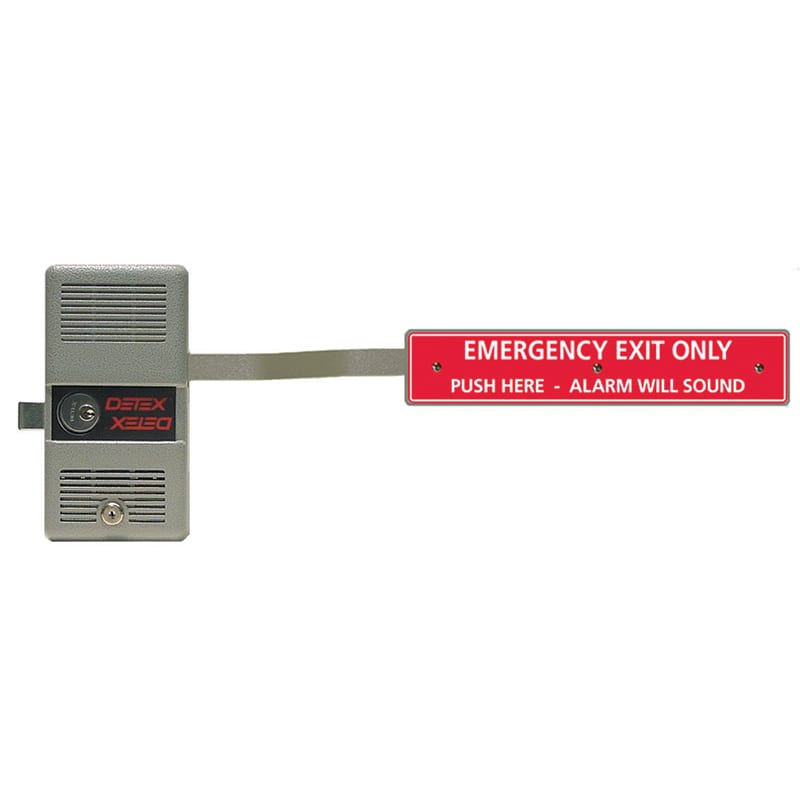

Detex ECL-230D-PH UL-Listed Panic Hardware Exit Control Lock, with Long Bar, 38 In. to 48 In. Door Width
The ECL-230-PH is a code compliant, battery alarmed, rugged dead bolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.
- ECL-230D-PH for use on doors that require Panic Hardware
- Minimum standard door width for ECL-230D-PH is 34"
- Single point deadbolt locking device, 1” throw
- Unauthorized pressing of exit bar emits high decibel, 100db alarm
- Inside key control allows alarm bypass
- UL listed panic hardware
- 9 volt standard battery included
- Rim Cylinder Required (sold separately)
| Brand |
Detex |
|---|---|
| Cylinder |
1-1/8" Rim Cylinder (Sold Separately) |
| Deadbolt |
Single point - 1" throw saw resistant |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
GrayBlack |
| Handing |
Non-Handed |
