Detex

Detex VRA-143 Vertical Rod Assembly for ECL-230D Exit Control Lock

$399.25
This item ships FREE! Usually Ships:  1-2 Business Days
  • Used with Detex ECL-230D
  • 2 point locking provides extra security
  • Surface applied – no mortise required for easy installation

Available Options:

Clear

Product Overview

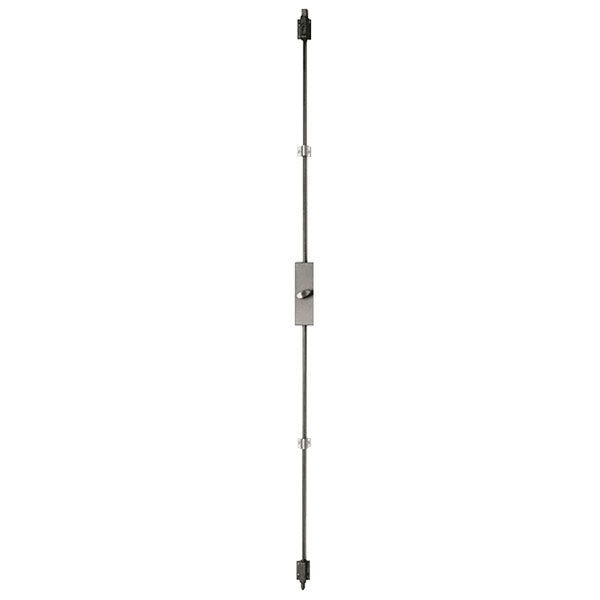

Detex VRA-143 Vertical Rod Assembly for ECL-230D Exit Control Lock

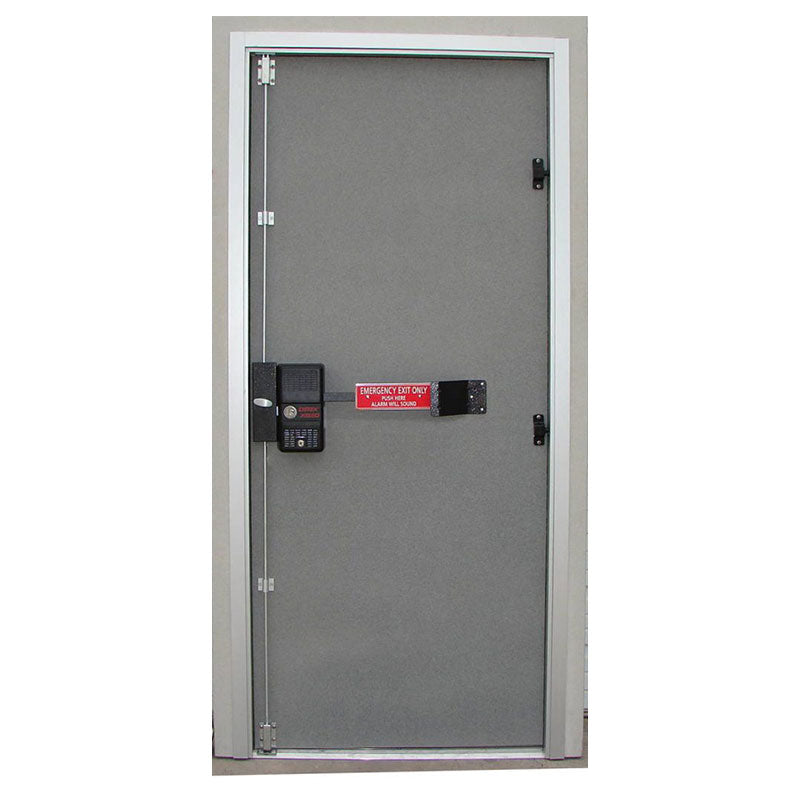

A Vertical Rod Assembly (VRA) is used with a Detex Exit Control Lock (ECL-230D) to provide exit control security on an outswinging double door. In addition, it may be used on a single door installation to provide top and bottom latching instead of the single point latching provided by the Exit Control Lock itself.

Features

  • 2 point locking provides extra security
  • 3 versions to suit most conditions
  • Surface applied – no mortise required for easy installation
  • Automatically released when the ECL-230 device is activated
  • Heavy duty 3/8” diameter bolts
  • Rods - steel, zinc plated
  • Non-handed
  • U.L. Listed Exit Hardware

Models

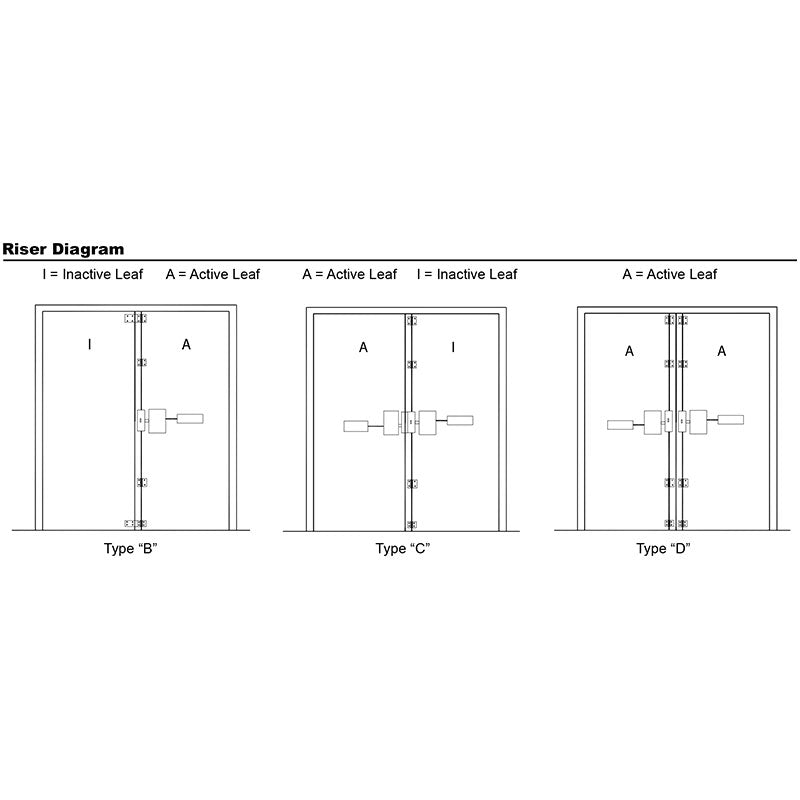

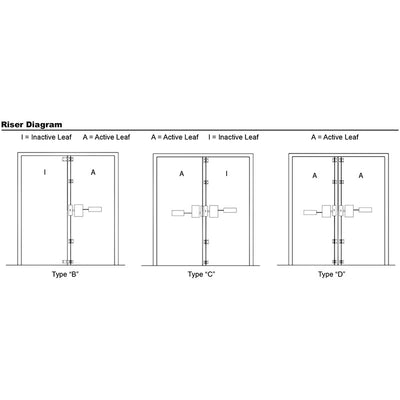

  • Type B - VRA-143B secures a single or a pair of doors with one ECL-230D Series Lock, allowing outside access to the active door
  • Type C - VRA-143C assemblies hold a pair of doors with 2 ECL-230D Series locks, allowing outside access to the active door
  • Type D - VRA-143D assemblies hold a pair of doors with 2 ECL-230D series locks & permit independent operation of each leaf
Brand

Detex
Door Height

96"84"
Model

Type B - VRA-143BType D - VRA-143DType C - VRA-143C
