Doormerica

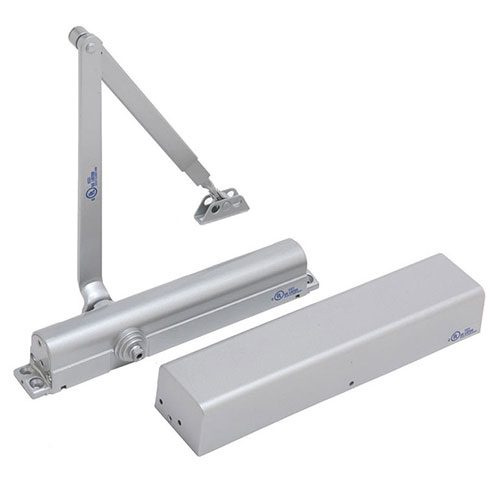

Doormerica DC851DA Delayed Action Door Closer

$87.28
Usually Ships:  2-3 Business Days
  • ANSI A 156.4 Grade 1
  • With delayed action, Non-handed
  • Allows slow-moving traffic to clear before the normal closing cycle begins

Available Options:

Clear

Product Overview

Doormerica DC851DA Grade-1 Door Closer, Delayed Action, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover, Barrier Free

Doormerica offers quality hardware for commercial applications at an affordable price.

  • Delays closing from 120° to 70°ƒ
  • Delay time adjustable up to approximately 1 minute
  • Same hole pattern as Norton 8301/8501
  • Tri-Pack with regular, parallel, and top-jamb mounting
  • Standard Spring adjustment Size BF-6
  • Non-handed
  • Standard with adjustable sweep, latch, and backcheck
  • Full plastic cover
  • SNB - Sex Nuts and Bolts
  • Limited Lifetime Warranty

Code Compliance

  • ANSI A 156.4 Grade 1
  • UL 1 OC and UBC 7.2 for positive pressure
  • ANSI A 117.1 and ADA for barrier-free accessibility C-UBC
  • California Amended Uniform Builders Code -2001
  • California State Fire Marshall (CSFM) approved
  • ADA compliant

codes

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards
Body Construction

Cast Aluminum Body
Brand

Doormerica
Cover

Full Cover
Door Applications

Hollow Metal Wood or Aluminum
Finish

Aluminum
Finishes

689 Aluminum
Fire Rating

UL10C and UBC 7.2 for positive pressure
Handing

Non-Handed
Mounting Options

Regular (Pull Side)Top Jamb (Push Side)Parallel Arm (Push Side)
Special Feature

Delayed Action
Spring Size

Adjustable Spring Size 1-6
Templating (Hole Pattern)

3/4" x 12"
Usage

Medium Duty
Warranty

Limited Lifetime Warranty
