Product Overview

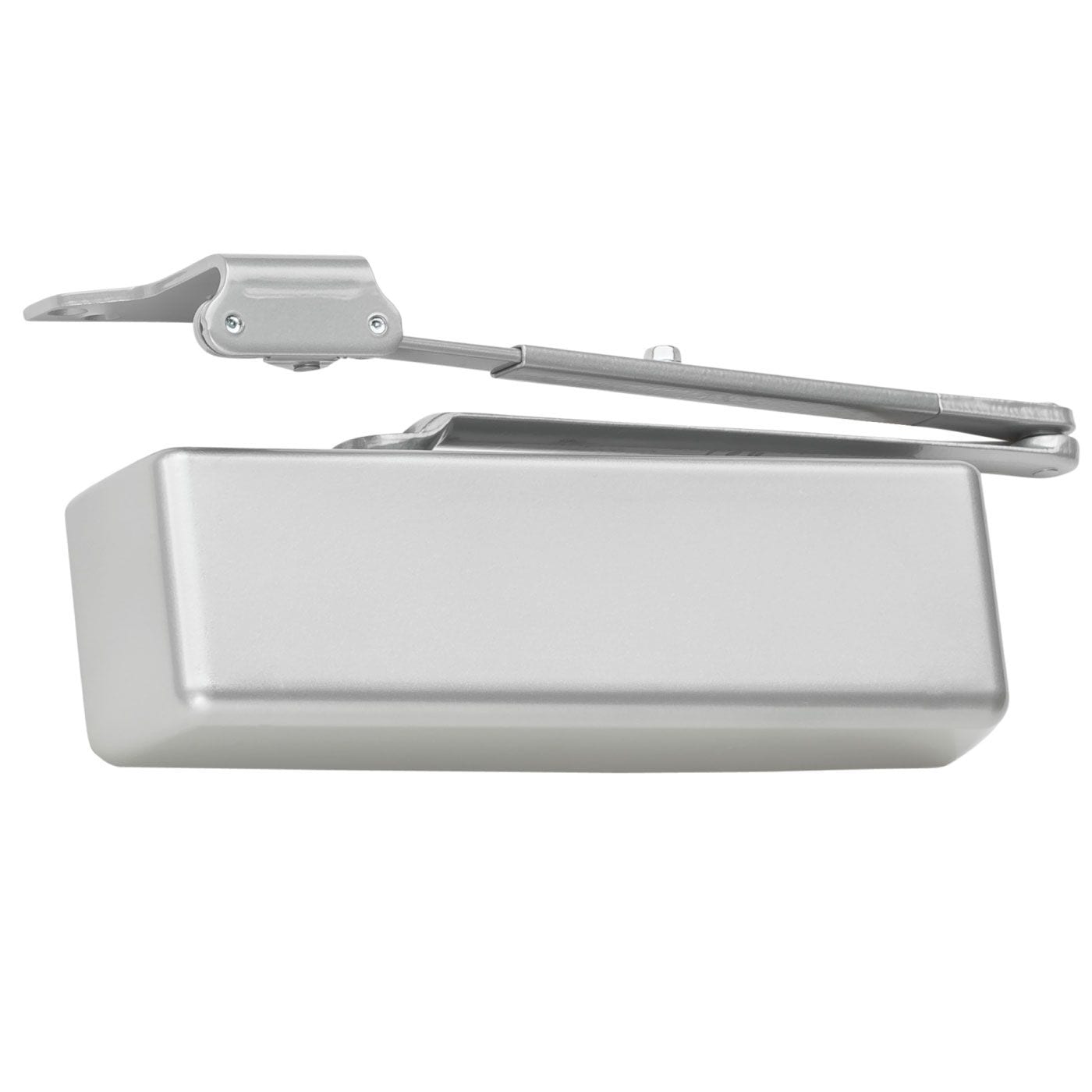

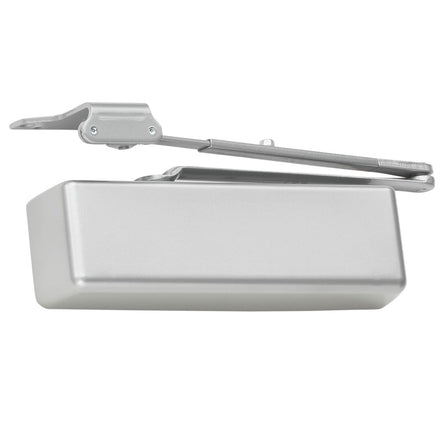

LCN 4041 RWPA DEL, Heavy Duty Grade-1 Door Closer with Delayed Action
Delayed Action closing allows slow-moving traffic to clear the opening before the door closer’s normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes.
- Incorporates standard 4041-3071 DEL cylinder
- Delays closing from 120° to 70°
- Delay time adjustable up to approximately 1 minute

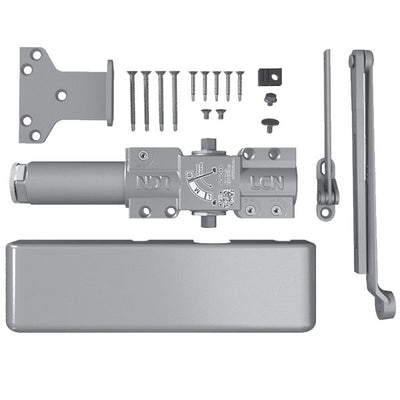

- Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting

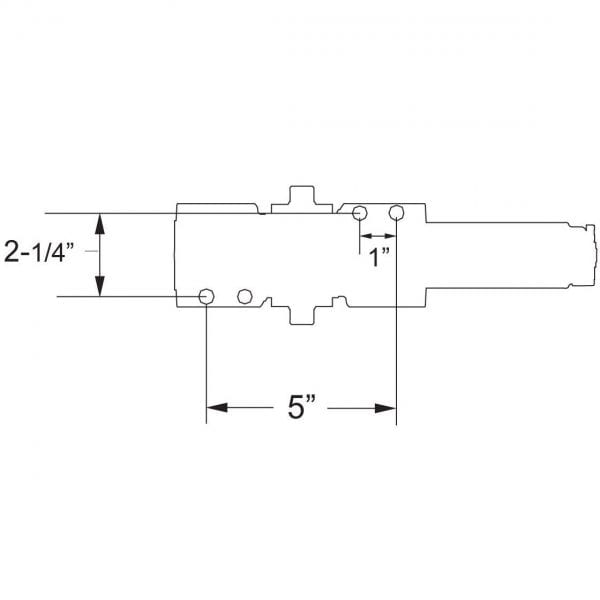

- Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern
| Body Construction |
Cast Iron Body |
|---|---|
| Brand |
LCN |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Certifications |
Tested and certified under ANSI Standard A156.4 - Grade-1 |
| Cover |
Full Cover |
| Door Application |
Hollow Metal or Wood |
| Fasteners |
Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT) Machine Screws Wood Screws and Thru Bolts |
| Finish |
AluminumDark BronzeLight BronzeBrassBlack |
| Finishes |
695 Dark Bronze691 Light Bronze693 Black696 Brass689 Aluminum |
| Fire Rating |
UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms) |
| Fluid |
All Weather Liquid X Fluid |
| Handing |
Non-Handed |

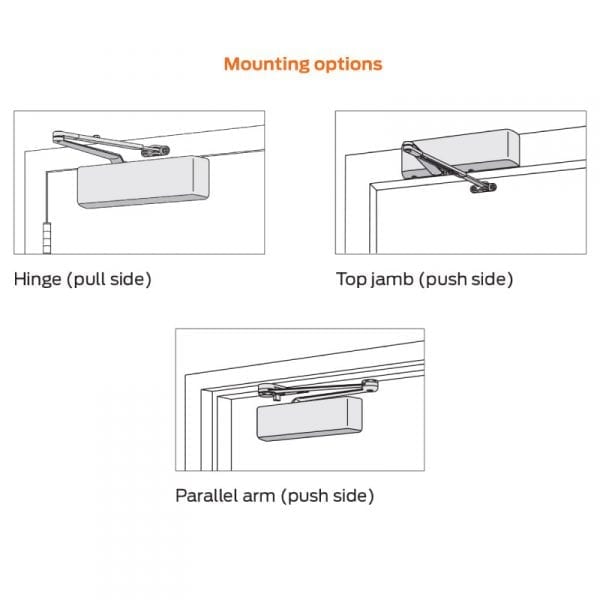

| Mounting Options |
Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side) |
| Special Feature |
Delayed Action |
| Spring Size |
Adjustable Spring Size 1-6 |
| Templating (Hole Pattern) |
2-1/4" x 5" |
| Usage |
Heavy Duty |
| Warranty |
30 Years |
