LCN

LCN 1461 Rw/PA DEL Delayed Action Door Closer

$320.07
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.4 Grade 1 Certified, Made in USA
  • Incorporates delay action cylinder
  • Allows slow-moving traffic to clear before the normal closing cycle begins

Available Options:

Clear

Product Overview

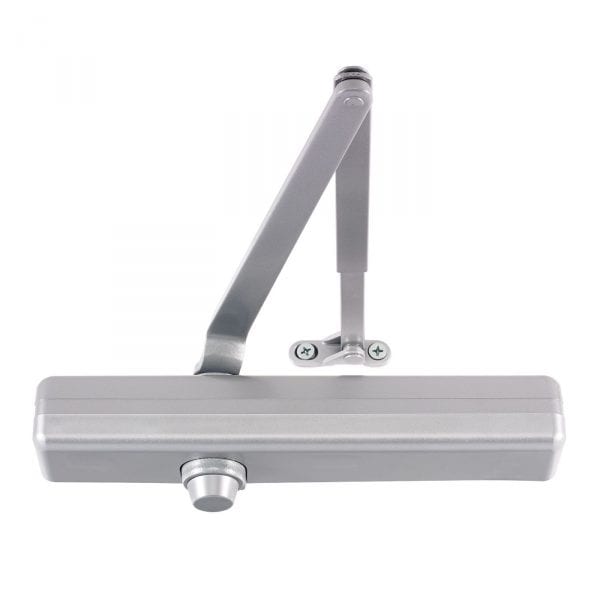

LCN 1461-RW/PA AL DEL Regular Arm w/62PA Shoe Door Closer, Delayed Action

Delayed Action closing allows slow-moving traffic to clear the opening before the door closer’s normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes.

  • Incorporates delay action cylinder (CYLDEL)
  • Delays closing from 110° to 75° or 180° to 95° depending on templating (mounting method)
  • Delay time adjustable up to approximately 1 minute
  • Universal non-handed

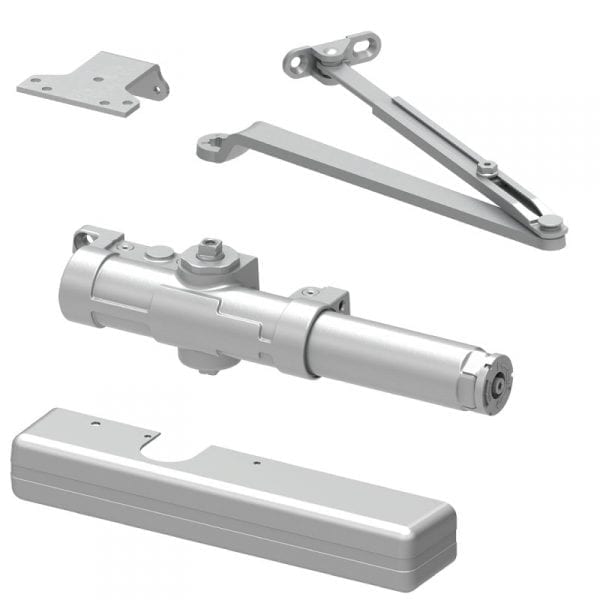

  • Tri-packed – Regular arm with parallel arm shoe (regular, top jamb, or parallel mount)
  • Peel-n-stick template and standard slim line plastic cover
  • Non-sized (1-6) cylinder is adjustable for interior doors to 5’0″ and exterior doors to 4’0″

Body Construction

Cast Iron Body
Brand

LCN
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Certifications

Grade 1 - ANSI A156.4 UL 10C ADA 100 Hour Salt Spray Meets BAA - Buy American Act
Cover

Slim Cover Standard (Full Cover Optional)
Cover Type

Full CoverStandard Slim Cover
Door Application

Hollow Metal Wood or Aluminum
Fasteners

Self Reaming and Tapping Screws (SRT)
Finish

Dark BronzeLight BronzeBrassBlackAluminum
Finishes

696 Brass689 Aluminum695 Dark Bronze691 Light Bronze693 Black
Fire Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
Fluid

All Weather Fluid
Handing

Non-Handed

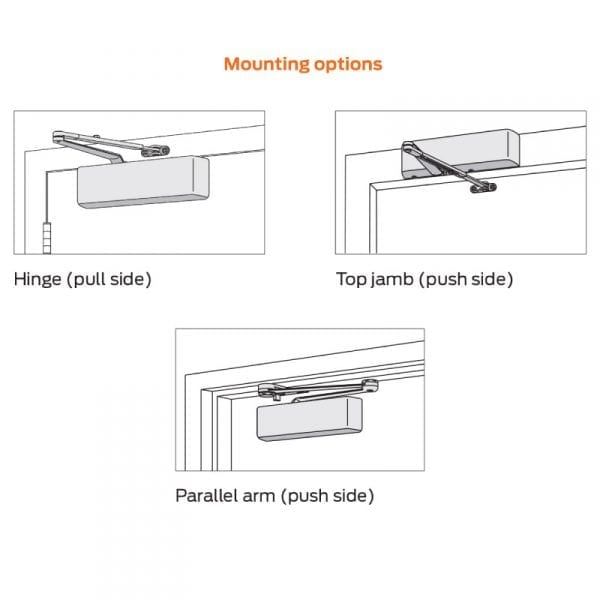

Mounting Options

Top Jamb (Push Side)Parallel Arm (Push Side)Regular (Pull Side)
Special Feature

Delayed Action
Spring Size

Adjustable Spring Size 1-6

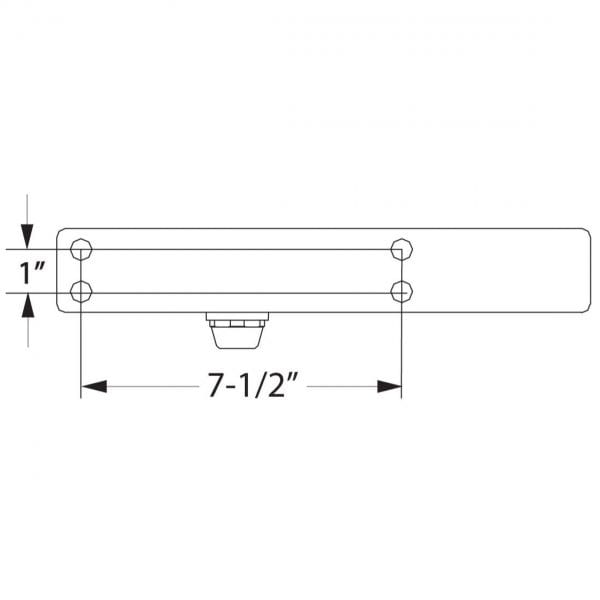

Templating (Hole Pattern)

1" x 7-1/2"
Usage

Medium Duty
Warranty

30 Years
LCN_1461_Series_P LCN_1461_Pull_Side__Top_Jamb_Closer_110__180__Mount_Installation_Instructions_105729 How to Install Von Duprin 98/99 Rim Exit Device
