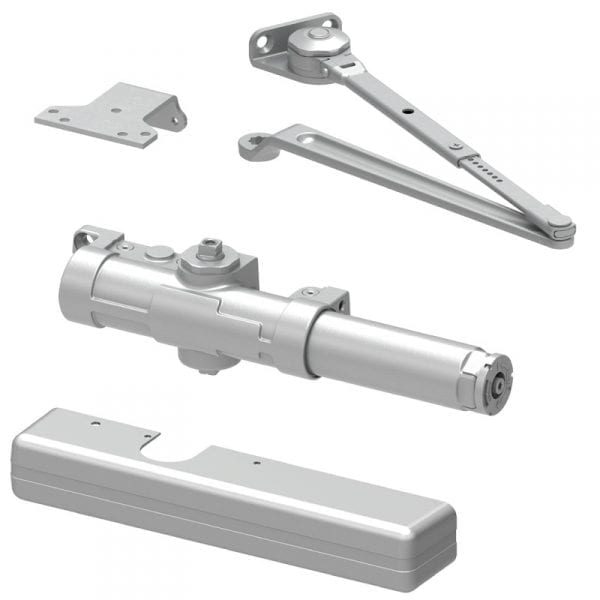

LCN 1461 HWPA Grade-1 Door Closer, Hold Open Arm with Parallel Bracket

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-1/4" diameter piston
  • Heat-treated steel pinion journal

Arm

  • Non-handed
  • Mounts hinge side, top jamb or parallel arm
  • Friction type hold-open adjustable at shoe

Quality and durability

  • All-weather fluid
  • LCN patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Universal non-handed
  • Peel-n-stick template and standard slim line plastic cover
  • Adjustable spring sizes 1-6





Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 - Dark Bronze
  • BLK, BHMA 693 - Black
  • BRASS, BHMA 696 - Brass
  • LTBRZ, BHMA 691 - Light Bronze

Models: 1461.CYL.HWPA.689.SLIMPC.TBSRT, 1461.CYL.HWPA.689.FPC.TBSR, 1461.CYL.HWPA.695.SLIMPC.TBSRT, 1461.CYL.HWPA.695.FPC.TBSRT, 1461.CYL.HWPA.693.SLIMPC.TBSRT, 1461.CYL.HWPA.693.FPC.TBSRT, 1461.CYL.HWPA.696.SLIMPC.TBSRT, 1461.CYL.HWPA.696.FPC.TBSRT, 1461.CYL.HWPA.691.SLIMPC.TBSRT, 1461.CYL.HWPA.691.FPC.TBSRT

Body Construction

Cast Iron Body

Brand

LCN

Buy American Act Compliance

Meets Buy Amercian Act - Made in USA

Certifications

Grade 1 - ANSI A156.4 UL 10C ADA 100 Hour Salt Spray Meets BAA - Buy American Act

Cover

Slim Cover Standard (Full Cover Optional)

Cover Type

Standard Slim CoverFull Cover

Door Application

Hollow Metal or Wood

Fasteners

Self Reaming and Tapping Screws (SRT)

Finish

Dark BronzeBrassBlackLight BronzeAluminum

Finishes

696 Brass689 Aluminum695 Dark Bronze691 Light Bronze693 Black

Fire Rating

Non-Rated with Hold Open Arm

Fluid

All Weather Fluid

Handing

Non-Handed

Mounting Options

Top Jamb (Push Side)Parallel Arm (Push Side)Regular (Pull Side)

Spring Size

Adjustable Spring Size 1-6

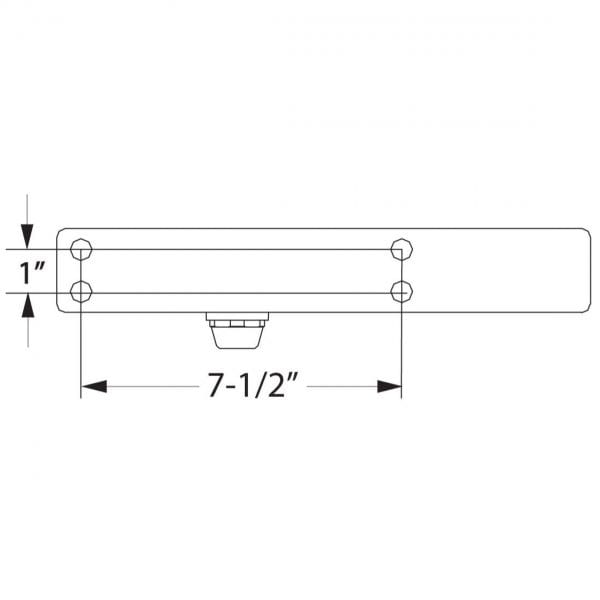

Templating (Hole Pattern)

1" x 7-1/2"

Usage

Medium Duty

Warranty

30 Years
