Dormakaba DP86 Drop Plate

$24.08
Usually Ships:  1-2 Business Days
  • For 8600 and 7000 Series closers
  • Powder coated finishes
  • Non-handed

Available Options:

Clear

Product Overview

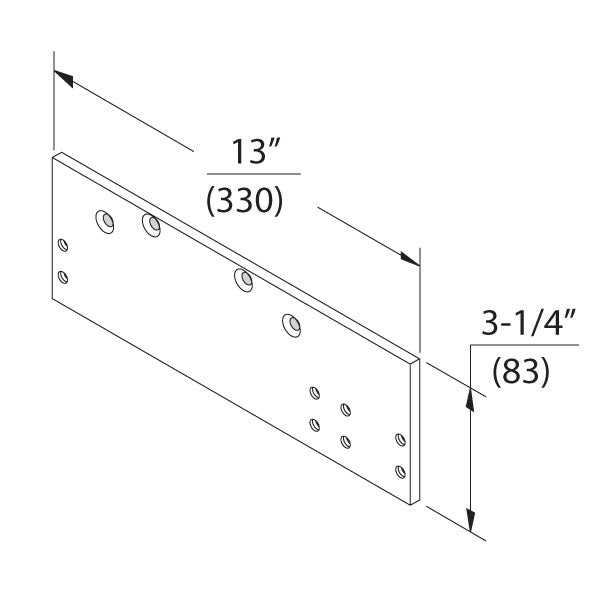

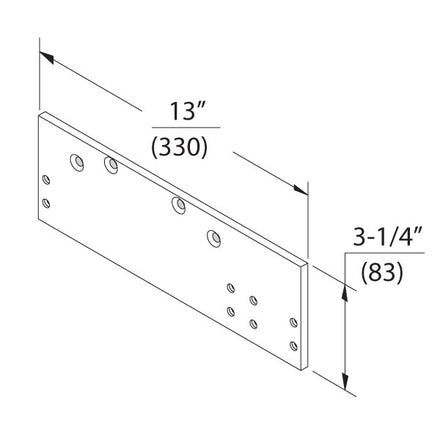

Dormakaba DP86 Drop Plate

Compatible with 8600 and 7000 Series closers

8600 Series: For top jamb mount of 8600 Series closers with COV, FC, FCSL, or FMC when overhead ceiling clearance is less than 1-7/8" (48 mm) or to provide clearance for a surface- applied stop/holder. Permits parallel arm installation with a minimum top door rail of 2-1/2" (64 mm) for non-hold open, 2-5/8" (67 mm) for friction, fusible link and plunger hold open applications (assuming 5/8" [16 mm] stop dimension).

7000 Series: For top jamb mount with slim plastic cover to clear a surface applied stop/holder. Overhead ceiling clearance must be 1-3/4" (44 mm) or more. Permits parallel arm installation with minimum top door rail of 2-1/2" (64 mm) for non-hold open, 2-3/4" (70 mm) for friction hold open applications (assuming 5/8" [16 mm] stop dimension).

Brand

Dormakaba
Finish

Dark BronzeBlackAluminum
Finishes

695 Dark Bronze693 Black689 Aluminum
Part Type

Drop Plate
