Product Overview

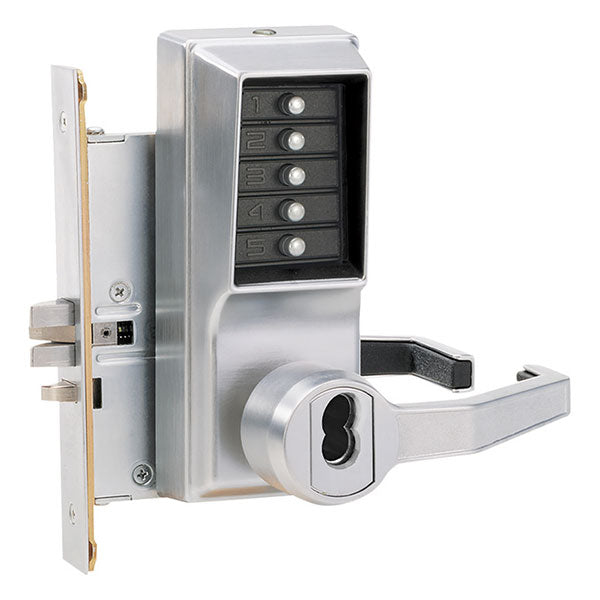

Simplex 8146_ Mechanical Combination Pushbutton Mortise Lever Lock, Key Override, Entry/Passage, Lockout, Interchangeable Core Prep
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 8100 Mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination, while allowing free egress.

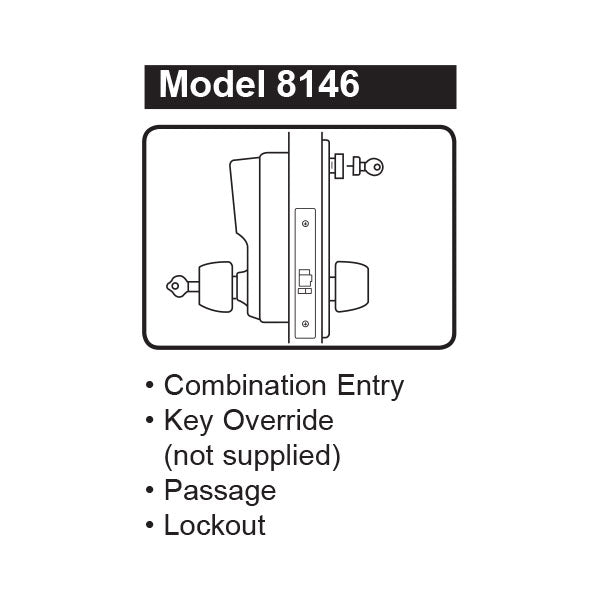

8146: Combination Entry. Key Override (core not included). Passage. Lockout.
- A cost-effective access control solution
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing lock from the door
- Cast front housing; unified trim plate; fixed ADA—compliant levers
- Vandal-resistant, solid metal pushbuttons
- Factory-handed; not field reversible
- 5" Minimum stile recommended
- 3-hour UL/ULC fire rating for “A” labeled doors
- Weather resistant
Key Override Options
- B - Prepped for 6 or 7 pin SFIC (less core)
- C - Prepped for Corbin Russwin 6-Pin LFIC (less core)
- M - Prepped for Medeco/Yale/ASSA/Abloy LFIC (less core)
- R - Prepped for Sargent LFIC (less core)
- S - Prepped for Schlage FSIC, less core (Schlage large format-removable core sold separately)
Models: L8146B-26D-41, LR8146B-26D-41, R8146B-26D-41, RR8146B-26D-41, L8146C-26D-41, LR8146C-26D-41, R8146C-26D-41, RR8146C-26D-41, L8146M-26D-41, LR8146M-26D-41, R8146M-26D-41, RR8146M-26D-41, L8146R-26D-41, LR8146R-26D-41, R8146R-26D-41, RR8146R-26D-41, L8146S-26D-41, LR8146S-26D-41, R8146S-26D-41, RR8146S-26D-41
| Backset |
2-3/4" |
|---|---|
| Brand |
Dormakaba |
| Cylinder Format |
Small Format Interchangeable Core (SFIC)Full Size Interchangeable Core (FSIC) |
| Door Thickness |
1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Fire Rating |
UL and cUL Listed – up to 3 Hours |
| Hand |
RHR (Right Hand Reverse)RH (Right Hand)LHR (Left Hand Reverse)LH (Left Hand) |
| Handing |
Handed |
| Key Override |
Medeco/Yale/ASSA/Abloy LFIC Prep |
| Latch |
3/4" two-piece anti-friction latch |
| Lock Function |
Combination Entry/Passage Function with Key Override |
| Lock Type |
Mortise Lock |
| Strike |
4⅞" L x 1¼" W x ¼" D Deadbolt/Latch mortise strike plate |
| Usage |
Heavy Duty |
| Warranty |
3 Year Limited |
