Falcon

Falcon K101S DANE Heavy Duty Passage Lever

$127.10
Usually Ships:  1-2 Business Days
  • Discontinued November 2024 - available while supplies last
  • Passage – Both Sides Always Unlocked
  • ADA Compliant, 3-Hour Fire-Rated

Available Options:

Clear

Product Overview

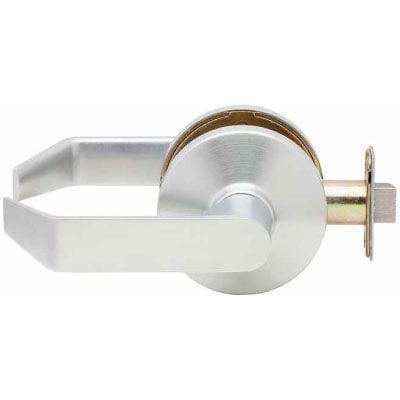

Falcon K101S Grade 1 Passage/Closet Cylindrical Lock, Non-keyed, Dane Lever

High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

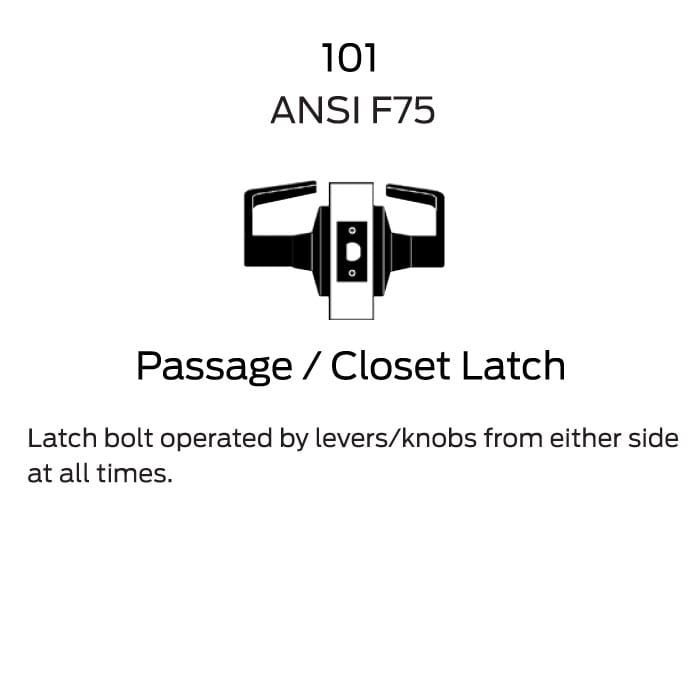

ANSI Function F75 - Latch bolt by levers at all times.

  • Four through bolts for added strength
  • Lever security caps to help prevent undesired lever removal and lever sag after continual use
  • Manufactured to Allegion’s industry-leading quality standards
ANSI/BHMA Standard

Meets ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Falcon
Door Thickness

1-3/4" to 2-1/4"
Finish

Satin ChromeDark Bronze
Finishes

626 Satin Chrome613 Oil Rubbed Bronze
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face

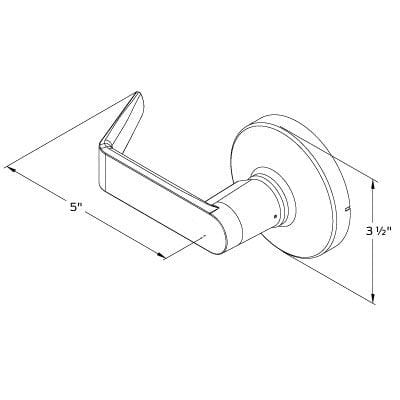

Lever Design

D (Dane)
Lock Function

Passage
Screws

Furnished with combination screws for use in wood or metal doors and frames.
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
Falcon_K_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
