Hager 3453 WTN Entry Lever Lock

$182.82

Usually Ships: 1-2 Business Days

Extra Heavy Duty, BHMA/ANSI Certified Grade 1
ANSI Function: F109
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

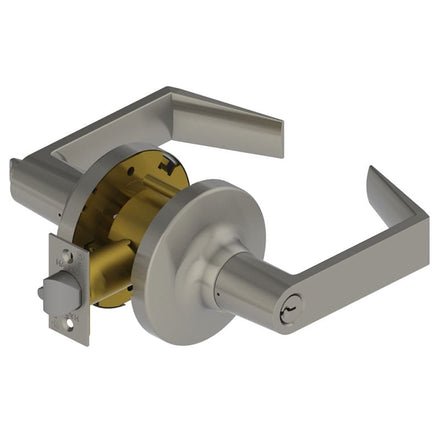

Hager 3453 Entry Lever Lock, WTH Withnell Lever Design

Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.

Hager 3453 Entry Function (ANSI F109) - Deadlocking latchbolt by lever either side, except when turn button inside locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free.

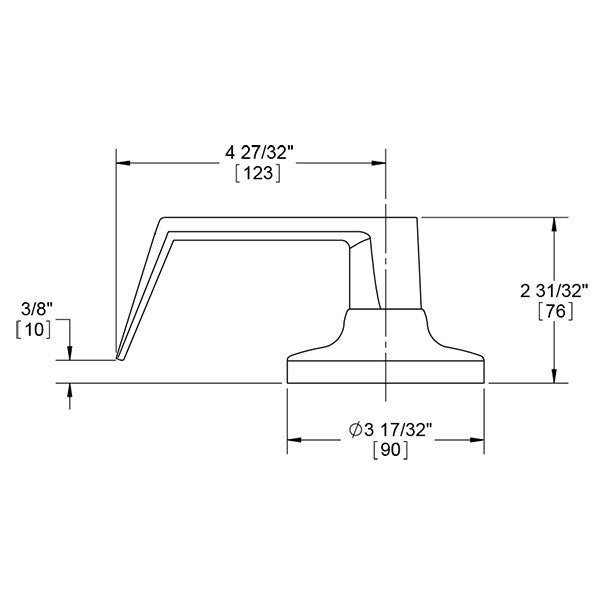

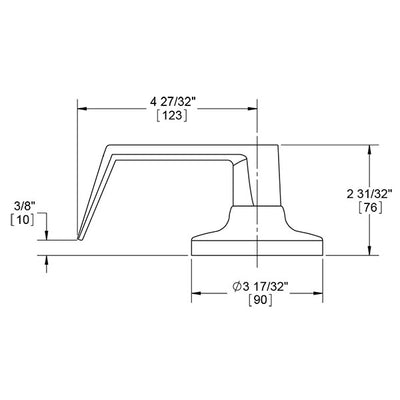

WTN - Withnell lever design
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

ANSI Grade	BHMA Certified ANSI A156.2 Series 4000 Grade 1
Backset	2-3/4"
Brand	Hager
Cylinder Format	Conventional
Cylinder & Keys	6-pin conventional keyed different with 2 keys
Door Thickness	1-3/8" to 1-3/4"
Finish	BlackSatin Chrome
Finishes	US26D (626) Satin ChromeBLK - Matte Black
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Keyway	Schlage C Keyway
Latch	1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design	WTN (Withnell)
Lock Function	Entry (Entrance)
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Heavy Duty
Warranty	Limited Lifetime Warranty
