Hager 3480 WTN Storeroom Lever Lock

$182.82

Usually Ships: 3-5 Business Days

Extra Heavy Duty, BHMA/ANSI Certified Grade 1
ANSI Function: F86
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

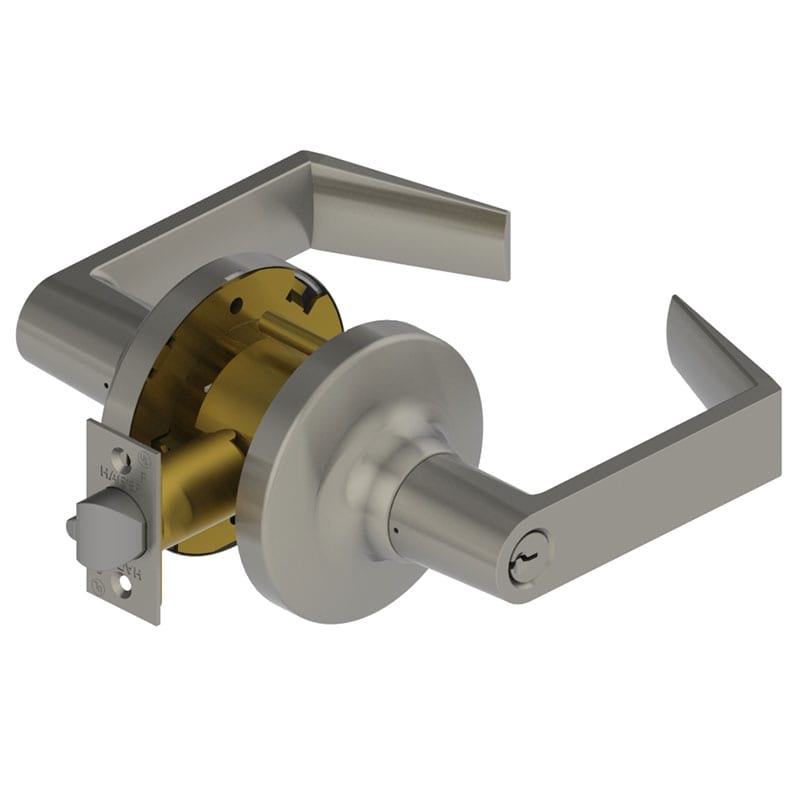

Hager 3480 Storeroom Lever Lock, WTH Withnell Lever Design

Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.

Hager 3480 Storeroom Function (ANSI F86) - Deadlocking latchbolt operated by key in outside lever, or by operating inside lever. Outside lever is always locked. Inside lever is always unlocked.

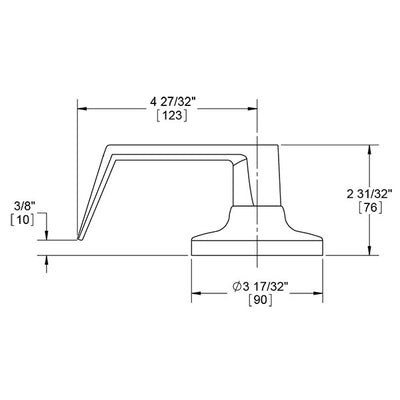

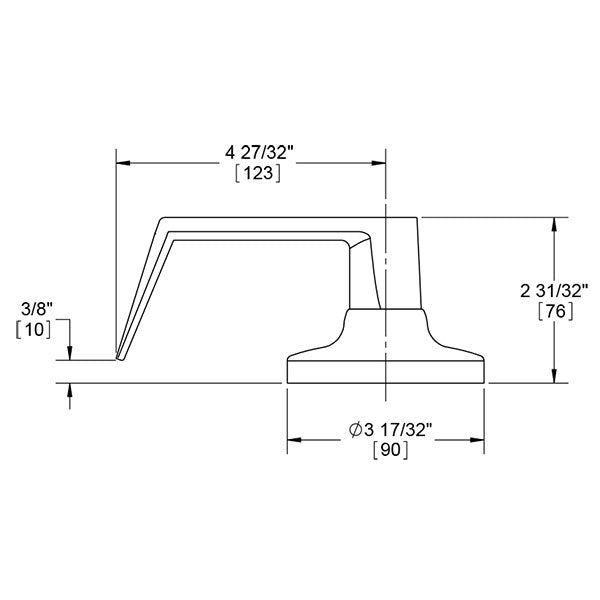

WTN - Withnell lever design
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

ANSI Grade	BHMA Certified ANSI A156.2 Series 4000 Grade 1
Backset	2-3/4"
Brand	Hager
Cylinder Format	Conventional
Cylinder & Keys	6-pin conventional keyed different with 2 keys
Door Thickness	1-3/8" to 1-3/4"
Finish	BlackSatin Chrome
Finishes	US26D (626) Satin ChromeBLK - Matte Black
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Keyway	Schlage C Keyway
Latch	1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design	WTN (Withnell)
Lock Function	Storeroom
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage	Heavy Duty
Warranty	Limited Lifetime Warranty
