Hager

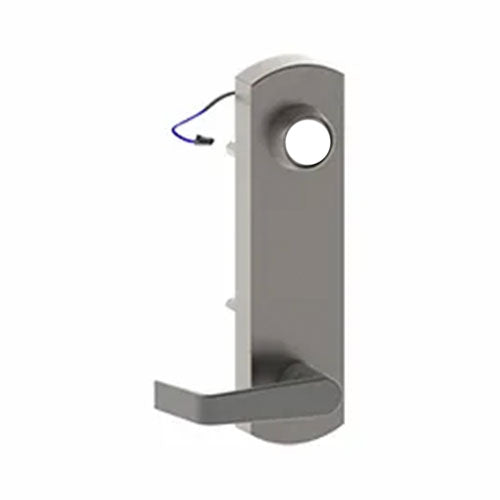

Hager 45ET WTN Motor Driven Electrified Cylinder Escutcheon Lever Trim for 4500 Series Exit Device

$643.48
This item ships FREE! Usually Ships:  3-5 Business Days
  • For use with Hager 4500 Exit Devices
  • Fail-Safe or Fail-Secure Motor Driven (field switchable)
  • Requires mortise cylinder (sold separately)

Available Options:

Clear

Product Overview

Hager 45ET WTN 4500 Series Electrified Exit Trim, Cylinder Escutcheon, Withnell Lever Style, Less Cylinder


For use with Hager 45ET Lever Trim on Rim and Vertical Rod Exit Devices
  • Electrically Locked (Fail Safe) or Electrically Unlocked (Fail Secure) - field switchable
  • Lever Design: WTN Withnell
  • Base Size: 10-3/4″ x 2-3/4″
  • Projection: 2-11/16″
  • Cylinder Type: Mortise cylinder (sold separately)
Electrical Specifications
  • Voltage: 12-24V AC/DC (11V-30V)
  • Current: 250 mA MAX Inrush, 10mA MAX Holding
  • Non-polarized leads
The 45ET is set to Fail Secure when shipped. To change the function between Fail Safe and Fail Secure, move the slider switch. Power must be applied to the trim after the slider switch change is made for it to take effect.
Brand

Hager
Finishes

US26D (626) Satin Chrome
Function

Electrified (EU/EL)
Voltage

12-24V AC/DC (11V-30V)
Lever Design

WTN (Withnell)
Cylinder

Requires mortise cylinder with standard cam (sold separately)
Hand

Field Reversible
ANSI Grade

ANSI/BHMA A156.3-2014 Grade 1
Usage

Heavy Duty
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
