Hager

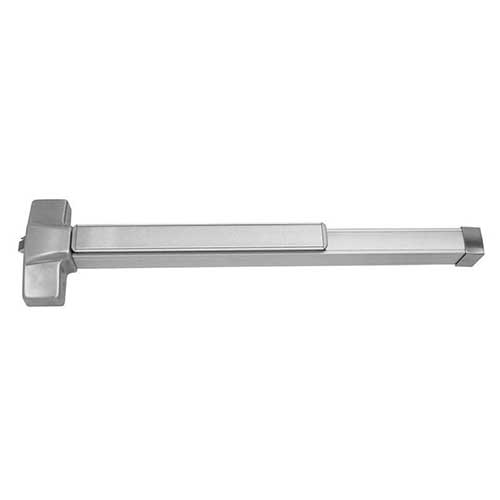

Hager 4501R-F Fire-Rated Rim Exit Device

$503.95
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • UL listed fire exit hardware, 3 hour rated
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

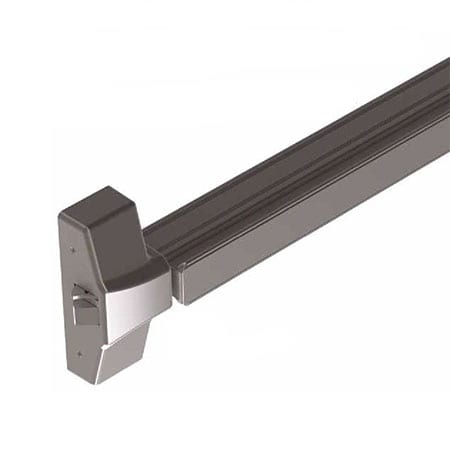

Hager 4500 Series Grade-1 Rim Exit Device, Fire-Rated, Exit Only

Hager 4500 Series Exit Devices are ideal for use in heavy-duty commercial applications including office buildings, medical facilities, schools, and hospitality structures.

The 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.

  • Exit Only Device (Hager Exit Device Trim Sold Separately)
  • BHMA Certified Grade 1 and meets life safety codes
  • UL/cUL Listed for up to 3 hours for "A" label single doors
    - UL10C Positive Pressure Rated
    - UL10B Neutral Pressure Rated
    - Warnock Hersey listed for up to 3 hours with fire-rated removable mullion
  • Complies with ANSI A117.1 for accessible buildings and facilities
ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1
Brand

Hager
Dogging Feature

None
Door Thickness

1-3/4"
Finish

Stainless SteelOil Rubbed BronzeBlackSatin Chrome
Finishes

US32D (630) Satin Stainless SteelBLK BlackUS26D (626) Satin ChromeUS10B (613) Oil Rubbed Bronze
Fire Rating

UL/cUL Listed for up to 3 hours
Latchbolt

3/4” throw pullman type with automatic dead-latching stainless steel

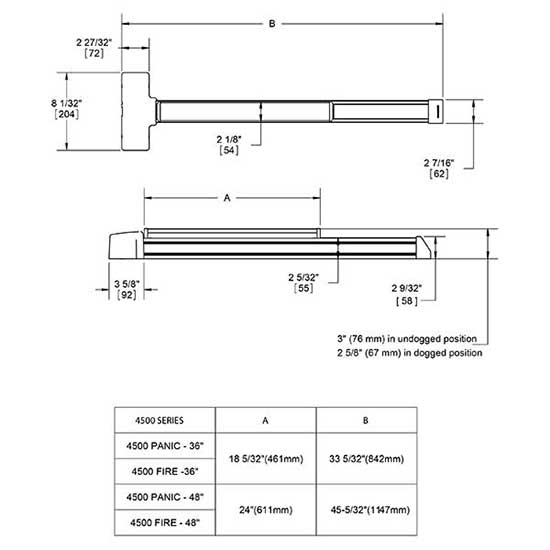

Length

4'0" (3'1" to 4'0" Doors)3'0" (2'6" to 3'0" Doors)
Stile Type

Wide (Standard)
Strike

Stainless steel with roller
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
