Command Access

Command Access MLRK1-HAG Motorized Latch Retraction Kit for Hager 4500/4600 Series Exit Devices

$359.95
This item ships FREE! Usually Ships:  2-3 Business Days
  • Motor-driven electrified latch retraction kit
  • For field installation on exit devices
  • Can upgrade both 36" and 48" devices

Available Options:

Clear

Product Overview

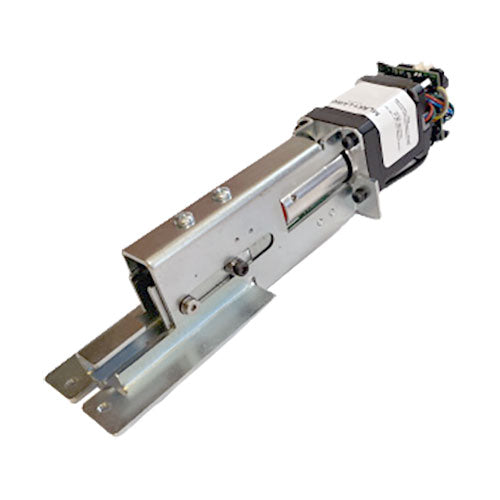

Command Access MLRK1-HAG Motorized Latch Retraction Kit, for Hager 4500/4600 Series Exit Devices (Field Installation)

The MLRK1-AR is a cost-effective and straightforward way to upgrade your Hager 4500 series device to motor-driven latch retraction in the field. UL Listed + 3-Year Warranty.

The MLRK1-HAG is a practical and cost-effective way to convert a mechanical Hager 4500/4600, IDC 8000, LSDA 9000 R/V, PDQ 6200, Stanley QED 1/2000 & Lawrence 8000 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated MM5 module with improved torque & 1 Touch PTS!

  • Works with all Hager 4500/4600, IDC 8000, LSDA 9000 R/V, PDQ 6200, Stanley QED 1/2000 & Lawrence 8000 devices
  • Fast, Quite, Smooth & Strong!
  • Patent pending Push to Set (PTS) Technology
  • Next Generation MM5 Smart Module: Onboard diagnostics
  • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
  • Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
  • UL Listed
  • 3-Year “No Hassle” Warranty

Specifications:

  • Voltage Range – 24 TO 28 VDC
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard - average current peak: 900MA, average current hold: 215MA
  • PTS adjustment - approx. 1/4"
  • Wire Run: 300' with 18ga wire
  • Cutdown details: 36” & 48” - Minimum 8.5” of Filler Plate
  • Built-in (REX) Request-to-Exit kit optional

MLRK1-Codes

Brand

Command Access
Buy American Act Compliance

Meets BAA - Buy American Act
Compatible Devices

Hager 4500/4600 IDC 8000 LSDA 9000 R/V PDQ 6200 Stanley QED 1/2000 & Lawrence 8000 devices
Model

MLRK1-HAG-REX (w/ Request to Exit)MLRK1-HAG
Part Type

Electric Latch Retraction Kit
Warranty

3 Year
