Hager

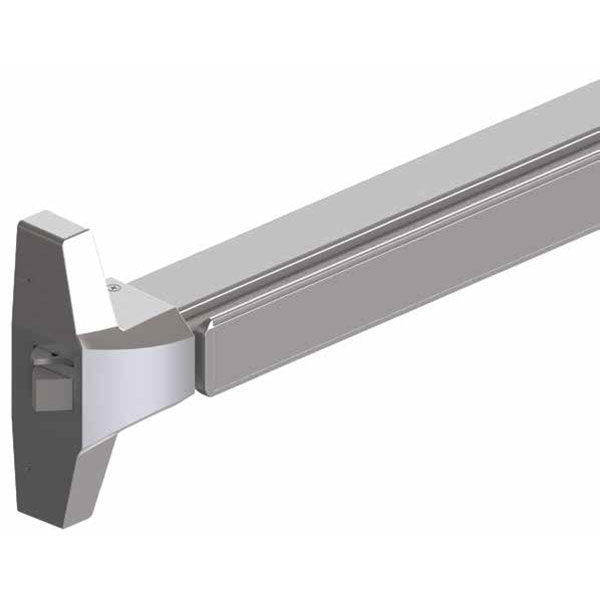

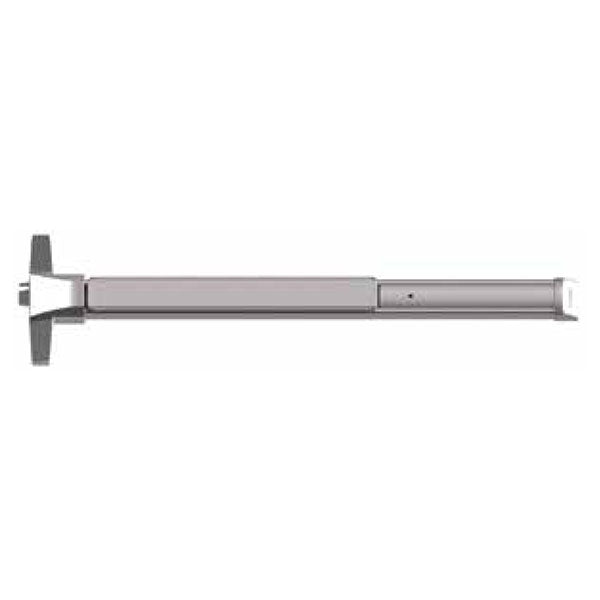

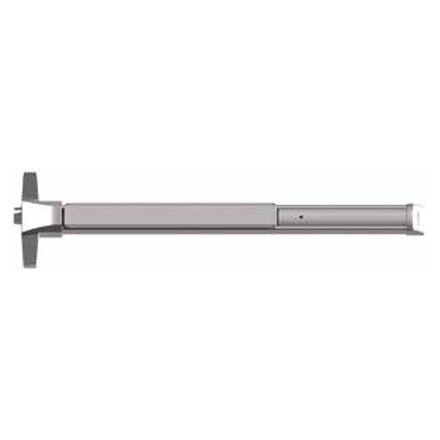

Hager 4601R Narrow Stile Panic Rim Exit Device

$761.72
This item ships FREE! Usually Ships:  3-5 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • UL305 listed for panic hardware
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

Hager 4600 Series Grade-1 Narrow Stile Rim Exit Device, Exit Only

The Hager 4600 Series is designed and engineered to provide a lifetime of superior performance on narrow stile doors (2-inch minimum) in heavy duty commercial applications. The 4600 Series design complements aluminum and glass construction and provides excellent durability for a range of applications.

  • Exit Only Device (Hager Exit Device Trim Sold Separately)
  • BHMA Certified Grade 1 and meets life safety codes
  • UL305 Listed for Panic Hardware
ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1
Brand

Hager
Dogging Feature

Half turn hex dogging standard
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire Rating

None
Latchbolt

3/4” throw pullman type with automatic dead-latching stainless steel
Length

3'0" (2'6" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Stile Type

Narrow
Strike

Stainless steel with roller
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
