Trudoor TDE-F1000R-EO Heavy-Duty Fire-Rated Rim Exit Device, Exit Only

$335.38
This item ships FREE! Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed fire exit hardware, 3 hour rated

Available Options:

Clear

Product Overview

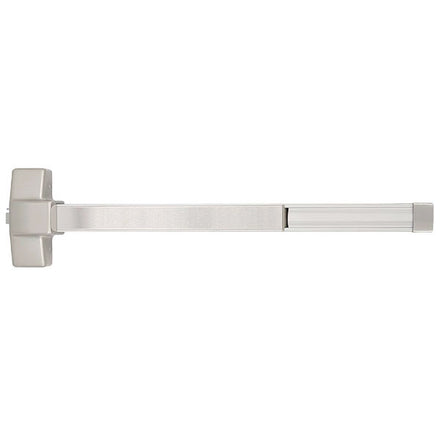

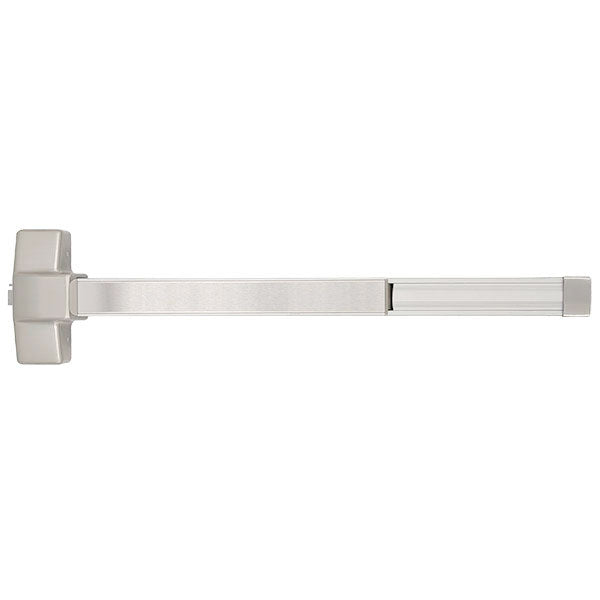

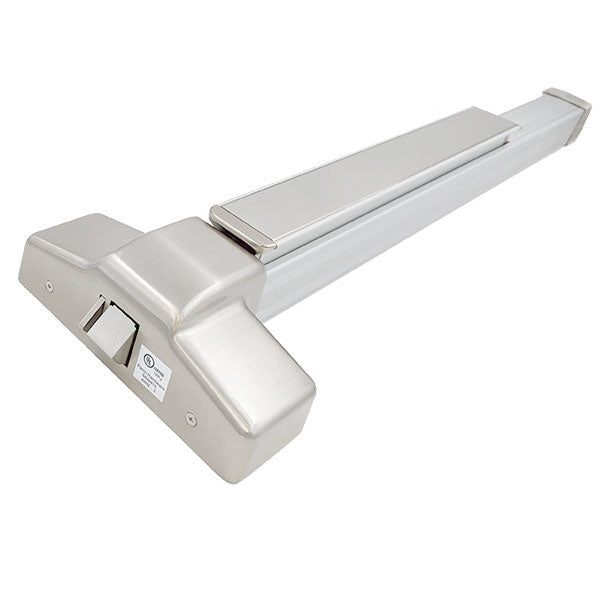

Trudoor TDE-F1000R Heavy-Duty Grade-1 Rim Exit Device, UL Listed, 3 Hour Fire Rated, Exit Only, Satin Stainless Steel

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for panic exit hardware
  • UL Listed fire exit hardware up to 3 hours
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

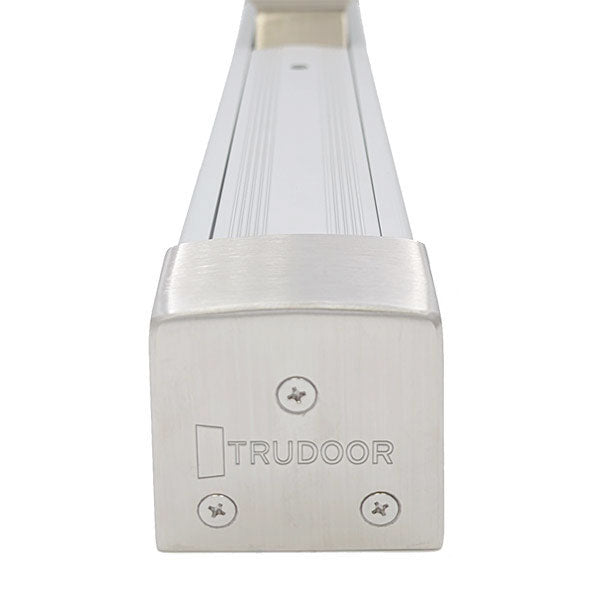

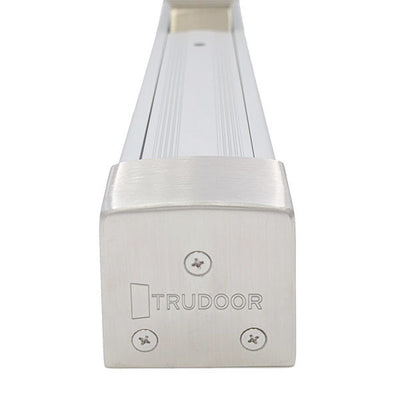

  • Steel chassis, center case cover, push pad, and end cap
  • No dogging feature on fire-rated devices
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation

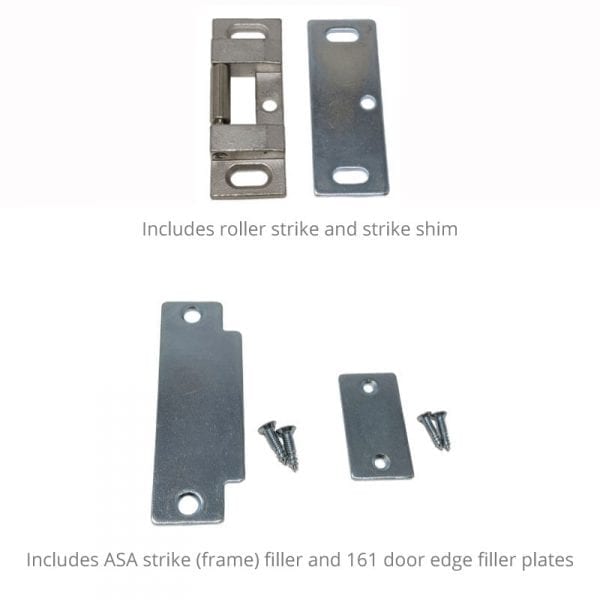

  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ul-listed







Cross Reference

The TDE-1000R can be specified as a substitute for: Cal-Royal F7700 / F9800, Corbin Russwin ED5200A, Design Hardware 1000R, Dorma F9300, Falcon F-25-R, Hager 4501R-F, Marks M9900F, PDQ 6300R-F, Precision FL2100, Sargent 12-8800, Von Duprin 98/99-F, Yale 6100F / 7100F

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Brand

Trudoor
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Dogging Feature

None
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Fire Rating

UL Listed for "A" Label 3 Hour Fire Doors
Handing

Non Handed – Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

4ft (for doors 3'4" to 4'0")3ft (for doors 2'4" to 3'0")
Minimum Stile Width

4-1/2"
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

None - Exit Only (Outside Trim Sold Separately)
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
