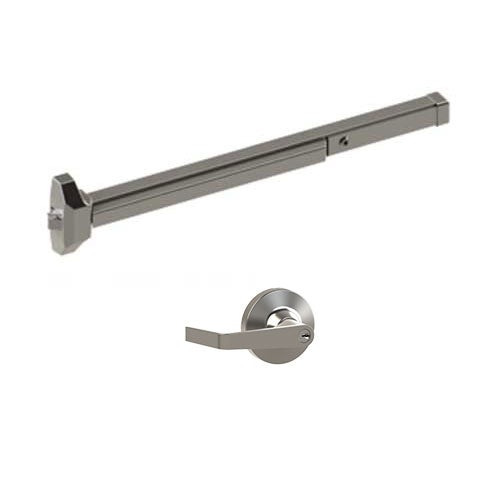

Hager 4701R x 47KE Panic Rim Exit Device with Key-in-Lever Trim

$365.43
This item ships FREE! Usually Ships:  3-5 Business Days
  • Standard Duty, ANSI Grade-1 Certified
  • For use with metal or wood doors
  • Includes 47KE lever trim, key locks/unlocks lever

Available Options:

Clear

Product Overview

Hager 4700 Series Grade-1 Rim Exit Device x 47KE Key In Lever Trim, Schlage C Keyway

The Hager 4700 Series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 Series Exit Devices and Trim are backed by a five-year warranty. Made with superior materials and with dead locking stainless steel latchbolts, the 4700 Series Exit Devices provide necessary security and performance at economy pricing.

Hager 4700 Series Exit Devices are BHMA Certified Grade 1 and meet Life Safety Codes and Fire Requirements.

  • ANSI Function 08, key locks/unlocks
  • Projection:  2-7/16" in undogged position, 1-3/16" in dogged position
  • Stile Width: 4-1/2''- minimum stile width required for single door and 5/8" stop
  • UL305 Listed for panic hardware
  • Fire-rated model: UL/cUL Listed for up to 3 hours for “A” label single doors

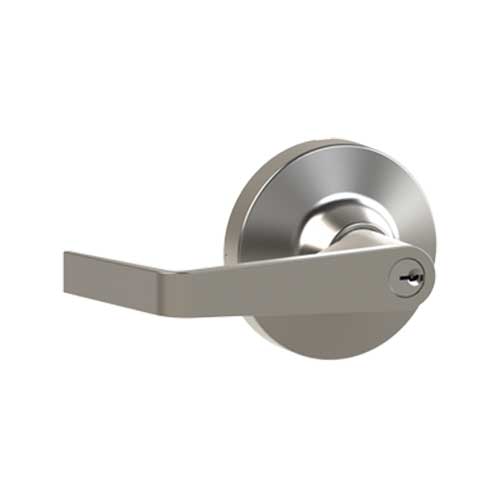

47KE Lever Trim

  • ANSI Function: 08 (Key locks or unlocks lever)
  • Lever Design: WTN Withnell
  • Rose Diameter: 3-3/8″
  • Projection: 3-1/16″
  • Standard Door Prep: 2-1/8″ diameter (cross bore), Turtle Prep compatible ANSI A156.115
ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1
Brand

Hager
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Thickness

1-3/4"
Fasteners

Wood and machine screws Thru-bolts
Finish

Stainless SteelAluminum
Finishes

US32D (630) Satin Stainless Steel689 Aluminum
Fire Rating

4701R-F Model - UL/cUL Listed for up to 3 hours for "A" labeled doors
Keyway

Schlage C Keyway
Latchbolt

5/8" (16 mm) throw pullman type with automatic dead-latching stainless steel
Length

3'0" (2'6" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Model

4701R-F - 3 Hour Fire-Rated Device (No Dogging)4701R w/ Dogging Feature
Stile Type

Wide (Standard)
Strike

Stainless steel with roller
Trim

47KE-WTN
Usage

Light Duty
